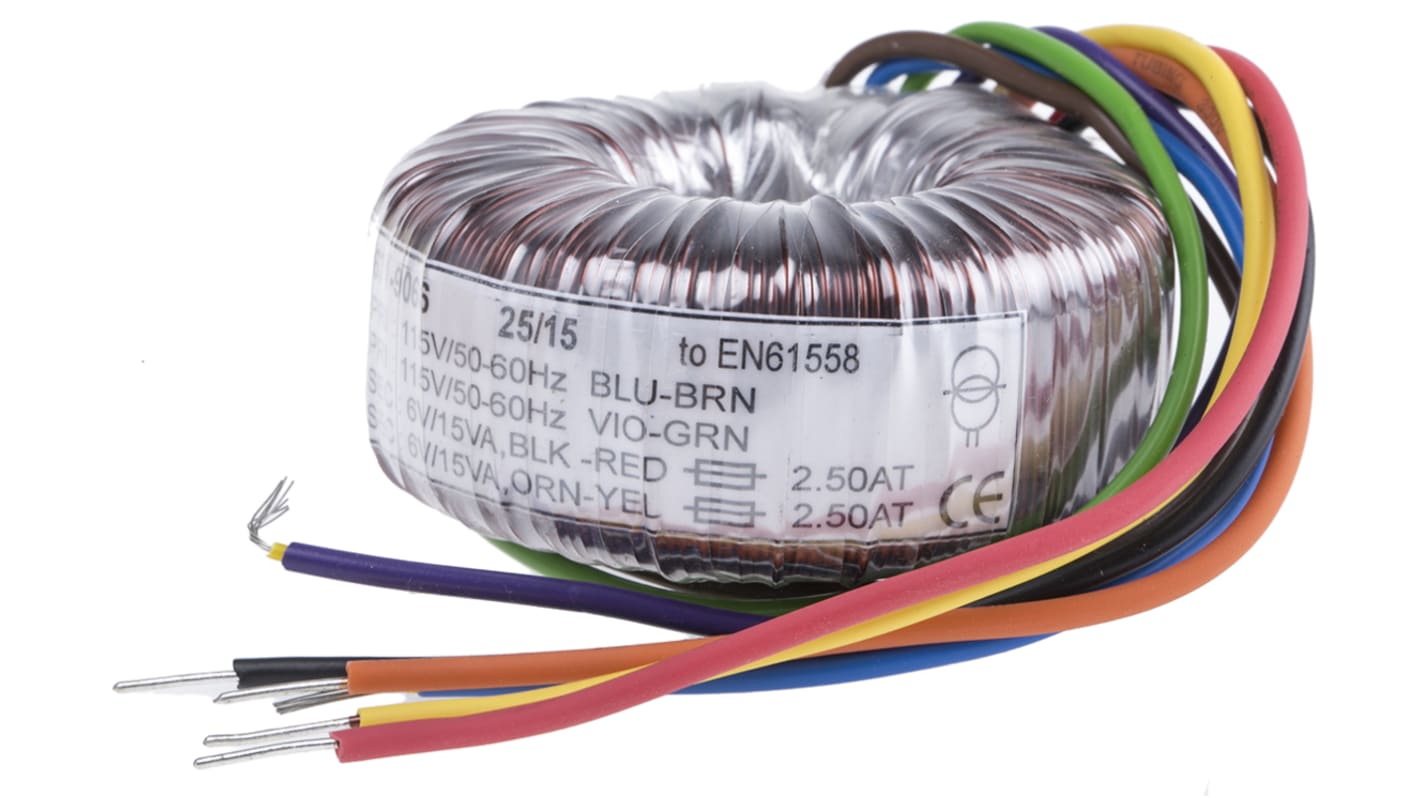

RS PRO 2 x 115 V 2 x 15 V Toroidal Transformer 2 Output 30 VA, EN61558 Class II, IEC61558 Class II, UL506, VDE0570 Class
- RS 제품 번호:
- 671-9066
- 제조업체:
- RS PRO
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩46,718.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 7 | ₩46,718.00 |
| 8 - 39 | ₩45,684.00 |
| 40 + | ₩37,600.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 671-9066
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Primary Voltage | 2 x 115 V | |
| Product Type | Toroidal Transformer | |
| Secondary Voltage | 2 x 15 V | |
| Number of Outputs | 2 | |
| Secondary Current | 1 A | |
| Weight | 0.503kg | |
| Power | 30VA | |
| Diameter | 70 mm | |
| Minimum Operating Frequency | 50Hz | |
| Winding Type | Primary Winding, Secondary Winding | |
| Maximum Operating Frequency | 60Hz | |
| Termination Type | Lead | |
| Height | 32mm | |
| Standards/Approvals | EN61558 Class II, IEC61558 Class II, UL506, VDE0570 Class II | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Primary Voltage 2 x 115 V | ||
Product Type Toroidal Transformer | ||
Secondary Voltage 2 x 15 V | ||
Number of Outputs 2 | ||
Secondary Current 1 A | ||
Weight 0.503kg | ||
Power 30VA | ||
Diameter 70 mm | ||
Minimum Operating Frequency 50Hz | ||
Winding Type Primary Winding, Secondary Winding | ||
Maximum Operating Frequency 60Hz | ||
Termination Type Lead | ||
Height 32mm | ||
Standards/Approvals EN61558 Class II, IEC61558 Class II, UL506, VDE0570 Class II | ||
Toroid open wound dual 115V primary
High quality open style toroidal transformers with dual 115Vac 50/60Hz primary windings and twin secondary windings which may be connected in series or parallel or used independently.
Features & Benefits
• Small size and low weight compared with traditional stacked lamination types;• Extremely low level of radiated magnetic field;• Very low induced noise (hum);• Very low iron loss;• Double insulated primary leads
Note
Mounting hardware is not supplied, available seperately
Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
