Open Style with Leads, 115/230Vac Primary 15VA to 1000VA

High quality open style toroidal transformers with twin 115Vac 50/60Hz primary windings which may be connected in series for 230V or parallel for 115V operation. Twin secondary windings may be connected in series or parallel or used independently.

Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Double insulated primary leads
Supplied with mounting kit
100% electrical and flash tested

Warning

Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

Approvals

UL506, EN61558

Supplied with

Full mounting kit

Approvals

VDE 0551; VDE 0550; UL 506

Standards

EN61558; EN60950; EN60065; BS415

수량	한팩당
1 - 9	₩178,806.80
10 - 24	₩171,662.80
25 +	₩164,500.00

모두 선택	제품 정보	값
	브랜드	Nuvotem Talema
	Primary Voltage Rating	115 V ac, 230 V ac
	Secondary Voltage Rating	2 x 35V ac
	Power Rating	300VA
	Number of Outputs	2
	Secondary Current	4.286A
	Height	58mm
	Weight	2.3kg
	Diameter	115mm
	Dimensions	115 (Dia.) x 58mm
	Minimum Operating Frequency	50Hz
	Maximum Operating Frequency	60Hz
	Termination Type	Leads
	Maximum Temperature	+40°C

	모두 선택
	브랜드 Nuvotem Talema
	Primary Voltage Rating 115 V ac, 230 V ac
	Secondary Voltage Rating 2 x 35V ac
	Power Rating 300VA
	Number of Outputs 2
	Secondary Current 4.286A
	Height 58mm
	Weight 2.3kg
	Diameter 115mm
	Dimensions 115 (Dia.) x 58mm
	Minimum Operating Frequency 50Hz
	Maximum Operating Frequency 60Hz
	Termination Type Leads
	Maximum Temperature +40°C

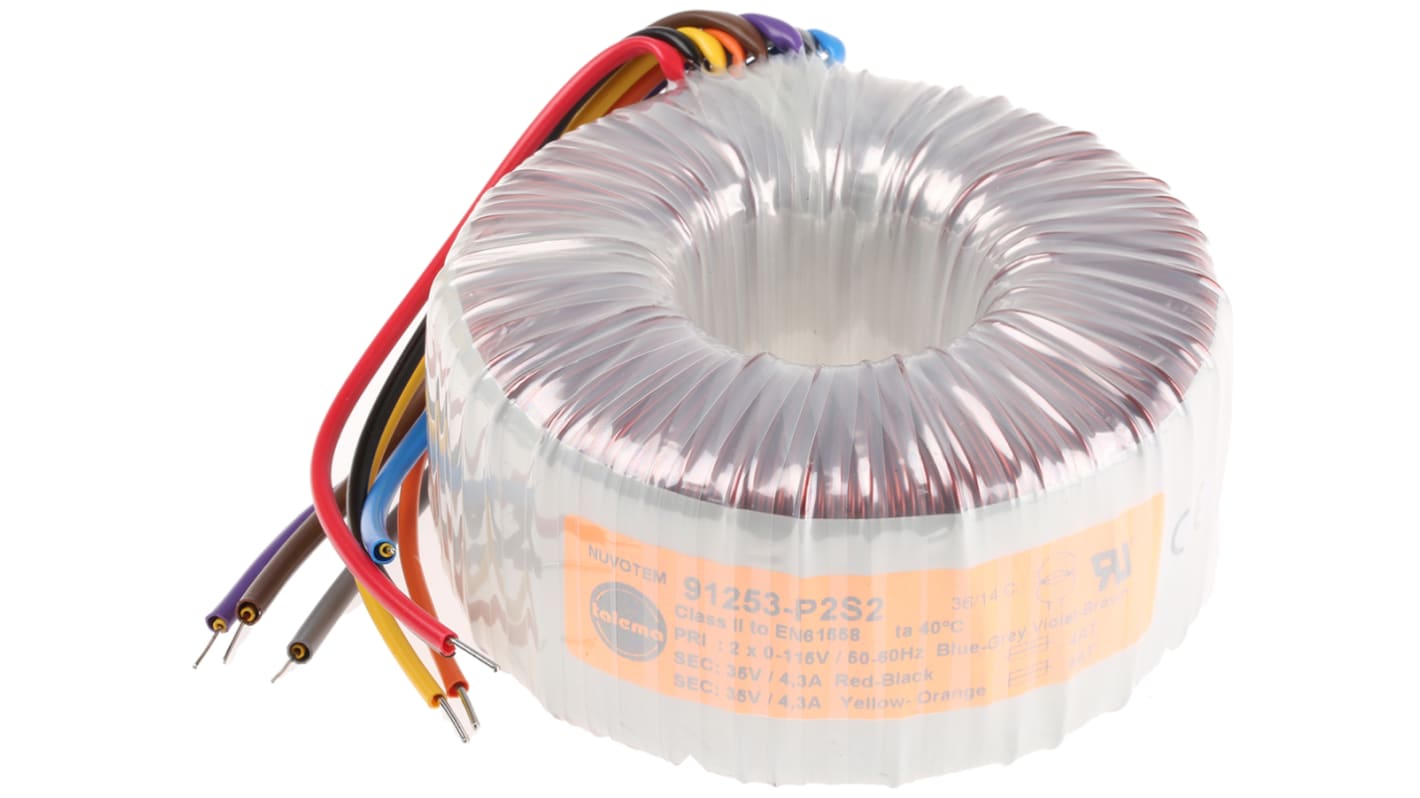

Nuvotem Talema 115 V ac, 230 V ac, 2 x 35V ac Toroidal Transformer, 300VA 2 Output
