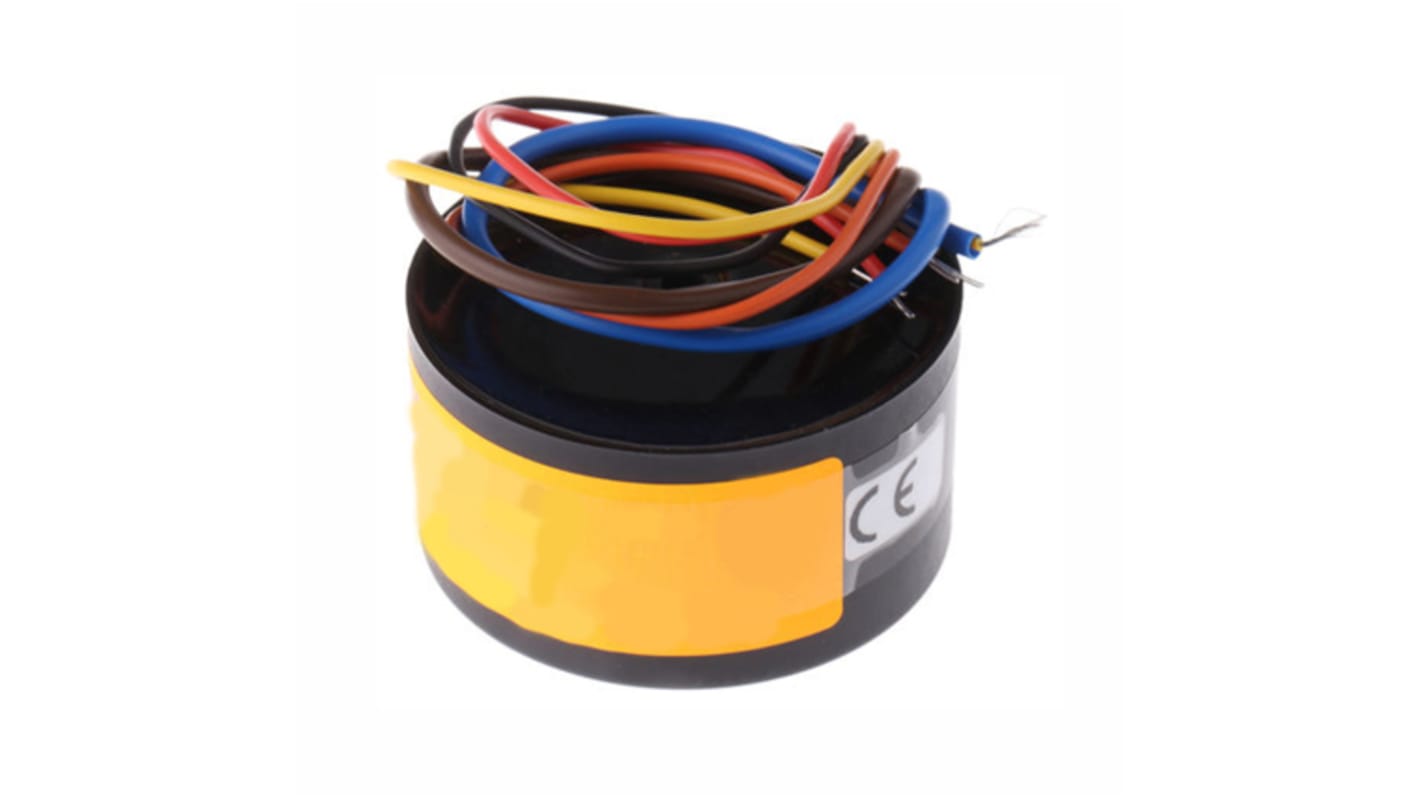

RS PRO 230V ac, 2 x 25V ac Toroidal Transformer, 160VA 2 Output

RS 재고 번호:: 123-4025
제조업체:: RS PRO

RS PRO 230V ac, 2 x 25V ac Toroidal Transformer, 160VA 2 Output

Subtotal (1 unit)*

₩121,827.76

일시적 품절

2026년 7월 07일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

단위당	한팩당
1 +	₩121,827.76

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:: 123-4025
제조업체:: RS PRO

기술적 참조

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	RS PRO
	Primary Voltage Rating	230V ac
	Secondary Voltage Rating	2 x 25V ac
	Power Rating	160VA
	Number of Outputs	2
	Height	53mm
	Weight	1.5kg
	Diameter	115mm
	Dimensions	115 (Dia.) x 53mm
	Minimum Operating Frequency	50Hz
	Maximum Operating Frequency	60Hz
	Mounting Type	Surface Mount
	Termination Type	Lead Wire

	모두 선택
	브랜드 RS PRO
	Primary Voltage Rating 230V ac
	Secondary Voltage Rating 2 x 25V ac
	Power Rating 160VA
	Number of Outputs 2
	Height 53mm
	Weight 1.5kg
	Diameter 115mm
	Dimensions 115 (Dia.) x 53mm
	Minimum Operating Frequency 50Hz
	Maximum Operating Frequency 60Hz
	Mounting Type Surface Mount
	Termination Type Lead Wire

RS Pro Encapsulated Transformers Single Primary Winding15VA-500VA

RS Pro High-quality encapsulated toroidal transformers with a single 230 Vac 50/60 Hz primary winding. Twin secondary windings can be connected in series or parallel or used independently. Designed for easy mounting with centre hole fixing.

Features

Fully encapsulated to UL94-V0
Case material meets UL94-V0, Nylon 6.6
Small size and low weight compared with traditional stacked lamination types
Low induced noise (hum)
Low iron loss
Double insulated primary leads
Low surface temperature
Fixing bolt not included
100% electrical and flash tested

Standards

UL506
UL5085-1
EN61558-1 Class II
EN60065 Class II

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Toroidal Encapsulated 230Vac Primary 15VA to 500VA
