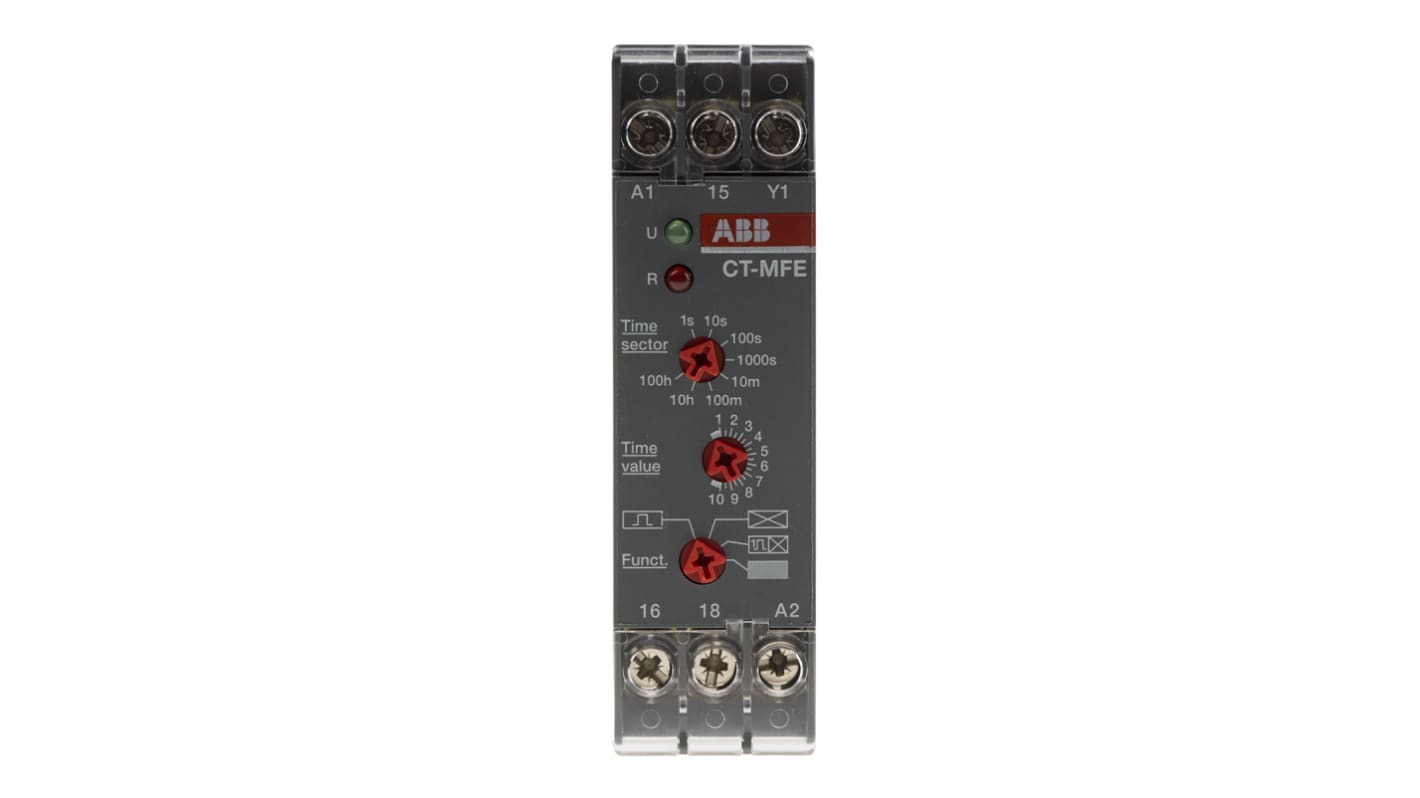

ABB DIN Rail Multi Function Timer Relay, 24 → 240V ac/dc, SPDT, 0.05 s → 100h
- RS 제품 번호:
- 442-9297
- 제조사 부품 번호:
- 1SVR550029R8100
- 제조업체:
- ABB
모든 Timer Relays 열람하기
25 <재고있음> 5-9영업일내 홍콩 발송
단가 Each
₩142,592.25
| 수량 | 한팩당 |
| 1 - 24 | ₩142,592.25 |
| 25 - 49 | ₩138,599.45 |
| 50 + | ₩132,895.45 |
- RS 제품 번호:
- 442-9297
- 제조사 부품 번호:
- 1SVR550029R8100
- 제조업체:
- ABB
해당 안됨
제정법과 컴플라이언스
해당 안됨
제품 세부 사항
ABB Multi-Function Electronic Timer Relay
The ABB multi-function electronic timer relay is a compact device with SPDT output. It has 7 selectable timing ranges between 0.05 seconds to 100 hours in one device. This timer is ideally suited for installation in distribution panels as well as for industrial applications where compact dimensions are required. For selecting a time delay range is rotary switch selectable on the front of the unit. The fine adjustment of the time delay is made via an internal potentiometer, with a direct reading scale on the front of the unit.
Features and Benefits
Rated control supply voltage is 24VDC to 240VDC and 24VAC to 240VAC
1C/O SPDT contact configuration(250V/4A)
Multi-function timer with 6 timing functions: ON-delay, OFF-delay, impulse-ON, flasher starting with ON, flasher starting with OFF and pulse former
Polarized
Capable of switching a parallel load
Width of only 17.5mm (0.689in)
2 LEDs for the indication of operational states
1C/O SPDT contact configuration(250V/4A)
Multi-function timer with 6 timing functions: ON-delay, OFF-delay, impulse-ON, flasher starting with ON, flasher starting with OFF and pulse former
Polarized
Capable of switching a parallel load
Width of only 17.5mm (0.689in)
2 LEDs for the indication of operational states
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
CAN/CSA certified
EN 50581 approved
IEC/EN 61812-1 certified
UL 50 approved
EN 50581 approved
IEC/EN 61812-1 certified
UL 50 approved
Approvals
UL listed / UL listed for Canada, GL, GOST, c-Tick
사양
| 속성 | 값 |
| Supply Voltage | 24 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Number of Contacts | 1 |
| Time Range | 0.05 s → 100h |
| Mode of Operation | Flash Start with OFF, Flash Start with ON, Impulse ON, OFF Delay, ON Delay, Pulse Former |
| Number of Timer Functions | Multi Function |
| Contact Configuration | SPDT |
| Time Increment | Hours, Seconds |
| Maximum Voltage | 250V ac/dc |
| Maximum Current | 4A |
| Terminal Type | Screw |
| Power Supply | External |
| Depth | 78.5mm |
| Switch Configuration | SPDT |
| Length | 78mm |
| Maximum Operating Temperature | +60°C |
| Width | 22.5mm |
| Minimum Operating Temperature | -20°C |
| Contact Material | Silver Cadmium Oxide |
