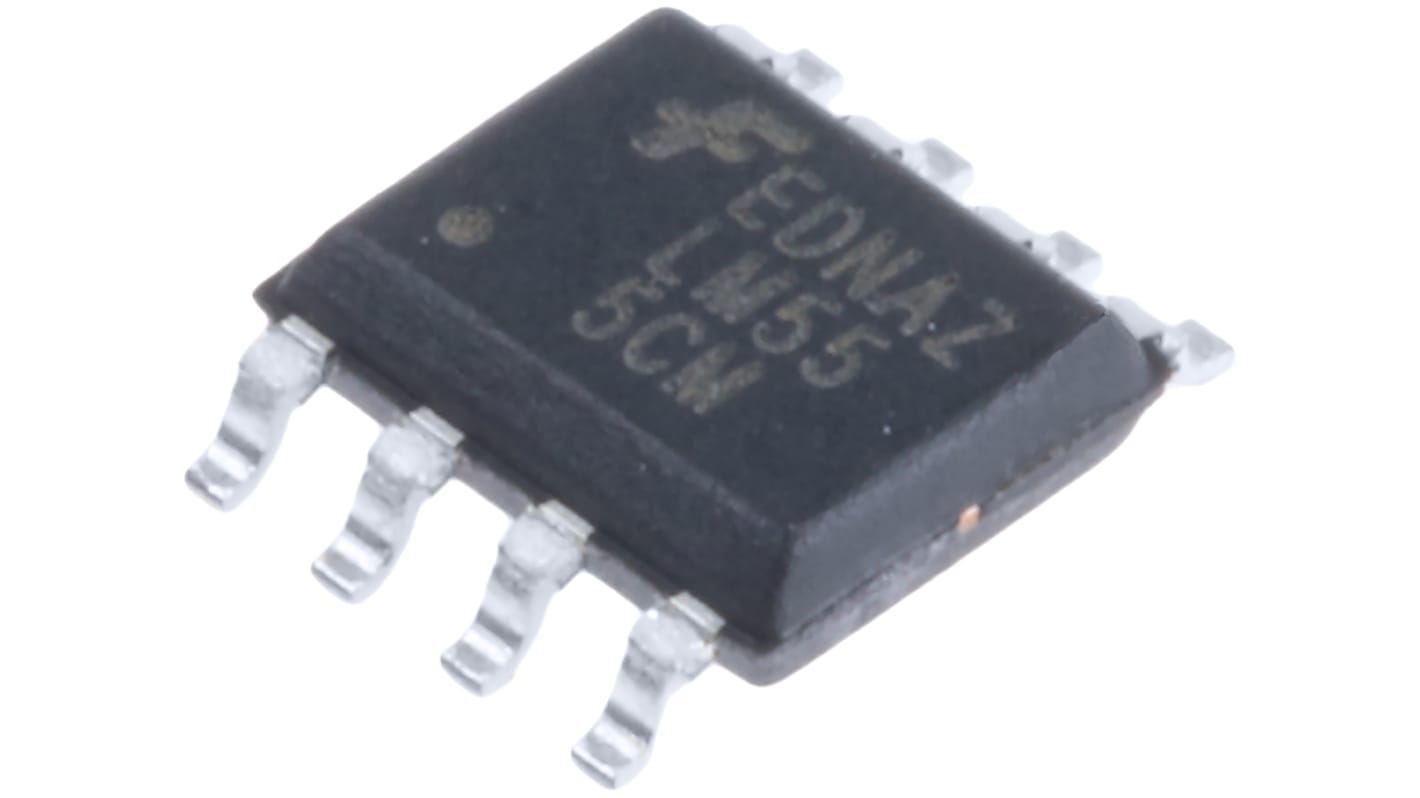

ON Semiconductor LM555CM, Timer, 8-Pin SOIC
- RS 제품 번호:
- 806-2832
- 제조사 부품 번호:
- LM555CM
- 제조업체:
- ON Semiconductor
단종
- RS 제품 번호:
- 806-2832
- 제조사 부품 번호:
- LM555CM
- 제조업체:
- ON Semiconductor
제정법과 컴플라이언스
제품 세부 사항
555 Timer, Fairchild Semiconductor
Fairchild Semiconductor offers the 555 timer, a highly stable controller capable of producing accurate timing pulses. With monostable operation, you control the time delay by one external resistor and one capacitor. With a stable operation, the frequency and duty cycle are accurately controlled with two external resistors and one capacitor.
Timers/Timing Generators
사양
속성 | 값 |
|---|---|
| Mounting Type | Surface Mount |
| Timer Type | Reset |
| Package Type | SOIC |
| Number of Internal Timers | 1 |
| Pin Count | 8 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 16 V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Maximum Low Level Output Current | 50mA |
| Maximum High Level Output Current | 200mA |
| Dimensions | 5 x 4 x 1.5mm |
| Width | 4mm |
| Length | 5mm |
| Height | 1.5mm |
