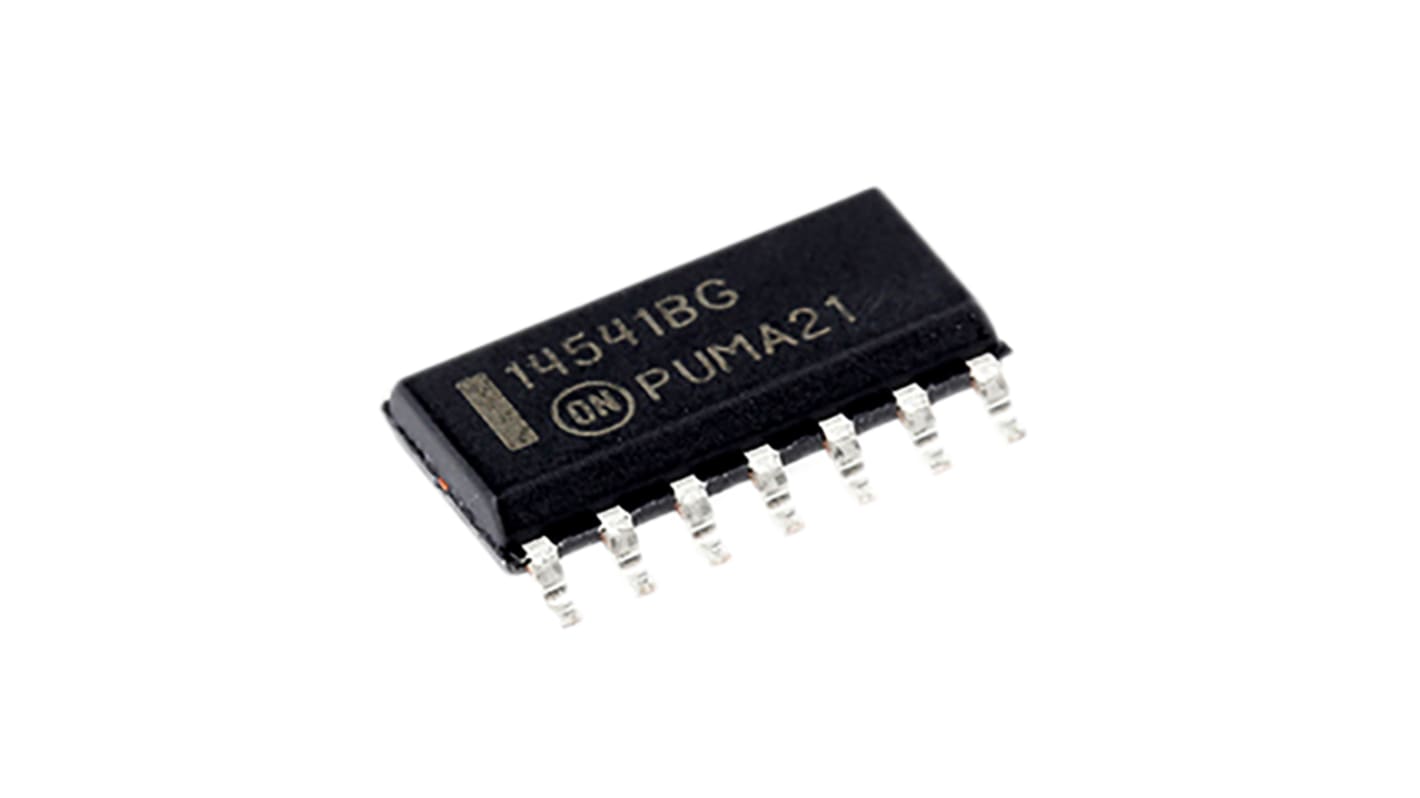

ON Semiconductor MC14541BDG, Programmable Timer Circuit 3MHz, 3 → 18 V, 14-Pin SOIC
- RS 제품 번호 518-9518
- 제조사 부품 번호 MC14541BDG
- 제조업체 ON Semiconductor
참조 문서
제품 세부 사항
4000 Series Multivibrators & Timers, ON Semiconductor
4000 CMOS Logic Family, ON Semiconductor
CMOS Family devices
Wide operating voltage range: 3 to 18V
사양
| 속성 | 값 |
|---|---|
| Mounting Type | Surface Mount |
| Timer Type | Programmable |
| Package Type | SOIC |
| Number of Internal Timers | 1 |
| Pin Count | 14 |
| Maximum Input Frequency | 3MHz |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Operating Supply Voltage | 18 V |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Maximum Quiescent Current | 0.02mA |
| Maximum Low Level Output Current | 19.3mA |
| Maximum High Level Output Current | -16.3mA |
| Maximum Propagation Delay Time @ Maximum CL | 18000 ns@ 5 V |
| Width | 4mm |
| Dimensions | 8.75 x 4 x 1.5mm |
| Height | 1.5mm |
| Length | 8.75mm |
178 <재고있음> 5-9영업일내 홍콩 발송
단가 Each
₩
548.70
(exc. VAT)
수량
한(1)개당
1 - 9
₩548.70
10 - 49
₩537.85
50 - 99
₩528.55
100 - 249
₩519.25
250 +
₩506.85
