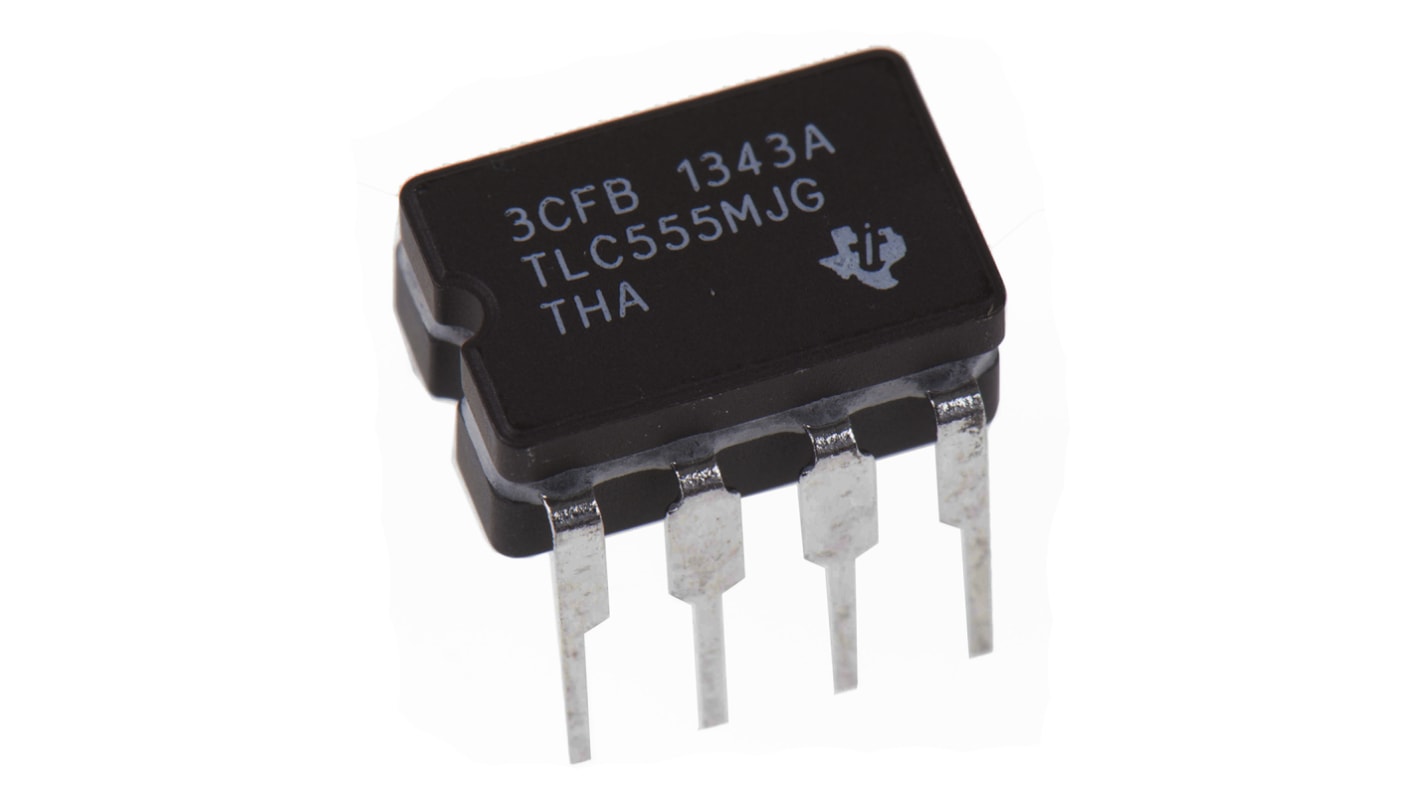

Texas Instruments TLC555MJG, Timer Circuit 2.1MHz, 8-Pin CDIP

참조 문서
제정법과 컴플라이언스
제품 세부 사항

555 Timer, Texas Instruments

A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.

Timers/Timing Generators

Mounting Type Through Hole
Timer Type Standard
Package Type CDIP
Number of Internal Timers 1
Pin Count 8
Maximum Input Frequency 2.1MHz
Minimum Operating Supply Voltage 2 V
Maximum Operating Supply Voltage 15 V
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +125 °C
Maximum Quiescent Current 350µA
Maximum Low Level Output Current -10mA
Maximum High Level Output Current 100mA
Width 7.11mm
Height 5.08mm
Dimensions 10.16 x 7.11 x 5.08mm
Length 10.16mm
490 <재고있음> 5-9영업일내 홍콩 발송
단가 Each (In a Tube of 10)
(exc. VAT)
Per Tube*
10 +
*다른 단위에 대한 가격 표시
Due to temporarily constrained supply, RS is unable to accept backorders at this time
