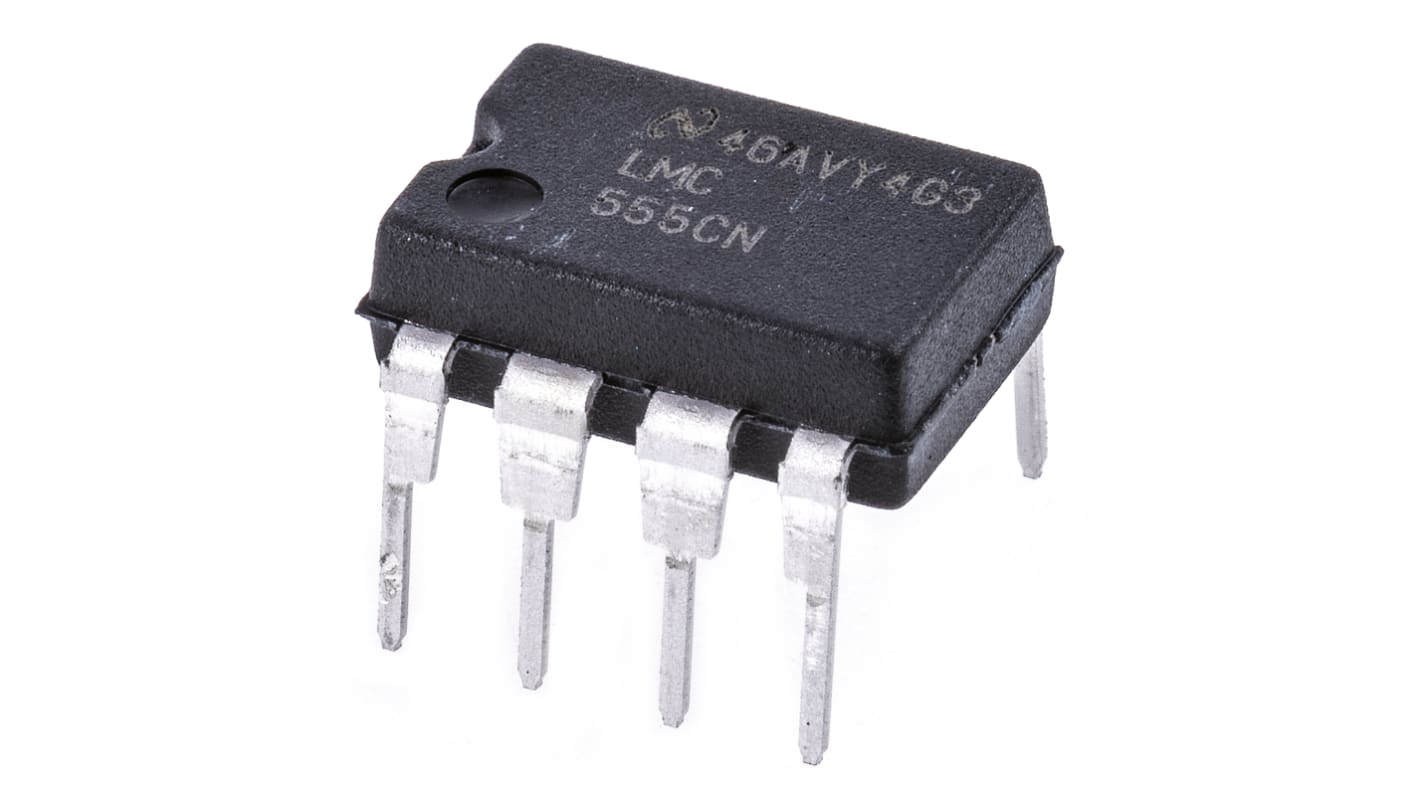

Texas Instruments LMC555CN/NOPB, Timer Circuit 3MHz, 8-Pin PDIP

  • RS 제품 번호 121-8804
  • 제조사 부품 번호 LMC555CN/NOPB
  • 제조업체 Texas Instruments
참조 문서
제정법과 컴플라이언스
COO (Country of Origin): GB
제품 세부 사항

555 Timer, Texas Instruments

A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.

Timers/Timing Generators

Mounting Type Through Hole
Timer Type Standard
Package Type PDIP
Number of Internal Timers 1
Pin Count 8
Maximum Input Frequency 3MHz
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
Maximum Low Level Output Current 50mA
Maximum High Level Output Current -10mA
Maximum Propagation Delay Time @ Maximum CL 100 ns @ 5 V
Dimensions 9.27 x 6.35 x 3.3mm
Length 9.27mm
Height 3.3mm
Width 6.35mm
단가 Each (In a Tube of 40)
(exc. VAT)
Per Tube*
40 - 40
80 - 120
160 - 360
400 - 760
800 +
*다른 단위에 대한 가격 표시
Due to temporarily constrained supply, RS is unable to accept backorders at this time
