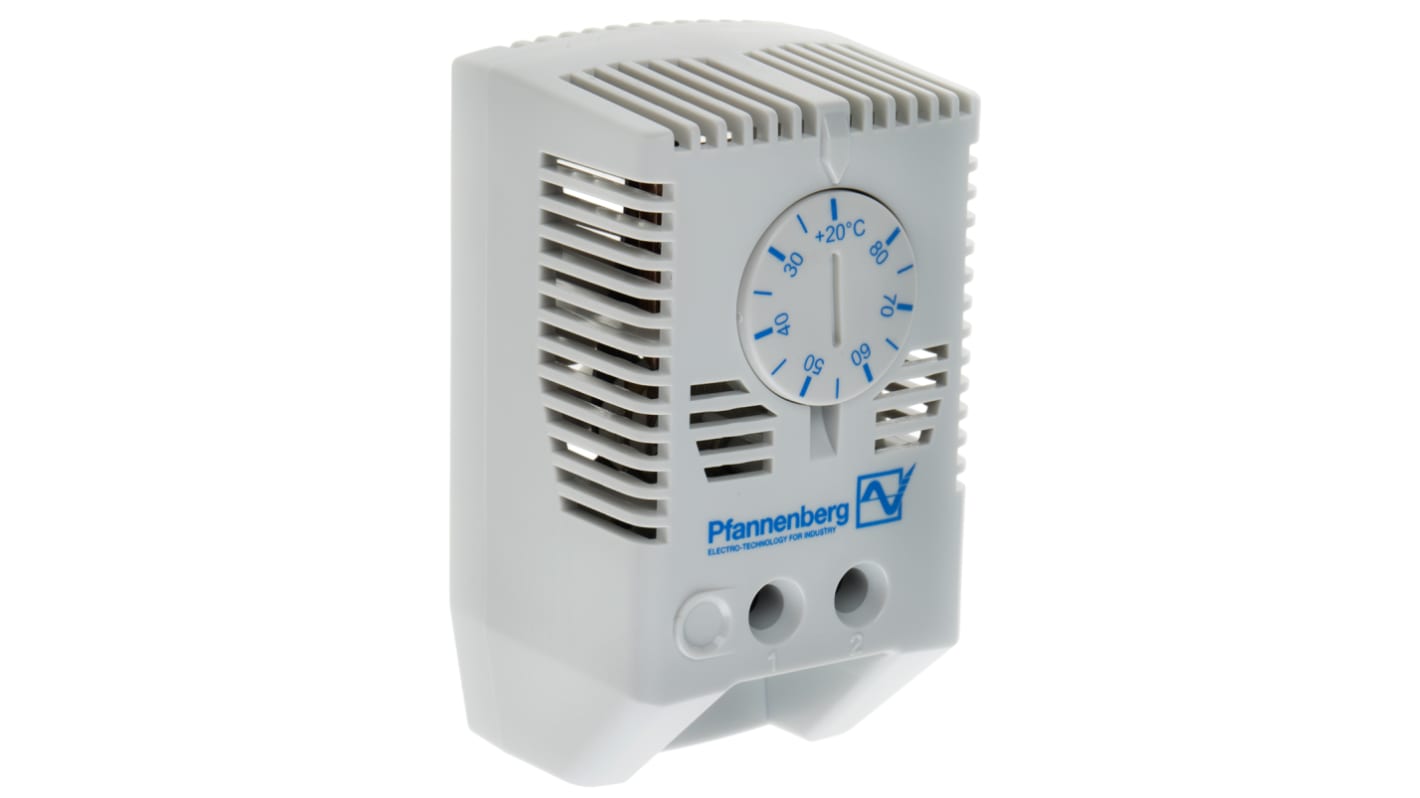

Pfannenberg FLZ NO Enclosure Thermostat, 120 → 240 V ac, +20 → +80 °C
- RS 제품 번호:
- 103-235
- 제조사 부품 번호:
- FLZ530 17121000004
- 제조업체:
- Pfannenberg
일시 품절-다음 입고 날짜는 30/05/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩41,592.514
| 수량 | 한팩당 |
| 1 - 4 | ₩41,592.514 |
| 5 - 9 | ₩40,343.686 |
| 10 - 24 | ₩39,336.345 |
| 25 - 49 | ₩38,420.423 |
| 50 + | ₩37,433.78 |
- RS 제품 번호:
- 103-235
- 제조사 부품 번호:
- FLZ530 17121000004
- 제조업체:
- Pfannenberg
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
DIN Rail Thermostats - Pfannenberg FLZ Series
When used in conjunction with a cabinet heater thermostats can be used to control the temperature inside a control cabinet. These thermostats can also be used with a filter fan to provide benefits in energy consumption, materials and time due to need-based use of the fans.
Mechanical bi-metallic thermostat for temperature in enclosures
Spring contact
DC max 30W
Connection by 0.5-2.5mm2 screw clamps
IP20 protection
Working/storage temperature range -20°C to +80°C
Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715
Colour RAL 7035 - light grey
Spring contact
DC max 30W
Connection by 0.5-2.5mm2 screw clamps
IP20 protection
Working/storage temperature range -20°C to +80°C
Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715
Colour RAL 7035 - light grey
Approvals
UL (FLZ520 & FLZ530)
사양
속성 | 값 |
|---|---|
| Switch Configuration | NO |
| Supply Voltage | 120 → 240 V ac |
| Maximum Temperature | +80 °C |
| Minimum Temperature | +20 °C |
| Temperature Range | +20 → +80 °C |
| Series | FLZ |
