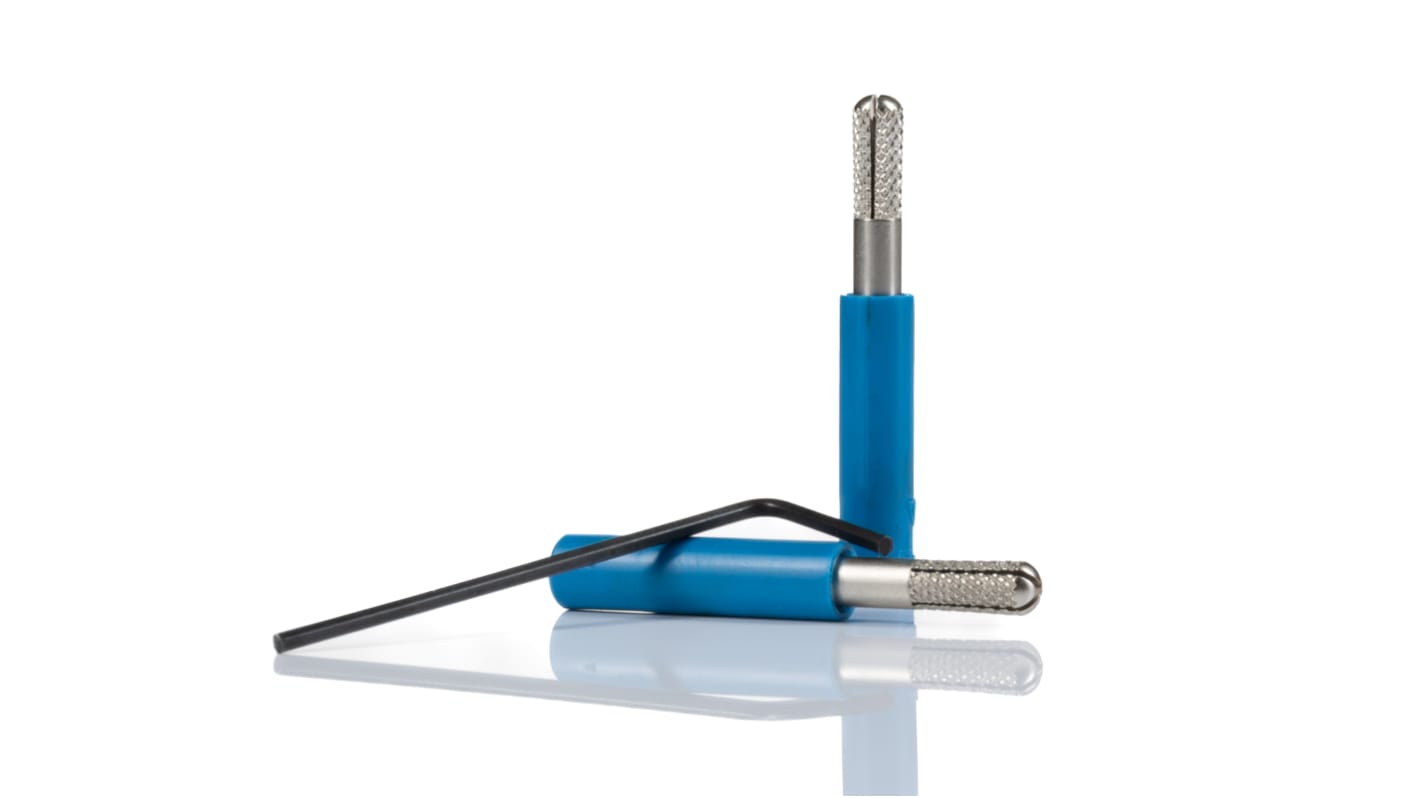

Staubli Blue, Male to Female Test Connector Adapter With Brass contacts and Nickel Plated - Socket Size: 4mm
- RS 제품 번호:
- 507-1035
- 제조사 부품 번호:
- 24.0163-23
- 제조업체:
- Staubli
일시 품절-다음 입고 날짜는 09/08/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 2 로트 1개
₩16,950.592
| Lot(s) | Per Lot | 한팩당* |
| 1 - 14 | ₩16,950.592 | ₩8,476.159 |
| 15 - 49 | ₩16,526.267 | ₩8,262.271 |
| 50 - 124 | ₩16,110.566 | ₩8,055.283 |
| 125 - 249 | ₩15,706.939 | ₩7,853.47 |
| 250 + | ₩15,317.112 | ₩7,658.556 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 507-1035
- 제조사 부품 번호:
- 24.0163-23
- 제조업체:
- Staubli
참조 문서
제정법과 컴플라이언스
제품 세부 사항
Safety adapters for Ø 4 mm socket
Safety adapter for Ø 4 mm socket. It can be used to ensure compliance with the standard 4 mm socket.
It is fitted without the 4 mm socket and then fixed in position by tightening a grub screw (using a hexagonal socket wrench), causing the Ø 4 mm plug to expand.
For use in education, research and development etc.
It is fitted without the 4 mm socket and then fixed in position by tightening a grub screw (using a hexagonal socket wrench), causing the Ø 4 mm plug to expand.
For use in education, research and development etc.
Note
When installing the adapter, the component to be connected must be powered off.
Standards
IEC 61010 CAT II
사양
속성 | 값 |
|---|---|
| Colour | Blue |
| Plug Size | 4mm |
| Socket Size | 4mm |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Current Rating | 25A |
| Voltage Rating | 1kV |
| Gender | Male to Female |
