Mueller Electric Terminal Post, 15A
- RS 제품 번호:
- 179-9390
- 제조사 부품 번호:
- BU-P4243-0
- 제조업체:
- Mueller Electric
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩13,254.00
재고있음
- 추가로 2025년 12월 15일 부터 12 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩13,254.00 |
| 10 - 49 | ₩12,972.00 |
| 50 - 99 | ₩12,577.20 |
| 100 - 199 | ₩12,220.00 |
| 200 + | ₩12,032.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 179-9390
- 제조사 부품 번호:
- BU-P4243-0
- 제조업체:
- Mueller Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Mueller Electric | |
| Current Rating | 15A | |
| 모두 선택 | ||
|---|---|---|
브랜드 Mueller Electric | ||
Current Rating 15A | ||
- COO (Country of Origin):
- CN

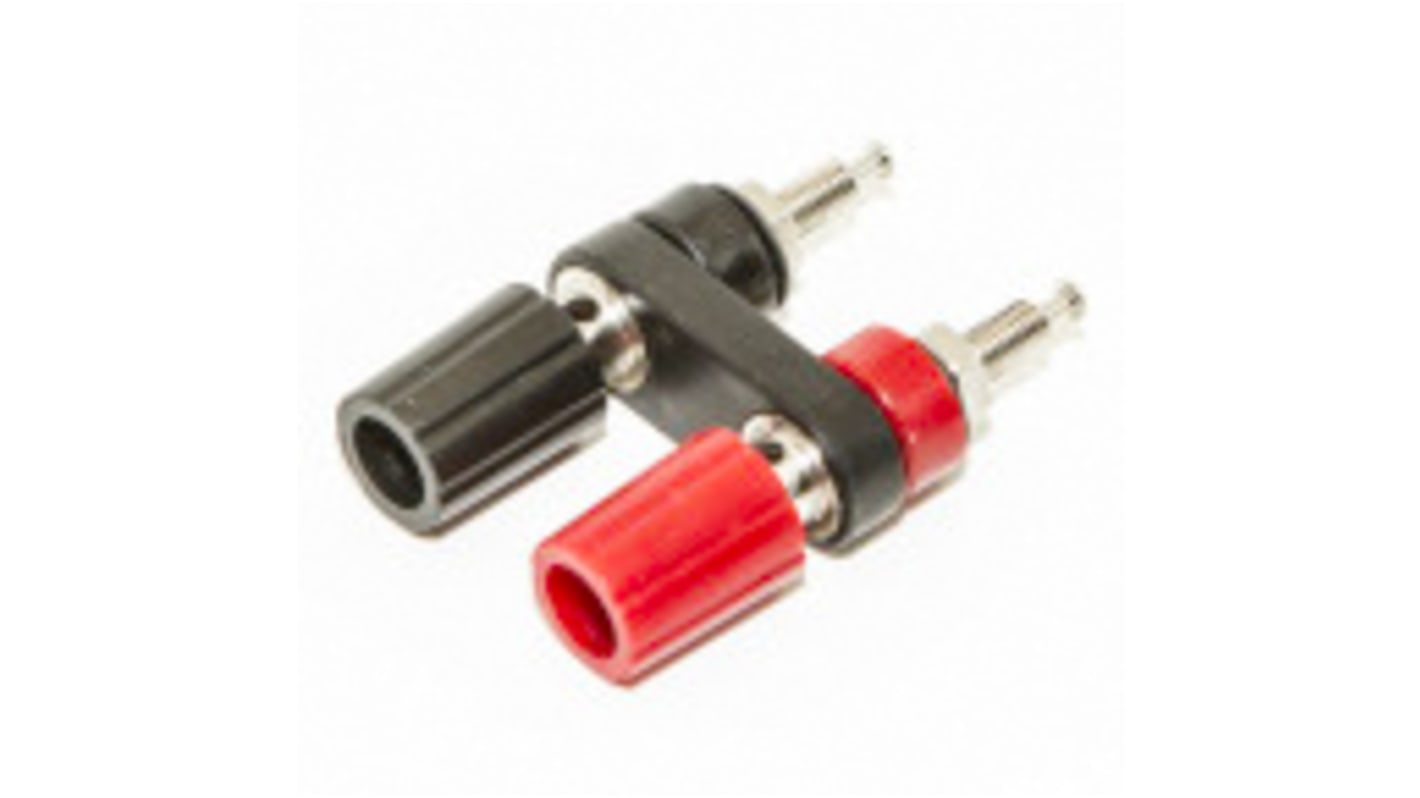

Slim-Line Binding Post, 15 Amps, 1000V.
The BU‐P4243 is a slim‐line binding post which accepts non‐shrouded and retractable 4mm banana plugs as well as bare wire and 7mm (ID) spade connectors. Internal wires connected by solder post.
Material: Bright Tin Plated Brass with Polycarbonate Insulators and High Temp ABS Spacer
Panel Cutout is: φ.375 (9.5mm) thru holes on .75 (19mm) centers
Mounts thru panels up to .25 (6.4mm) thick
Ratings: 15 Amps, Hands Free testing to 1000V.
Material: Bright Tin Plated Brass with Polycarbonate Insulators and High Temp ABS Spacer
Panel Cutout is: φ.375 (9.5mm) thru holes on .75 (19mm) centers
Mounts thru panels up to .25 (6.4mm) thick
Ratings: 15 Amps, Hands Free testing to 1000V.
