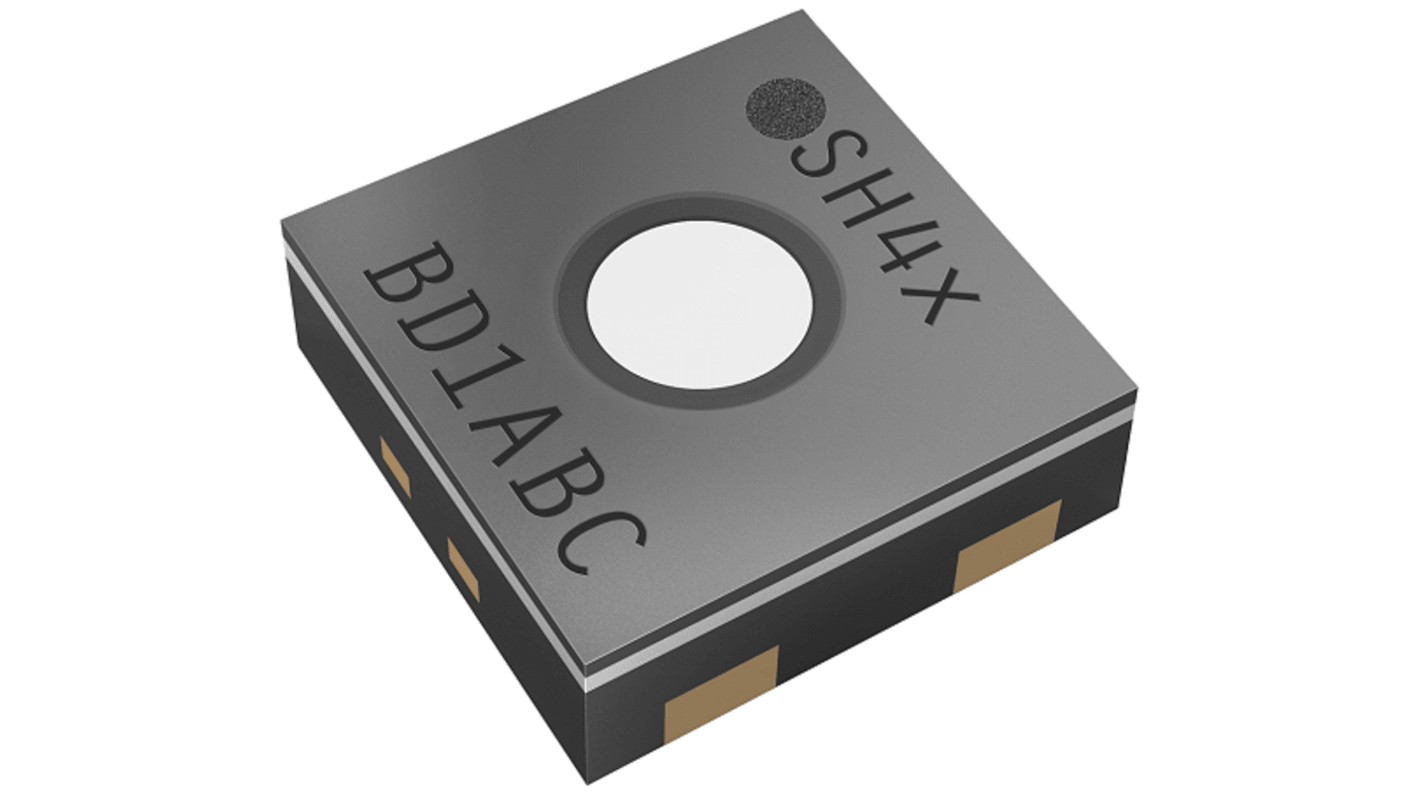

Sensirion SHT4x Series Temperature & Humidity Sensor, Digital Output, Surface Mount, I2C, ±1%, 4 Pins
- RS 제품 번호:
- 262-5422P
- 제조사 부품 번호:
- SHT40-BD1F-R2
- 제조업체:
- Sensirion
2332 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당(릴로 공급됨) 150pcs 이하는 STRIP 포장
₩3,615.39
| 수량 | 한팩당 |
| 10 - 98 | ₩3,615.39 |
| 100 - 498 | ₩3,253.161 |
| 500 - 998 | ₩2,765.015 |
| 1000 + | ₩2,211.322 |
- RS 제품 번호:
- 262-5422P
- 제조사 부품 번호:
- SHT40-BD1F-R2
- 제조업체:
- Sensirion
제정법과 컴플라이언스
- COO (Country of Origin):
- CH
제품 세부 사항
The Sensirion SHT4x is a digital sensor platform for measuring relative humidity and temperature at different accuracy classes. Its I2C interface provides several preconfigured I2C addresses while maintaining an ultra low power budget. The power trimmed internal heater can be used at three heating levels thus enabling sensor operation in demanding environments. The four pin dual flat no leads package is suitable for surface mount technology processing. Sensor specific calibration certificates according to ISO17025 identifiable through unique serial number.
Fully functional in condensing environment
Sensor specific calibration certificate
JEDEC JESD47 qualification
Sensor specific calibration certificate
JEDEC JESD47 qualification
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Sensor Function | Humidity, Temperature |
| Output Type | Digital |
| Interface Type | I2C |
| Accuracy | ±1% |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Series | SHT4x |
