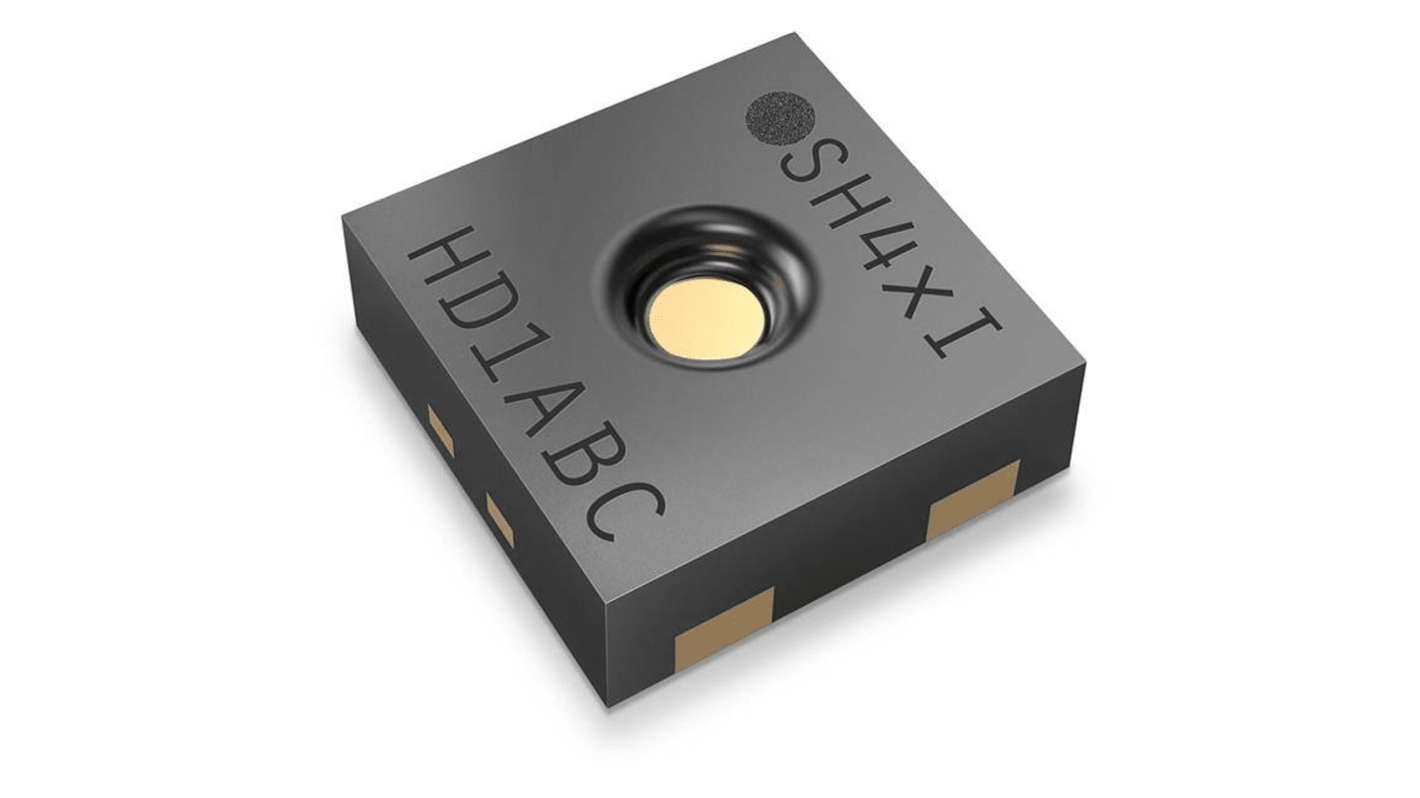

Sensirion SHT4xI Series Temperature and Humidity Sensor, Digital Output, Surface Mount, I2C, ±0.2 °C, ±2 %RH, 4 Pins
- RS 제품 번호:
- 236-5208P
- 제조사 부품 번호:
- SHT41I-AD1B-R2
- 제조업체:
- Sensirion
현재 시스템 에러로 재고 수량 확인이 불가합니다. krenquiry@rs-components.com 에 문의하시거나 잠시후에 다시 시도해주시기 바랍니다.
추가완료!
단가 개당(릴로 공급됨) 150pcs 이하는 STRIP 포장
₩4,926.314
수량 | 한팩당 |
10 - 48 | ₩4,926.314 |
50 - 98 | ₩4,802.122 |
100 - 998 | ₩4,684.828 |
1000 + | ₩4,565.81 |
- RS 제품 번호:
- 236-5208P
- 제조사 부품 번호:
- SHT41I-AD1B-R2
- 제조업체:
- Sensirion
제정법과 컴플라이언스
- COO (Country of Origin):
- CH
제품 세부 사항
The Sensirion SHT4xI series is an industrial-grade digital sensor platform for measuring relative humidity and temperature with different accuracy classes. It meets demanding ESD and robustness requirements of industrial applications. The sensors can be interfaced via several preconfigured I2C addresses with I2C fast mode plus and CRC checksum.
Relative humidity accuracy of up to ±2 %RH
Temperature accuracy of up to ±0.2 °C
Supply voltage of 2.3 V to 5.5 V
Average current of 21 μA
I2C fast mode plus, CRC checksum
Operating range of 0 to 100 %RH, -40to125 °C
Fully functional in condensing environment
Temperature accuracy of up to ±0.2 °C
Supply voltage of 2.3 V to 5.5 V
Average current of 21 μA
I2C fast mode plus, CRC checksum
Operating range of 0 to 100 %RH, -40to125 °C
Fully functional in condensing environment
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Sensor Function | Temperature & Humidity |
Output Type | Digital |
Interface Type | I2C |
Accuracy | ±0.2 °C, ±2 %RH |
Mounting Type | Surface Mount |
Pin Count | 4 |
Operating Temperature Range | -40 → 125 °C |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | 125 °C |
Minimum Operating Supply Voltage | 2.3 V |
Maximum Operating Supply Voltage | 5.5 V |
Package Type | DFN |
Length | 1.5mm |
Series | SHT4xI |
Height | 0.5mm |
Width | 1.5mm |
Resolution | 16 bit |
Dimensions | 1.5 x 0.5 x 1.5mm |
