Analog Devices AD7314 Series Digital Temperature Sensor, Analogue Output, Surface Mount, ±2°C, 8 Pins
- RS 제품 번호:
- 183-1844P
- 제조사 부품 번호:
- AD7314ARMZ
- 제조업체:
- Analog Devices
단종
- RS 제품 번호:
- 183-1844P
- 제조사 부품 번호:
- AD7314ARMZ
- 제조업체:
- Analog Devices
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항

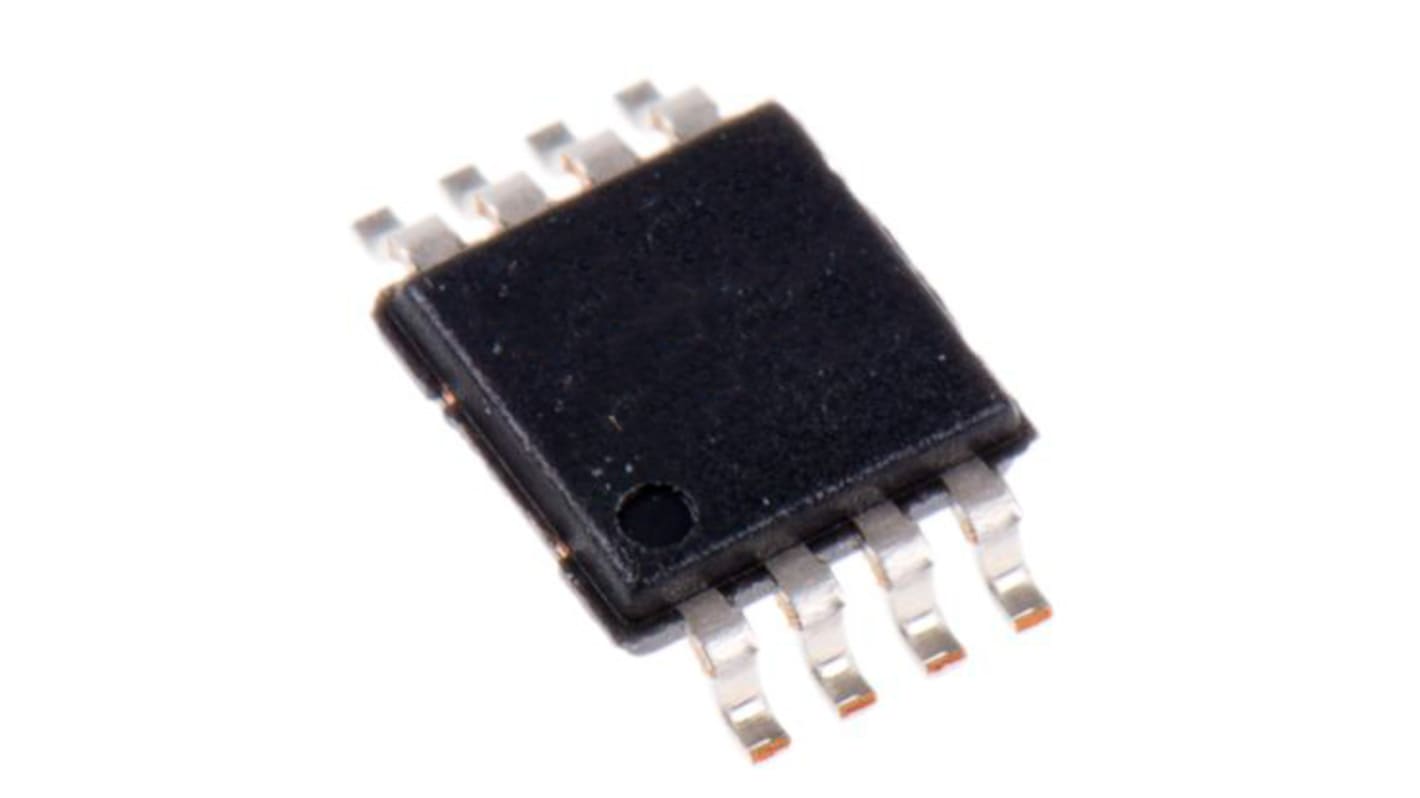

The AD7314 is a complete temperature monitoring system in an 8-pin μSOIC package. It contains a bandgap temperature sensor and 10-bit ADC to monitor and digitize the temperature reading to a resolution of 0.25ºC. The AD7314 has a flexible serial interface that allows easy interfacing to most microcontrollers. The interface is compatible with SPI, QSPI and MICRO-WIRE protocol and is also compatible with DSPs. It is pin compatible with the Dallas DS1722 part. The part features a standby mode, which is controlled via the serial interface. The AD7314 has a supply voltage range of +2.65 V to +2.9 V. Having a very low supply current and SPI compatible interface, the AD7314 is ideal for a variety of applications, including personal computers, office equipment and domestic appliances.
10-Bit Temperature-to-Digital Converter
-35°C to + 85°C Operating Temperature Range
±2 °C Accuracy
SPI- and DSP-Compatible Serial Interface
Shutdown Mode
Space-Saving μSOIC Package
-35°C to + 85°C Operating Temperature Range
±2 °C Accuracy
SPI- and DSP-Compatible Serial Interface
Shutdown Mode
Space-Saving μSOIC Package
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Sensor Function | Temperature |
Output Type | Analogue |
Accuracy | ±2°C |
Mounting Type | Surface Mount |
Pin Count | 8 |
Operating Temperature Range | -35 to +85 °C |
Minimum Operating Temperature | -35 °C |
Maximum Operating Temperature | +85 °C |
Minimum Operating Supply Voltage | 2.65 V |
Maximum Operating Supply Voltage | 5.5 V |
Package Type | MSOP |
Length | 3mm |
Series | AD7314 |
Height | 0.95mm |
Width | 3mm |
Resolution | 10 bit |
Dimensions | 3 x 3 x 0.95mm |
