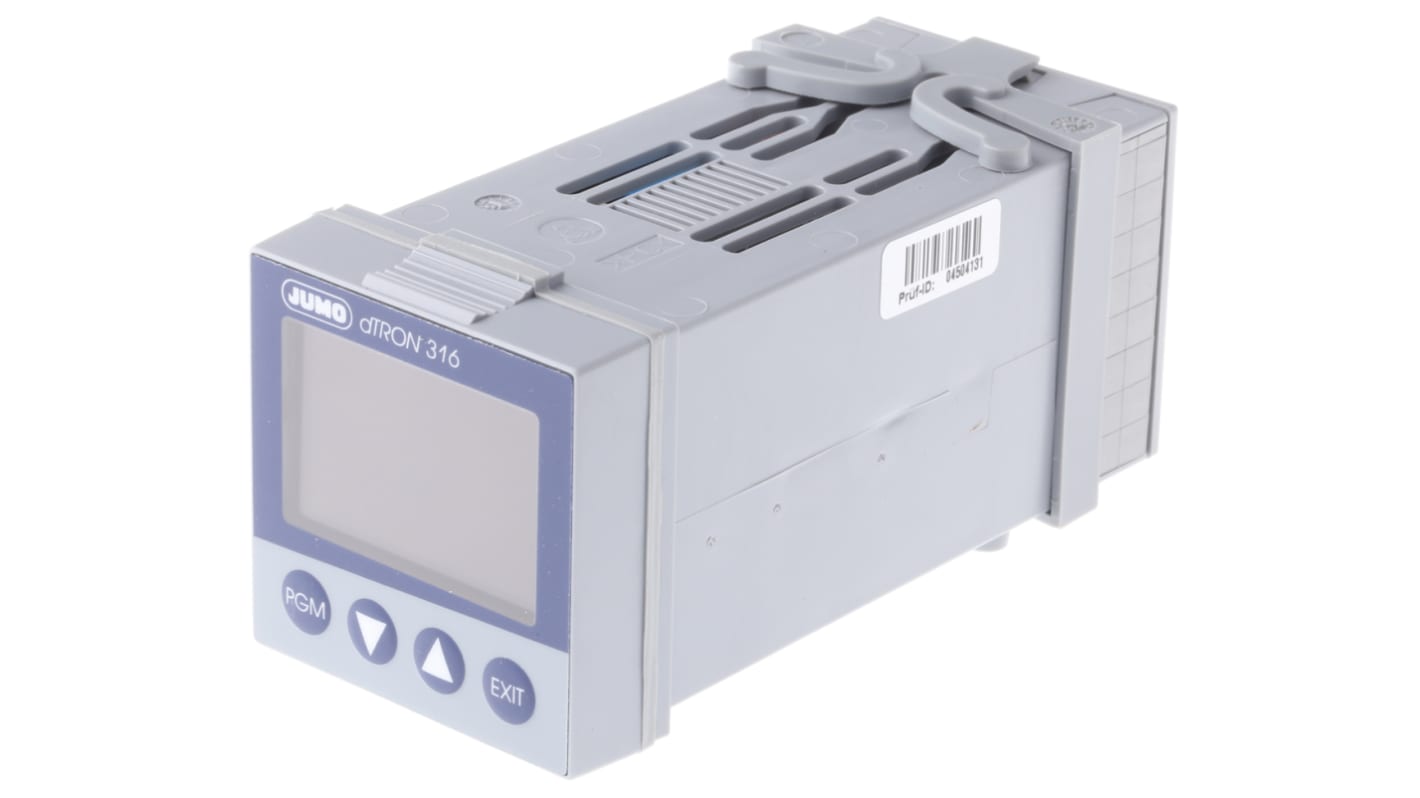

Jumo dTRON PID Temperature Controller, 48 x 48 (1/16 DIN)mm 1 (Analogue) Input, 4 Output Logic, Relay, 110 → 240
- RS 제품 번호:
- 510-9073
- 제조사 부품 번호:
- 703041/181-000-23/000
- 제조업체:
- Jumo
- RS 제품 번호:
- 510-9073
- 제조사 부품 번호:
- 703041/181-000-23/000
- 제조업체:
- Jumo
참조 문서
- Brochure
- Interface Description_Modbus
- Operating Manual
- Brochure Chemical Industry
- Brochure Control
- Brochure Dairy
- Brochure Food Technology
- Brochure Industrial Furnaces
- Interface Description_Dtron
- Interface Description_PROFIBUS-DP
- Operating Manual
- 703041/181-000-23/000 Datasheet
- NOTICE – This product is not for general use by consumers
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- DE
제품 세부 사항
Jumo Temperature Controller
The Jumo dTRON series temperature controller has supply voltage ranging from 110VAC to 240VAC. This controller has a width of 48mm and a height of 48mm(1/16 DIN) device. It has a single analogue input, two relays and two logic inputs or two logic outputs. This is robust equipment that includes 4, freely programmable devices in different DIN formats for controlling temperature, pressure and other process variables. The instruments can be used as 2-state, 3-state, modulating or continuous controllers. The electrical connection at the back is established via screw terminals.
Inclusions:
Controller, seal, fastening elements, operating instructions.
Inclusions:
Controller, seal, fastening elements, operating instructions.
Features and Benefits
2 self-optimisation processes
2 timer functions
4 limit comparators
4 programmable set points, 2 parameter sets
Bright LCD display for viewing different process parameters
Freely programmable controller structures (2-point and 3-point step controllers and continuous-action controller)
Maximum 2 freely programmable analogue inputs
Minimum sampling time is 50ms
Profibus DP interface
Program function with 8 sections or ramp function
Programmable as a differential, humidity or ratio controller
Quick and user-friendly configuration via set-up program
RS422/485 interface
Tried-and-tested, clearly laid-out operating and configuration diagram
Up to 8 binary outputs
2 timer functions
4 limit comparators
4 programmable set points, 2 parameter sets
Bright LCD display for viewing different process parameters
Freely programmable controller structures (2-point and 3-point step controllers and continuous-action controller)
Maximum 2 freely programmable analogue inputs
Minimum sampling time is 50ms
Profibus DP interface
Program function with 8 sections or ramp function
Programmable as a differential, humidity or ratio controller
Quick and user-friendly configuration via set-up program
RS422/485 interface
Tried-and-tested, clearly laid-out operating and configuration diagram
Up to 8 binary outputs
Certifications
EN 14597
IP20 rated
IP65 rated
IP20 rated
IP65 rated
사양
속성 | 값 |
---|---|
Output Type | Logic, Relay |
Supply Voltage | 110 → 240 V ac |
Size | 48 x 48 (1/16 DIN)mm |
Number of Inputs | 1 (Analogue) |
Number of Outputs | 4 |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +55°C |
Control Type | PID Controller |
Communication Module Available | Yes |
Display Type | LCD, Multi Line |
IP Rating | IP20, IP65 |
Range | dTRON 316 |
Series | dTRON |
Input Type | Universal |
Additional Functionality | ON/OFF, PID |
Panel Depth | 105mm |
Display Colour | Red/Green |
Termination Type | Screw |
