Wachendorff UR4848xA PID Temperature Controller, 48 x 48mm 1 Input, 1 Output Analogue, Relay, SSR, 24 → 230 V
- RS 제품 번호:
- 187-9351
- 제조사 부품 번호:
- UR48482A
- 제조업체:
- Wachendorff
- RS 제품 번호:
- 187-9351
- 제조사 부품 번호:
- UR48482A
- 제조업체:
- Wachendorff
제정법과 컴플라이언스
- COO (Country of Origin):
- IT
제품 세부 사항

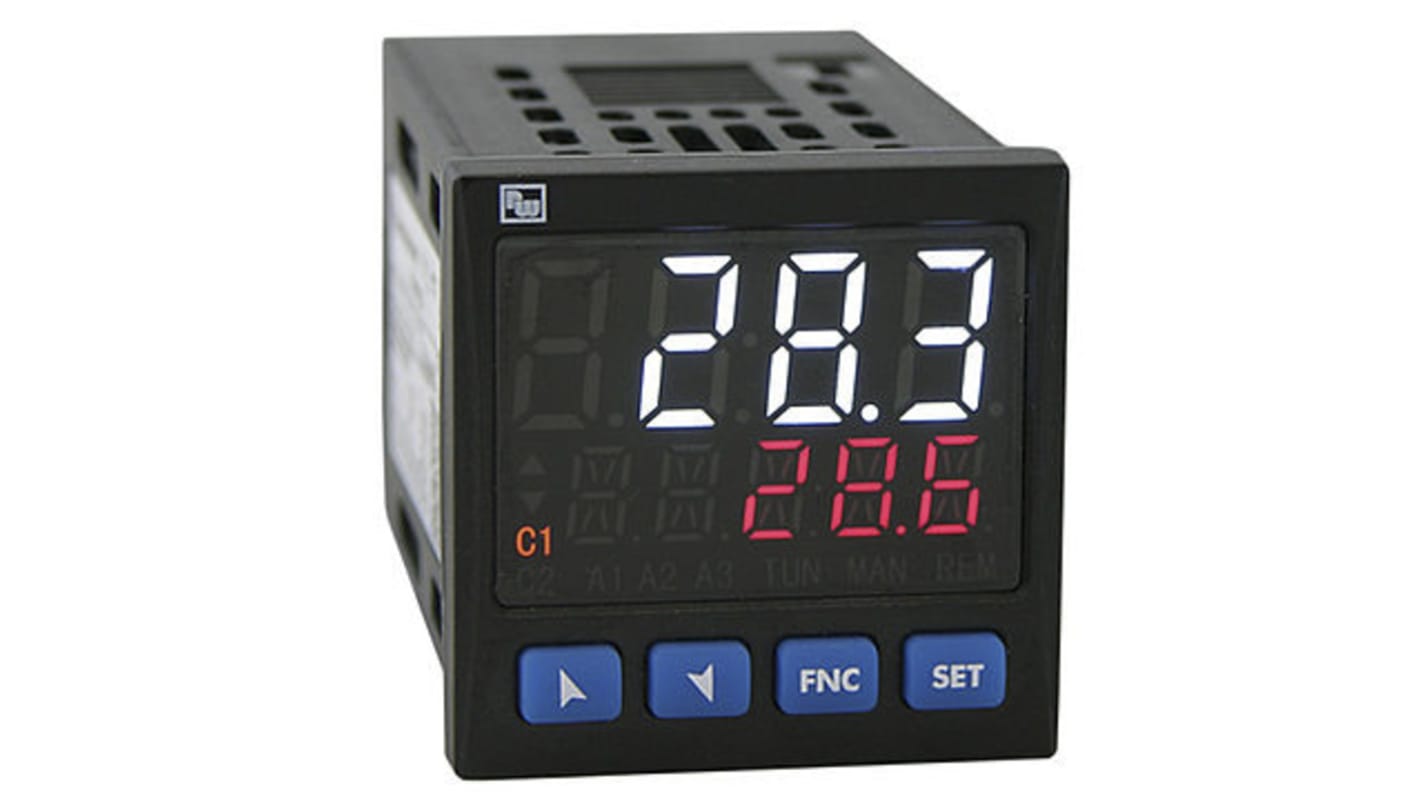

Wachendorff Universal PID-Controller UR4848xA
PID-Controller in 48 mm x 48 mm format
Universal input for process signals, thermocouples, Pt100, Pt500, Pt1000 and RTD
Universal input for process signals, thermocouples, Pt100, Pt500, Pt1000 and RTD
사양
속성 | 값 |
|---|---|
| Output Type | Analogue, Relay, SSR |
| Supply Voltage | 24 → 230 V ac/dc |
| Size | 48 x 48mm |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +45°C |
| Temperature Range | 0 → +45 °C |
| Communication Module Available | Yes |
| Display Type | Multi Line |
| IP Rating | IP20, IP65 |
| Additional Functionality | PID Controller |
| Series | UR4848xA |
| Input Type | Thermocouple |
| Panel Depth | 80mm |
