Jumo 701170 Panel Mount Controller, 96 x 48mm 1 Input, 110 → 240 V ac Supply Voltage Controller
- RS 제품 번호:
- 278-756
- 제조사 부품 번호:
- 701170/8-0153-1001-23/000,000
- 제조업체:
- Jumo
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 278-756
- 제조사 부품 번호:
- 701170/8-0153-1001-23/000,000
- 제조업체:
- Jumo
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Jumo | |
| Supply Voltage | 110 → 240 V ac | |
| Size | 96 x 48mm | |
| Number of Inputs | 1 | |
| Control Type | Controller | |
| Mounting Type | Panel Mount | |
| Series | 701170 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Jumo | ||
Supply Voltage 110 → 240 V ac | ||
Size 96 x 48mm | ||
Number of Inputs 1 | ||
Control Type Controller | ||
Mounting Type Panel Mount | ||
Series 701170 | ||
- COO (Country of Origin):
- DE

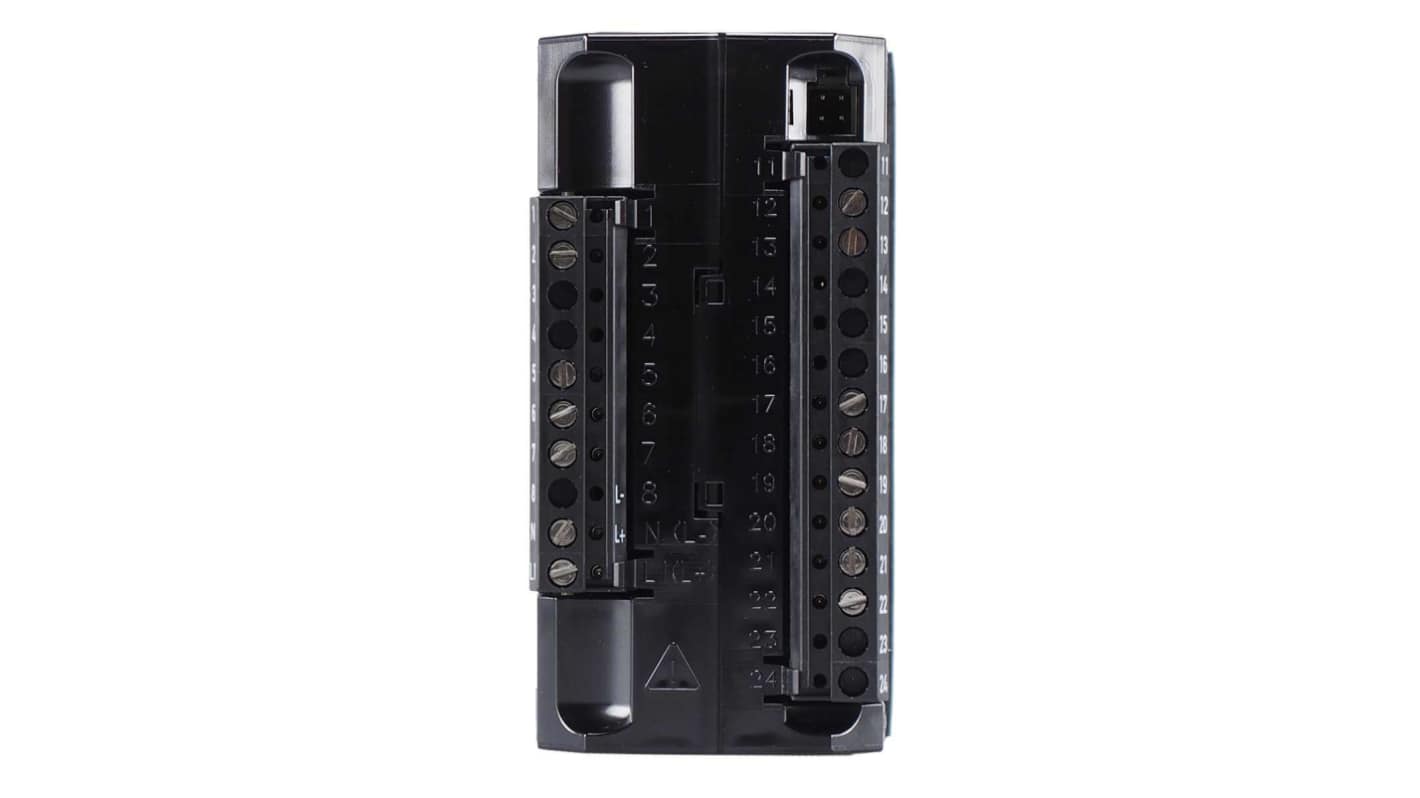

The Jumo Freely Programmable Temperature Limiter according to DIN EN 14597 in format 48 x 96 mm is made for a voltage supply range of AC 110 to 240 V, 48 to 63 Hz, 5 VA. The measurement input is freely configurable for RTD temperature probe, thermocouples, current and voltage signal. Temperature limiter, -monitor watch thermal processes in systems on a set limit value. If this exceed, the integrated relay (with fuse cut-out) switch the system into a safe operating status. When the system gets back to the valid range, on the temperature limiter operation the button Reset needs to be pressed. Configured as an temperature monitor it reset on it's own. The relay KV with a adjustable temperature dispense a pre-alarm signal before the set limit value is archieved. The device is designed for the panel mounting and is wired with pluggable screw terminal with a conductor cross section of max. 2.5 mm².
Green LED OK expire and the LED K1 lights red
Switching status is also shown on the LED KV
Switching status is also shown on the LED KV
