    Recom Switching Power Supply, 12V dc, ±166mA, 4W, 1 Output

    RS 제품 번호:
    166-6756
    제조사 부품 번호:
    RAC04-12DC/277-E
    제조업체:
    Recom
    Recom
    모든 Switching Power Supplies 열람하기
    3 <재고있음> 5-9영업일내 홍콩 발송
    Add to Basket
    Tube(s)

    추가완료!

    단가 1 Tube of 12

    ₩386,228.50

    Tube(s)Per Tube한팩당*
    1 - 1₩386,228.50₩32,186.00
    2 - 3₩377,732.25₩31,477.25
    4 +₩369,621.00₩30,801.75
    *다른 단위에 대한 가격 표시
    RS 제품 번호:
    166-6756
    제조사 부품 번호:
    RAC04-12DC/277-E
    제조업체:
    Recom
    COO (Country of Origin):
    TW

    참조 문서


    제정법과 컴플라이언스

    COO (Country of Origin):
    TW

    제품 세부 사항

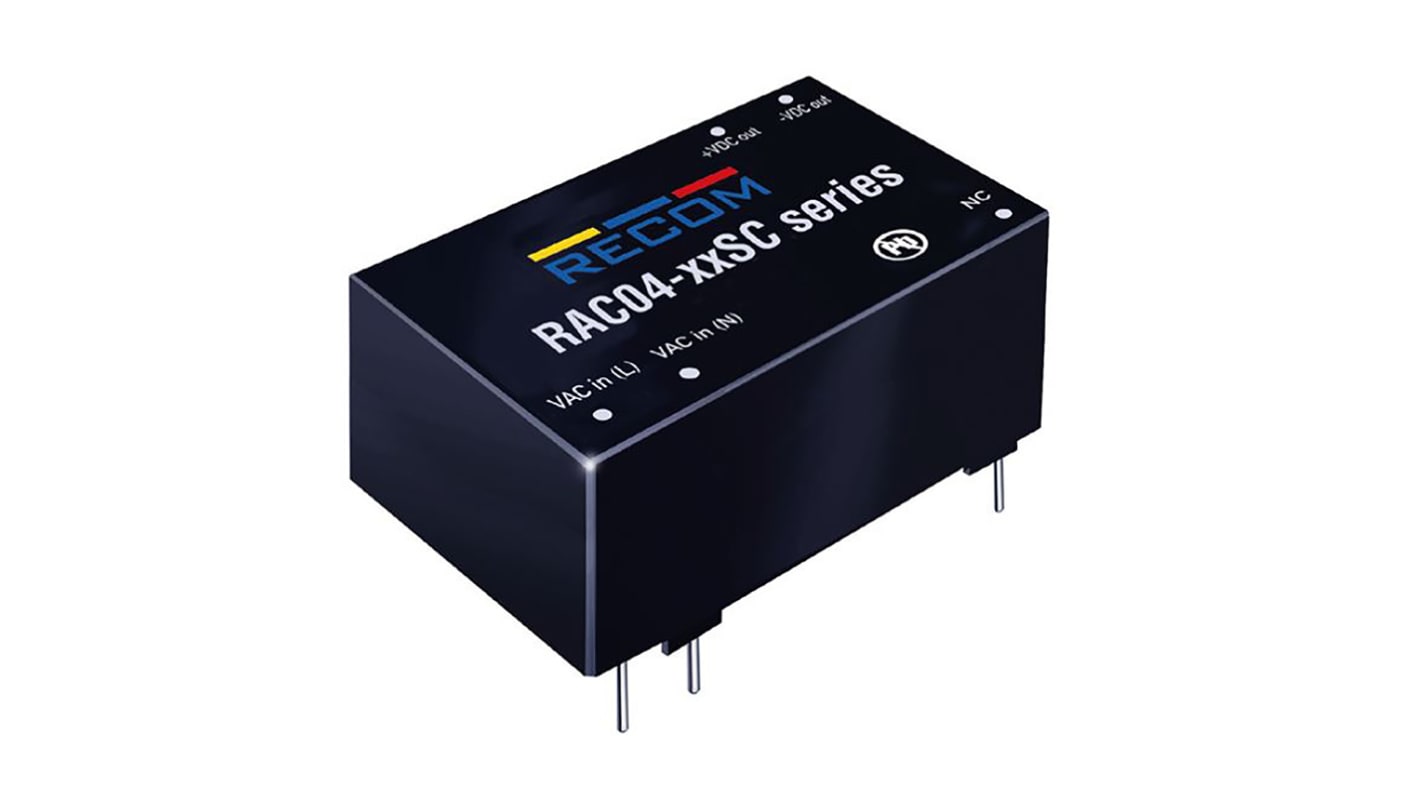

    Recom 4W, PCB Mount, Encapsulated, Switch Mode Single and Dual AC-DC Converters - RAC04-C/277 Series


    The RAC04-xxS_DC/277 series are fully certiἀed single and dual regulated AC/DC converters in an encapsulated PCB-mount package style with 3.75kVAC isolation and very low stand-by power consumption. The modules are suitable for worldwide use due to their wide input voltage range from 80VAC to 305VAC. Possible uses include home automation, standby applications and industrial controls.

    50mW max. No Load Power Consumption
    High Efἀciency up to 79%• Isolated Output 3.75kVAC / 1 min
    SCP, OVP Protection
    Wide Operating Temperature Range: -40°C to +80°C (only with sufἀx „-E“)
    Universal Input 80-305VAC

    RECOM Switching Power Supply, 80 to 305V AC Supply Voltage, 36.7mm Length - RAC04-C/277 Series - RAC04-12DC/277-E


    For quick energy changes, turn to this switching power supply from RECOM. It delivers DC voltage directly from an AC load with a hold-up time of just 15ms, so there's no hanging around. As the unit accepts voltages between 80 to 305V AC, it's a versatile component that's widely compatible. To keep your system energised and productive, the package is encapsulated package so electromagnetic interference is minimised. Installation is a quick fix thanks to straightforward PCB mounting.

    • Broad operating temperature range between -40°C and +80°C makes it suitable for use in harsh environments
    • 78% efficiency rating minimises energy wastage
    • Light 41g weight doesn't add unnecessary load to your setup
    • Built-in automatic recovery function restarts operations after short-circuiting for optimised performance
    • UL 94 V-0 flammability-rated housing stops burning in 10 seconds in the event of a fire

    Applications


    • Industrial automation
    • Process control
    • Power supply services

    What size is this unit?


    This product has compact dimensions of 36.7 (L) x 27.2 (W) x 17.1mm (D), so it's an ideal choice in setups where space is at a premium.


    사양

    속성
    Output Voltage12V dc
    Output Current±166mA
    Power Rating4W
    Number of Outputs1
    Input Voltage80 → 305V ac
    Mounting TypeSurface Mount
    Package TypeEncapsulated
    Length36.7mm
    Width27.2mm
    Depth17.1mm
    SeriesRAC04-C/277
    Efficiency78%
    Weight41g
    Maximum Temperature+80°C
    Minimum Temperature-40°C
