Rittal Ripac VARIO Series 3U Aluminium Rack Mount Chassis, 84HP, 245mm Depth
- RS 제품 번호:
- 186-832
- 제조사 부품 번호:
- 3684128
- 제조업체:
- Rittal
단종
- RS 제품 번호:
- 186-832
- 제조사 부품 번호:
- 3684128
- 제조업체:
- Rittal
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항

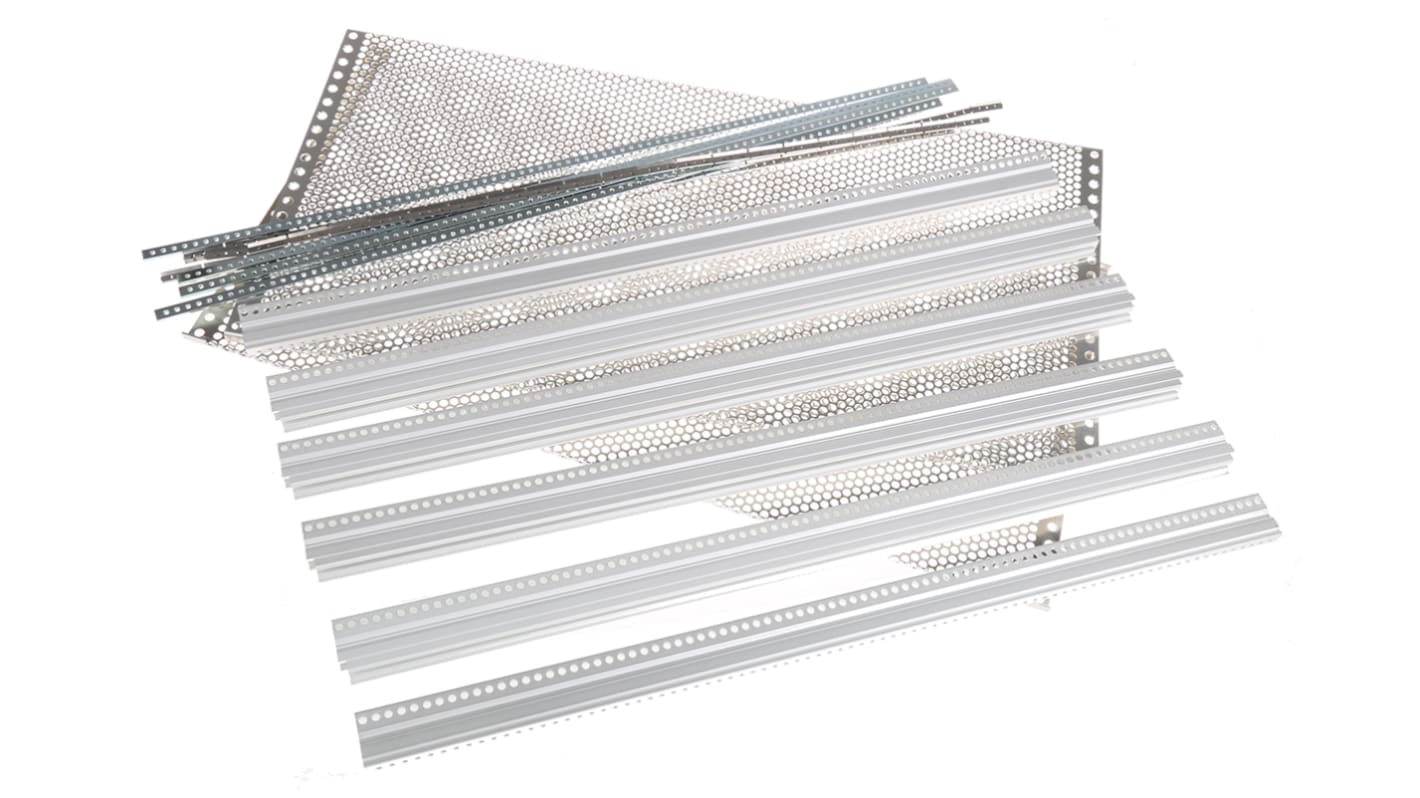

Ripac EMC Sub-Rack Kit
A version of the Ripac Vario sub-rack equipped for EMC with gaskets and covers. Requires EMC panels front and rear to complete the Faraday Cage. Kit consists of:
Side Plates: 2.5mm Aluminium, Clear Chromated
Front and Rear horizontal Rails: Aluminium, Clear Chromated
Flanges: Aluminium, Clear Chromated
Threaded inserts
Rear trims
Covers: Aluminium, unplated
Horizontal and Vertical EMC gaskets
Assembly screws
Front and Rear horizontal Rails: Aluminium, Clear Chromated
Flanges: Aluminium, Clear Chromated
Threaded inserts
Rear trims
Covers: Aluminium, unplated
Horizontal and Vertical EMC gaskets
Assembly screws
Caution
Ripac Vario EMC sub-racks are designed to enable systems to comply with 89/336EC, for which, the complete system will need to be tested in operational mode.
Standards
IEC 60 297-3 to 5.
Approvals
IEC 600-68-2-6 test Fc, IEC 600-68-2-27 test Ea
Ripac Vario and EMC Sub-Racks
A universal, flexible, sub-rack range, capable of EMC upgrade, for mounting Euroboards and double Euroboards and plug-in modules, in 482.6mm (19”) racks.
사양
속성 | 값 |
|---|---|
| Rack Units | 3U |
| Series | Ripac VARIO |
| Horizontal Pitch | 84HP |
| Depth | 245mm |
| Colour | Natural |
| Material | Aluminium |
| Dimensions | 129.4 x 482.6 x 245mm |
| Height | 129.4mm |
| Width | 482.6mm |
