RS PRO Hybrid, Permanent Magnet Stepper Motor, 1.89Nm Torque, 3.2 V, 1.8°, 56.4 x 56.4mm Frame, 6.35mm Shaft
- RS 제품 번호:
- 535-0445
- 제조업체:
- RS PRO
가격 개당**
₩82,381.60
50 재고있음 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
재고 확인하기
수량 | 한팩당 |
---|---|
1 + | ₩82,381.60 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 535-0445
- 제조업체:
- RS PRO
제외

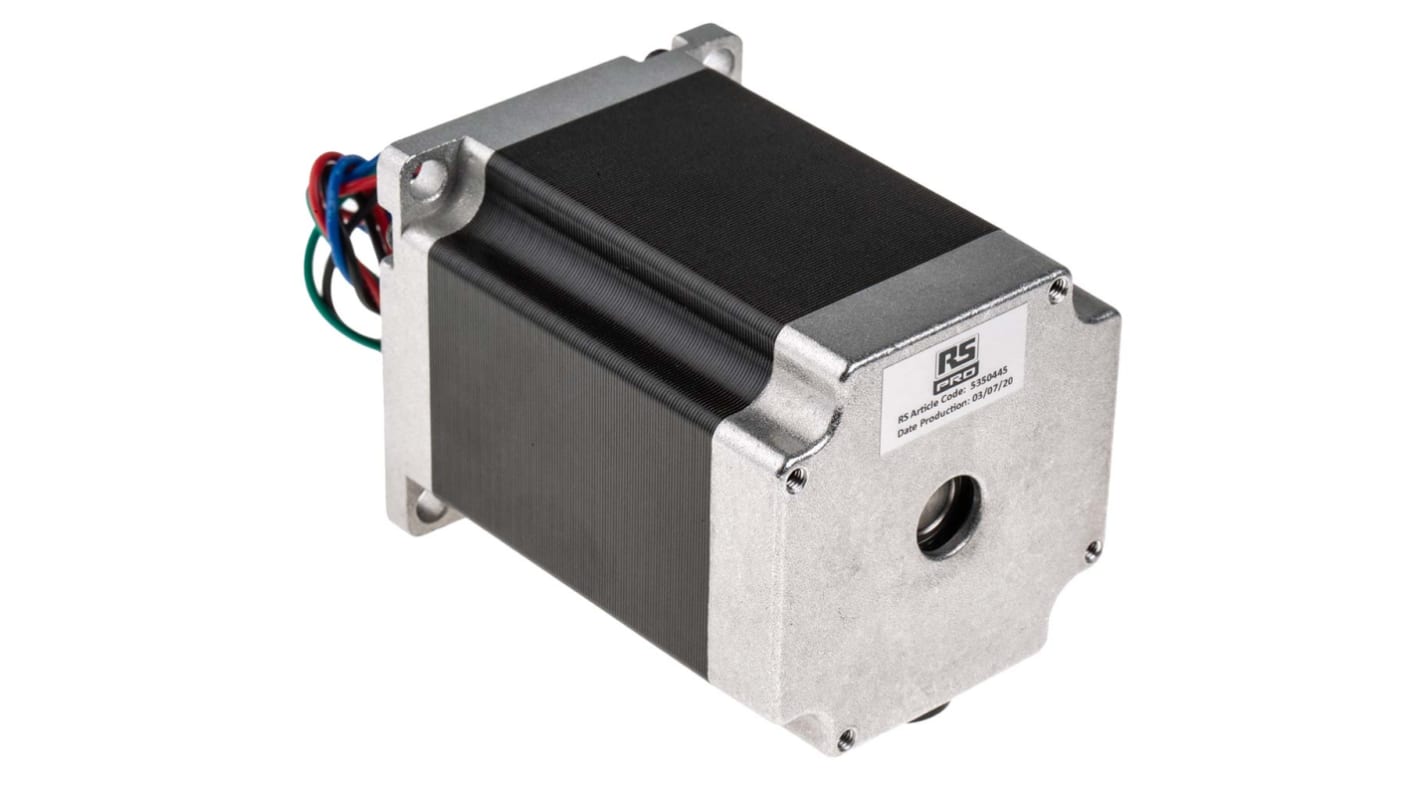

RS PRO Hybrid Stepper Motor 1.8°, 1.89 Nm, 3.2 V, 2.8 A, 4 Wires
Use this RS PRO hybrid stepper motor to make controlled and precise movements with electric devices. Stepper motors are brushless assemblies and you can use them to divide full motor rotations into smaller, equal steps. This improves precision and efficiency at reduced speeds. This hybrid stepper will maximise power using variable reluctance motor technology and an integrated permanent magnet.
As part of the RS PRO range, it's been stringently tested by engineers for quality and reliability. It's RoHS (Restriction of Hazardous Substances) compliant, too, which means that it doesn't contain harmful levels of any hazardous materials such as lead.
These motors have a range of commercial uses and you'll find them in everything from camera lenses and DVD players to 3D printers. They're also commonly found in lasers and optics, where they work as part of complex devices such as linear actuators, rotation stages and goniometers.
As part of the RS PRO range, it's been stringently tested by engineers for quality and reliability. It's RoHS (Restriction of Hazardous Substances) compliant, too, which means that it doesn't contain harmful levels of any hazardous materials such as lead.
These motors have a range of commercial uses and you'll find them in everything from camera lenses and DVD players to 3D printers. They're also commonly found in lasers and optics, where they work as part of complex devices such as linear actuators, rotation stages and goniometers.
Features and Benefits
• Step angle of 1.8°
• Holding torque of 1.89 Nm
• Detent torgue of 72 mNm
• Four-wire bipolar winding
• Voltage rating of 3.2 V
• Frame size of 56.4 x 56.4 mm
• Hybrid stepper motor type
• Current rating of 2.8 A
• Depth of 76 mm
• Resistance per phase of 1.13 Ω
• RoHS (Restriction of Hazardous Substances) compliant product
• Holding torque of 1.89 Nm
• Detent torgue of 72 mNm
• Four-wire bipolar winding
• Voltage rating of 3.2 V
• Frame size of 56.4 x 56.4 mm
• Hybrid stepper motor type
• Current rating of 2.8 A
• Depth of 76 mm
• Resistance per phase of 1.13 Ω
• RoHS (Restriction of Hazardous Substances) compliant product
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
속성 | 값 |
---|---|
Stepper Motor Type | Hybrid, Permanent Magnet |
Step Angle | 1.8° |
Holding Torque | 1.89Nm |
Number Of Wires | 4 |
Supply Voltage | 3.2 V |
Frame Size | 56.4 x 56.4mm |
Shaft Diameter | 6.35mm |
Current Rating | 2.8 A |
Shaft Length | 19mm |
Depth | 76mm |
Resistance Per Phase | 1.13Ω |
Detent Torque | 72mNm |
Standards Met | RoHS Compliant |
