- RS 제품 번호:
- 195-3197
- 제조사 부품 번호:
- N9322C
- 제조업체:
- Keysight Technologies
개 12/06/2024(일/월/년)에 홍콩에 입고되며, 그 후 1-2 영업일 이내에 발송.
추가완료!
단가 개당
₩21,279,660.075
수량 | 한팩당 |
1 + | ₩21,279,660.075 |
- RS 제품 번호:
- 195-3197
- 제조사 부품 번호:
- N9322C
- 제조업체:
- Keysight Technologies
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항

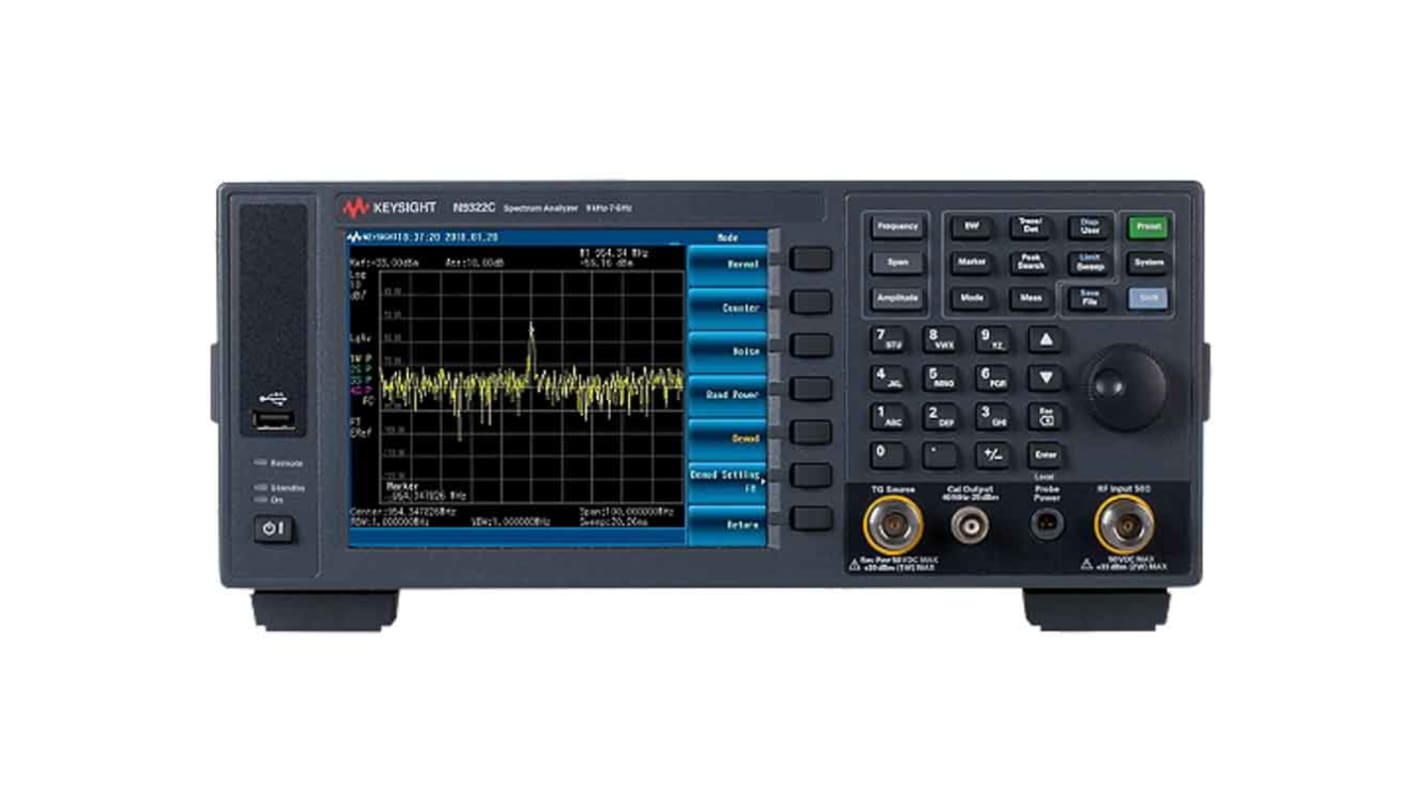

Keysight Technologies Spectrum Analyser, 9kHz to 7GHz Bandwidth, 7.9kg Weight - N9322C
Are your wireless signals going haywire? Choose this spectrum analyser from Keysight Technologies to root out the source of distortion and noise in radio frequency signals. You can use it to carry out up to 20 predefined measurements automatically, so there's no need for manual operation. The task planner feature lays the groundwork for you to slash set-up time. User-definable softkeys let you store up to seven of your most frequently used measurements, so they're conveniently at your fingertips. A broad bandwidth of 9kHz to 7GHz makes this spectrum analyser practical for general-purpose frequency measurements.
Features & Benefits
• USB and LAN connectivity options for simple data transfer to a PC
• SCPI programming language that's easy for most programmers to understand and use
• Marker demodulation lets you separate a signal from its carrier easily
• One-button optimisation for efficiency and ease of use
• SCPI programming language that's easy for most programmers to understand and use
• Marker demodulation lets you separate a signal from its carrier easily
• One-button optimisation for efficiency and ease of use
Applications
• Industrial control centres
• Aerospace engineering
• Telecommunications
• Aerospace engineering
• Telecommunications
Can I use this spectrum analyser at extreme temperatures?
This product has a broad operating temperature range of +5°C to +45°C, so it can stand up to use in harsh industrial environments.
사양
속성 | 값 |
---|---|
Bandwidth | 9 kHz → 7 GHz |
Number of Channels | 20 (Display) |
Sweep Modes | Continuous, Single |
Maximum Frequency | 7GHz |
Minimum Frequency | 9 kHz |
Screen Size | 640 x 480pixel |
Markers | Frequency |
RF Input | N-Type Female |
Interface Type | Ethernet |
Desktop/Handheld | Desktop |
Model Number p | N9322C |
Maximum Operating Temperature | +45°C |
Length | 400mm |
Weight | 7.9kg |
Width | 320mm |
Height | 132.5mm |
Minimum Operating Temperature | +5°C |
Dimensions | 400 x 320 x 132.5mm |
