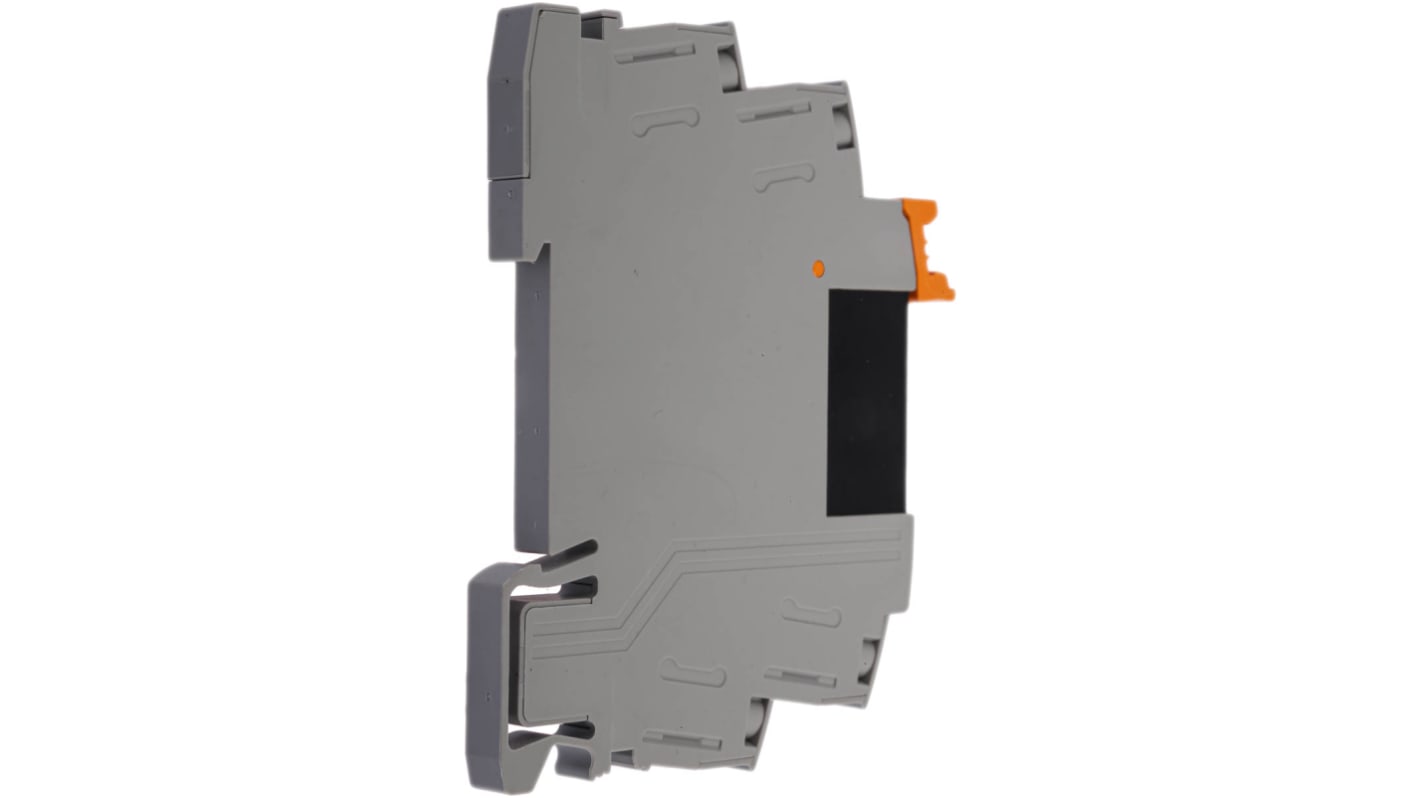

Phoenix Contact RIF-0-OSC-24DC/24DC/2 Series Solid State Interface Relay, DIN Rail Mount

현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.

대체품

이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.

presentation
Phoenix Contact RIF-0-OPT Series Solid State Interface Relay, 28.8 V dc Control, 3 A Load, DIN Rail Mount
RS 제품 번호
207-3310

개당가격(10개가 1팩안에)

₩36,287.76

RS 제품 번호:
175-0514
제조사 부품 번호:
2905657
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Mounting Type

DIN Rail

Switching Type

1N/O

Contact Configuration

SPST

Terminal Type

Screw

Depth

68mm

Width

6.2mm

Length

6.2mm

Series

RIF-0-OSC-24DC/24DC/2

Height

84mm

Minimum Operating Temperature

-25°C

Dimensions

6.2 x 68 x 84mm

Special Features

IP20 Relay Base

Standards Met

DIN EN 50178, UL 94

Maximum Operating Temperature

+60°C

Manufacturer Part No.

2905657

Operating Temperature Range

-25 → +60°C

COO (Country of Origin):
HU

Phoenix Contact RIF-0-OSC-24DC/24DC/2 Series Solid State Interface Relay, IP20, 6.2x84x68mm - 2905657


This solid-state relay module features a nominal input voltage of 24 V DC and a 1 N/O contact switching type. It supports an output voltage range of 3 V DC to 33 V DC with a continuous current capacity of 3 A. The design conforms to overvoltage category III.

Features & Benefits


• Compact size for tight installations
• IP20 rated base
• Operates efficiently at -25°C to +60°C
• 1N/O switching type
• Screw terminal connection
• LED status indicator

Applications


• Industrial automation systems
• Control circuits in machines
• Relay logic applications
• Interfacing between different voltage systems

What is the typical response time of this relay?


The typical response time is 20 μs.

Does it include surge protection?


Yes, it includes reverse polarity protection and surge voltage protection.
