Martindale, Model PC104/32 Socket Tester 32A CAT III 300 V
- RS 제품 번호:
- 776-2008
- 제조사 부품 번호:
- PC104-32
- 제조업체:
- Martindale
- RS 제품 번호:
- 776-2008
- 제조사 부품 번호:
- PC104-32
- 제조업체:
- Martindale
제정법과 컴플라이언스
제품 세부 사항

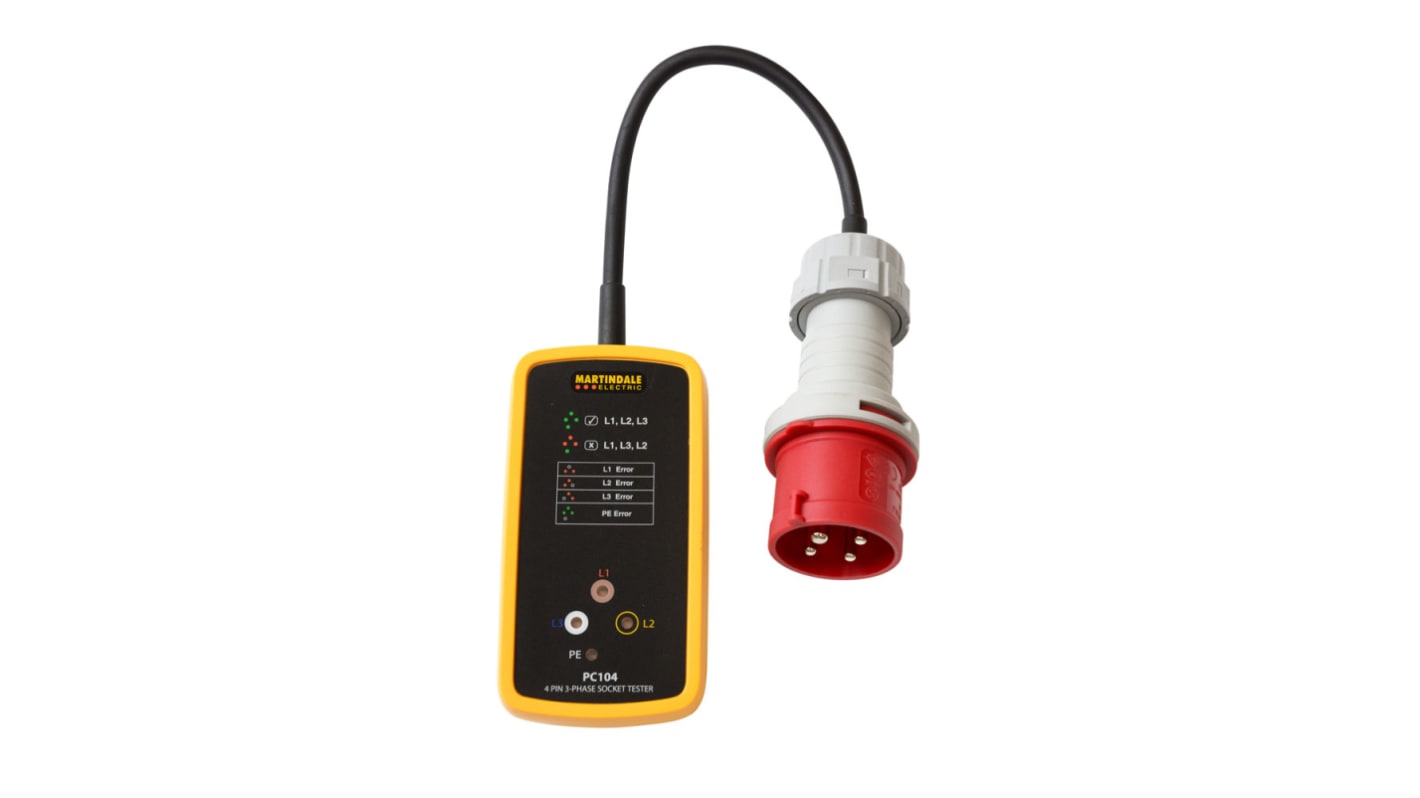

PC104 3 Phase Industrial Socket Tester
The PC104 is a 3 phase socket tester designed to quickly check for the presence of phase, phase sequence and PE in 4 pin, 16A, 32A and 63A sockets.
This device includes a four-pin socket for connection to compatible sockets which is attached via a cable to the main body of the socket tester
Once it's connected up the device will evaluate phase presence, phase sequence and PE presence and display the results as coloured LED indicators
The device includes a handy guide on the front that shows the different possible LED indications
L1, L2 and L3 are present
L1, L2 and L3 are missing, PE present
L1 error
L2 error
L3 error
PE error
Once it's connected up the device will evaluate phase presence, phase sequence and PE presence and display the results as coloured LED indicators
The device includes a handy guide on the front that shows the different possible LED indications
L1, L2 and L3 are present
L1, L2 and L3 are missing, PE present
L1 error
L2 error
L3 error
PE error
사양
속성 | 값 |
|---|---|
| Current Rating | 32A |
| Earth Loop Impedance Test | Yes |
| Number of Pins | 4 |
| Wiring Check | Yes |
| Display Type | Front Panel |
| Safety Category | CAT III 300 V |
| Power Source | Mains |
| Dimensions | 131 x 94 x 54mm |
| Weight | 292g |
| Height | 54mm |
| Width | 94mm |
| Length | 131mm |
| Safety Category Voltage | 300V |
| Model Number p | PC104/32 |
| Safety Category Level | CAT III |
