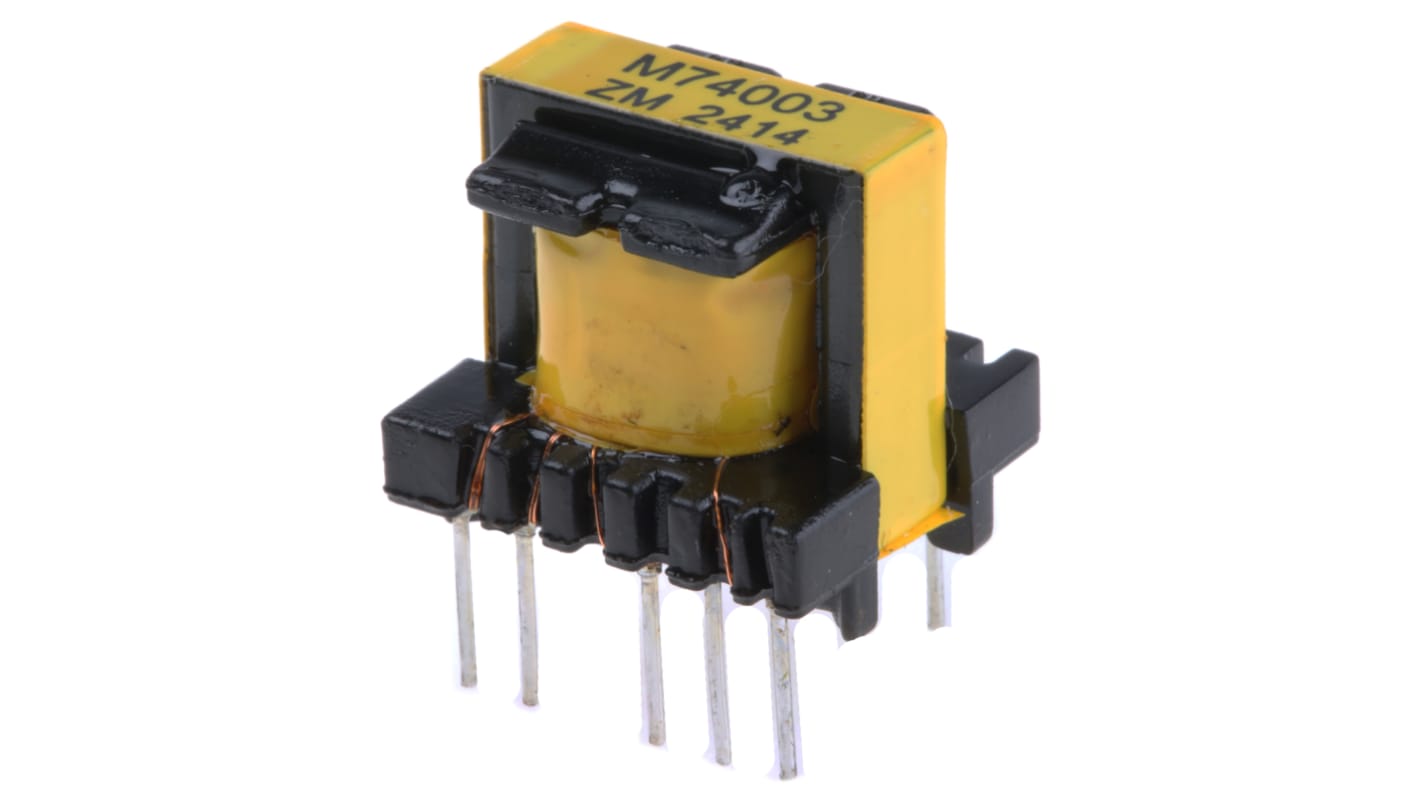

2 Output 3 → 6W Flyback SMPS Transformer, 85 → 265V ac, 2.5 → 4 V ac, 3 → 6 V ac

RS 제품 번호:: 418-5509
제조사 부품 번호:: 74003
제조업체:: Myrra

2 Output 3 → 6W Flyback SMPS Transformer, 85 → 265V ac, 2.5 → 4 V ac, 3 → 6 V ac

본 제품군 열람하기

43 <재고있음> 5-9영업일내 홍콩 발송

단가 개당

₩11,612.027

수량	한팩당
1 - 24	₩11,612.027
25 - 49	₩11,260.147
50 - 99	₩10,909.993
100 - 249	₩10,678.856
250 +	₩10,447.719

RS 제품 번호:: 418-5509
제조사 부품 번호:: 74003
제조업체:: Myrra

참조 문서

제정법과 컴플라이언스

COO (Country of Origin):: FR

제품 세부 사항

Switch mode power transformers format E16 & EL19, 1 W → 16 W

Transformers forming the core of a switch mode power supply, in association with a specialist circuit (VIPer, TOPSwitch, CoolSet, or control circuit + Mosfet).
The secondaries can be connected in series.
Materials comply with UL94-V0.

Standards

IEC 950, IEC 61558 for reinforced insulation

Open Frame - Laminated

PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

Double section metric bobbin construction
Full varnish impregnation

사양

속성	값
Secondary Voltage Rating	2.5 → 4 V ac, 3 → 6 V ac
Primary Voltage Rating	85 → 265V ac
Power Rating	3 → 6W
Number of Outputs	2
Mounting Type	Through Hole
Application	Flyback
Secondary Current	1.2 A, 1.8 A
Termination Type	Pin
Length	18mm
Width	17.5mm
Depth	16mm
Dimensions	18 x 17.5 x 16mm
Number of Phases	1
Construction	CEI335, CEI61558, CEI950
Maximum Temperature	+50°C
Maximum Operating Frequency	70kHz
