BL4S110 SBC,Ethernet
- RS 제품 번호 667-2890
- 제조사 부품 번호 20-101-1256
- 제조업체 Rabbit Semiconductor

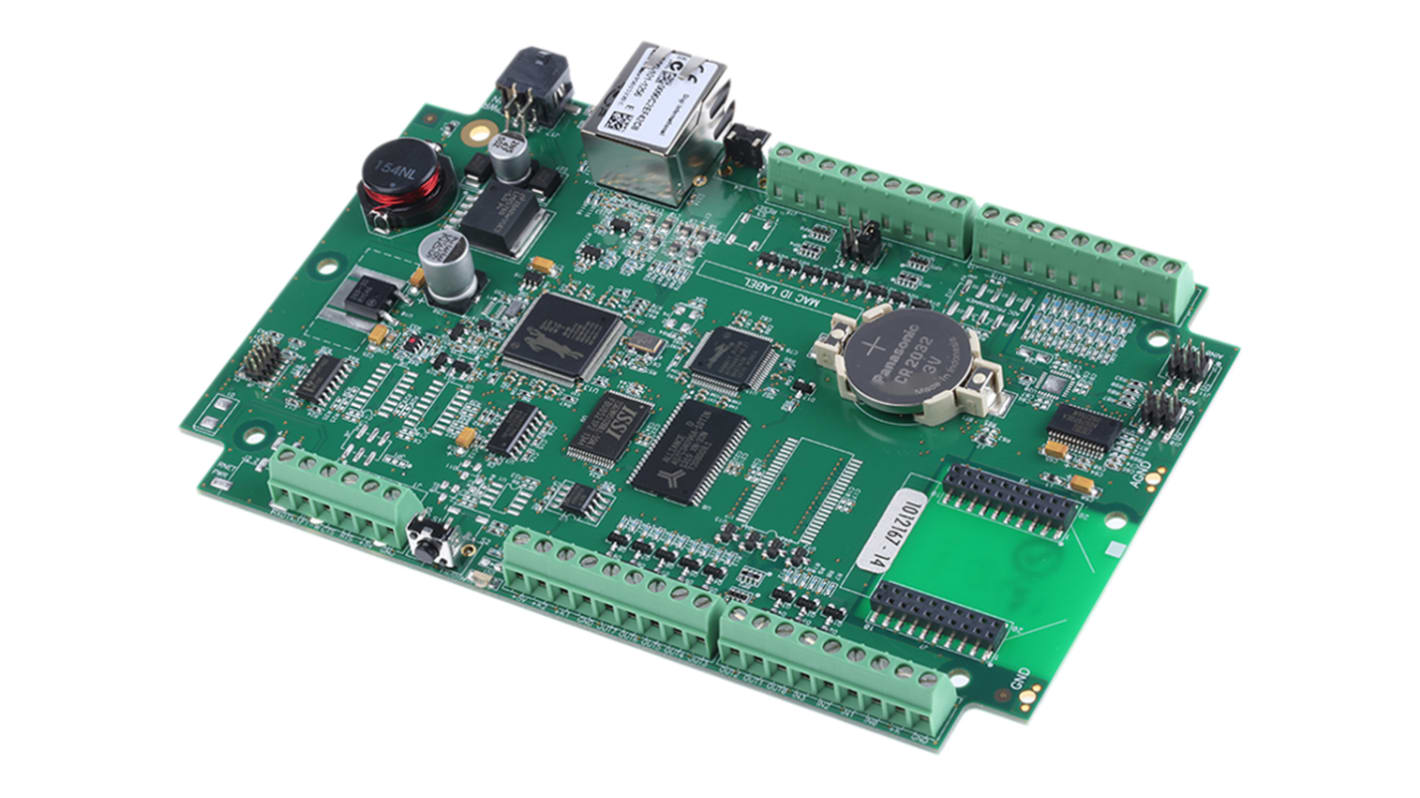

BL4S1x0 Industrial Single-Board Controller
The BL4S110 is an industrial-quality SBC based on the Rabbit 4000 microcontroller designed specifically for embedded control, communications and Ethernet connectivity. The Dynamic C programming environment reduces development time and a full TCP/IP stack with source code is provided royalty-free.
• 40MHz Rabbit 4000 MPU with extended low-power 'sleepy' modes
• On-board 1MB serial Flash program memory
• On-board 512KB program execution SRAM
• On-board 512KB data SRAM
• 10Base-T Ethernet connectivity via RJ45 socket
• 12 x protected (±36Vdc) digital inputs
• 8 x digital outputs (sink 200mA each @ +36Vdc max)
• 1 x RS-232 + RTS/CTS, 2 x RS-232 or 3 x UART serial ports
• 8 x 11-bit analogue input channels (Four can be set up for 4-20mA current loop comms)
• Battery-backed Real-Tme Clock (RTC)
• Watchdog supervisor
• Screw-terminal GPIO connectors
• CR2032 coin-cell holder for RTC back-up
• Socket for optional Digi XBee ZigBee wireless module
• Power supply: +9 to +36Vdc via Micro-Fit connector
• Operating temperature range: -40 to +85°C
• Dimensions: 146 x 96mm
Rabbit - Digi International
Embedded Controllers and Device Servers for the Industrial environment.
| 속성 | 값 |
|---|---|
| Core Processor | Rabbit 4000 |
| Processor Clock Speed | 40MHz |
| Supported Memory | 1x SRAM |
| Installed Memory | 1 MB |
| Supported I/O Interfaces | Ethernet, RS232 x 3, Wireless |
| Supported Network Interfaces | 10 Base-T |
| Dimensions | 96 x 146 x 16mm |
| Height | 16mm |
| Width | 96mm |
| Maximum Operating Temperature | +85 °C |
| Length | 146mm |
| Number of Memory Sockets | 1x |
| Minimum Operating Temperature | -40 °C |
