Rabbit Semiconductor Rabbit 4000 CP 58.98MHz Core Module, 3 → 3.6V dc

참조 문서
제정법과 컴플라이언스
ROHS 준수
COO (Country of Origin): MX
제품 세부 사항

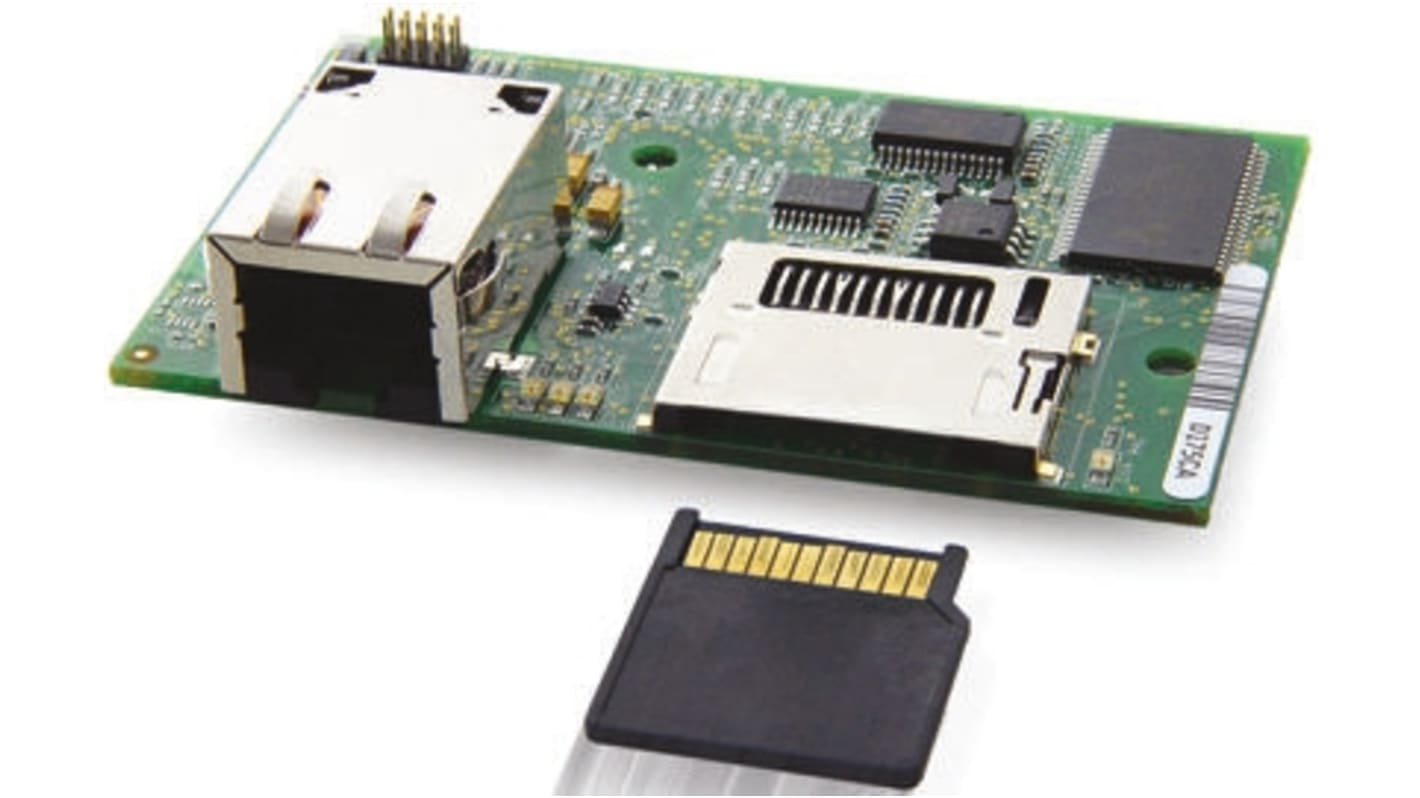

RCM4300 RabbitCore® Industrial Single-Board Controller

The RCM4300 RabbitCore processor module offers the features and performance to support data encryption, secure data transmission and web server applications. The RCM4300 module provides the capability to use up to 1GB mass storage with the industry-standard miniSD™ memory cards which can be 'hot-swapped' without powering down the module. The Dynamic C Integrated Development Environment (IDE) includes a full-featured C compiler, editor and in-circuit debugger. The RCM4300 supports a FAT file system for mass storage with the on-board SD card. Also supported are RabbitWeb for creating dynamic HTML interfaces, and Rabbit’s Transport Layer Security (TLS/SSL) implementation for secure web transactions.

• 58.98MHz Rabbit 4000 MPU • Spectrum spreader for reduced EMI (radiated emissions)
• On-board 2MB serial Flash program memory
• On-board 1MB program execution SRAM
• On-board 512KB data SRAM (battery-backable)
• Watchdog supervisor
• 28 x GPIO ports
• Up to 5 x serial ports
• 8-channel 12-bit ADC inputs (or 4-channel 11-bit Differential inputs)
• 4 x PWM outputs
• 2 x Quadrature Encoder inputs
• 10/100 Ethernet connectivity via RJ45 socket
• MiniSD card slot (up to 1GB)
• Battery-backable Real-Time Clock (RTC)
• Connectors: 50-pin IDC signal header, 10-pin IDC programming header
• Power supply: +3.3Vdc @ 350mA
• Operating temperature range: -20 to +85°C (without SD card)
• Dimensions: 72 x 47 x 21mm

Rabbit - Digi International

Embedded Controllers and Device Servers for the Industrial environment.

사양
속성
Core Processor Rabbit 4000
Supported I/O Interfaces GPIO, Parallel
Supported Network Interfaces 10/100 Base-T
Dimensions 47 x 72 x 21mm
Height 21mm
Length 72mm
Minimum Operating Temperature -20 °C
Maximum Operating Temperature +85 °C
Width 47mm
일시 품절-다음 입고 날짜는 05/03/2021 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
단가 Each (In a Tray of 12)
155,737.80
(exc. VAT)
수량
한(1)개당
Per Tray*
12 +
₩155,737.80
₩1,868,862.90
*다른 단위에 대한 가격 표시
