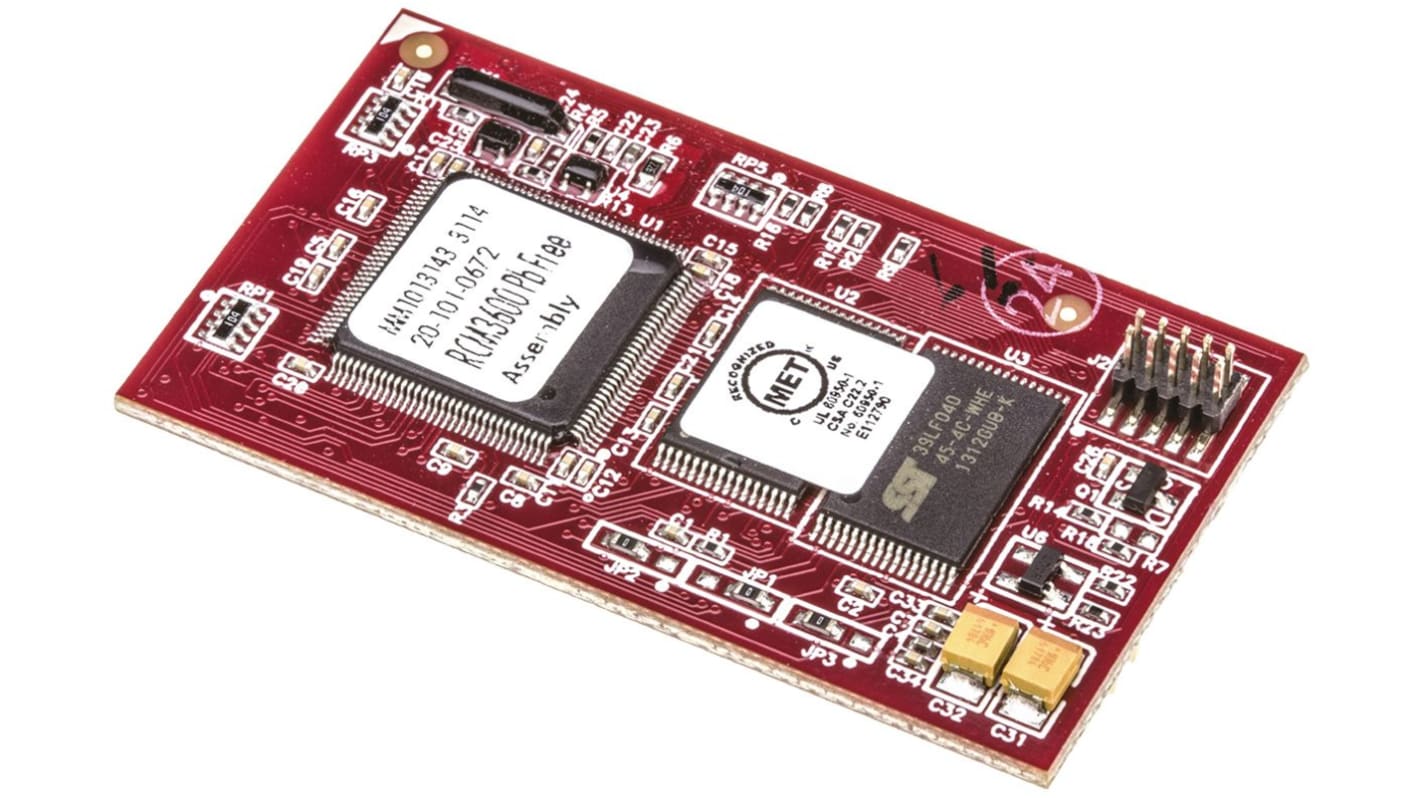

Rabbit Semiconductor Rabbit 3000 CP 22MHz Core Module, 5V
- RS 제품 번호 172-9330
- 제조사 부품 번호 20-101-0672
- 제조업체 Rabbit Semiconductor
RCM3600 RabbitCore® Industrial Single-Board Controller
The RCM3600 RabbitCore processor module offers features and performance for general purpose embedded control systems at low cost. The Dynamic C Integrated Development Environment (IDE) includes a full-featured C compiler, editor and in-circuit debugger.
• 22MHz Rabbit 3000 MPU
• Spectrum spreader for reduced EMI (radiated emissions)
• On-board 512KB program Flash memory
• On-board 512KB data SRAM (battery-backable)
• Watchdog supervisor
• 33 x GPIO ports
• Up to 4 x serial ports
• 4 x PWM outputs
• 2 x Quadrature Encoder inputs
• Battery-backable Real-Time Clock (RTC)
• Connectors: 40-pin signal header, 10-pin programming header
• Power supply: +5Vdc @ 60mA
• Operating temperature range: -40 to +85°C
• Dimensions: 54 x 31 x 16mm
Rabbit - Digi International
Embedded Controllers and Device Servers for the Industrial environment.
| 속성 | 값 |
|---|---|
| Core Processor | Rabbit 3000 |
| Supported I/O Interfaces | GPIO, Parallel |
| Dimensions | 31.2 x 53.6 x 16mm |
| Height | 16mm |
| Width | 31.2mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Length | 53.6mm |
