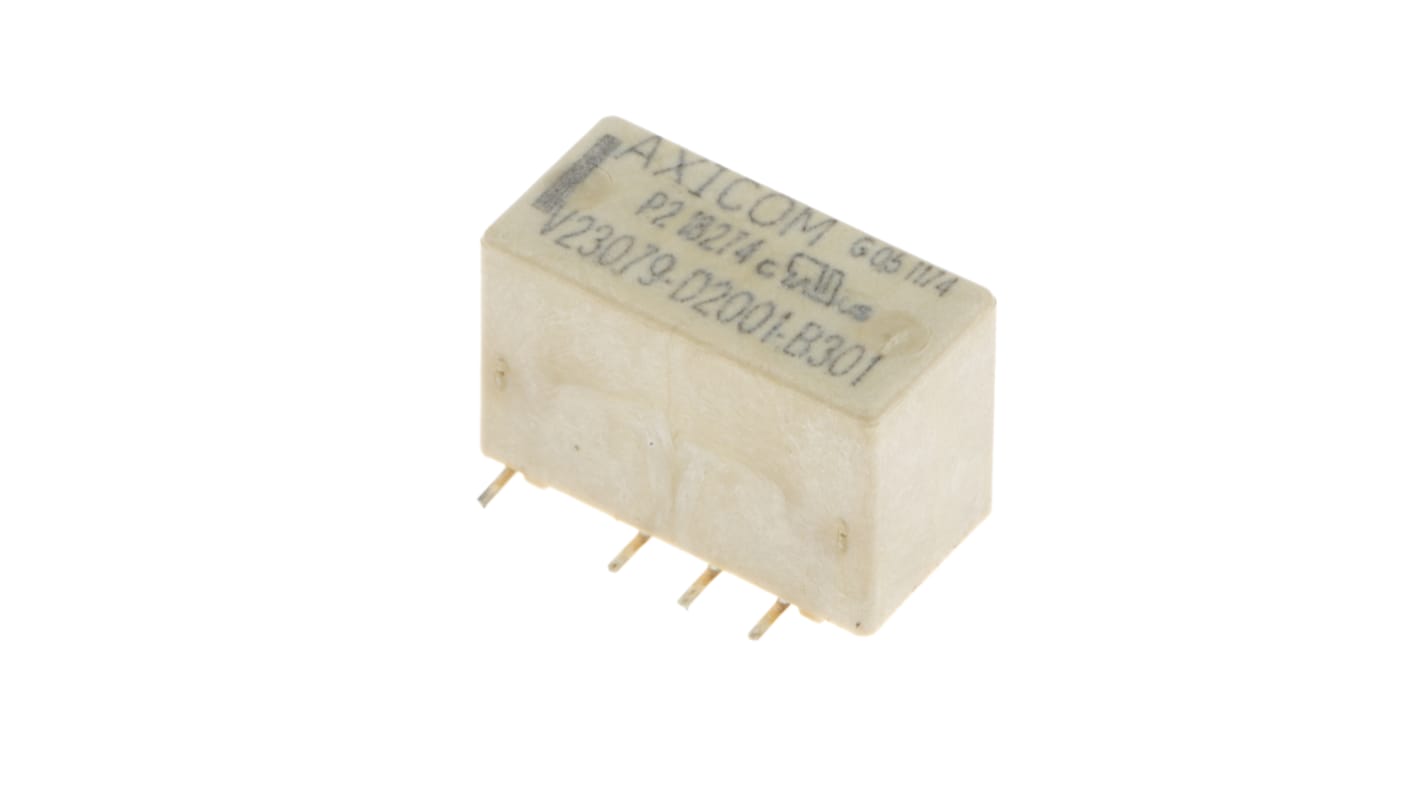

TE Connectivity Surface Mount Signal Relay, 5V dc Coil, 2A Switching Current, DPDT
- RS 제품 번호:
- 515-565
- Distrelec 제품 번호:
- 137-21-034
- 제조사 부품 번호:
- V23079-D2001-B301
- 제조업체:
- TE Connectivity
대량 구매 할인 기용 가능
가격 개당**
₩5,527.20
275 재고있음 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
재고 확인하기
수량 | 한팩당 |
|---|---|
| 1 - 14 | ₩5,527.20 |
| 15 - 49 | ₩5,470.80 |
| 50 - 99 | ₩5,433.20 |
| 100 - 249 | ₩5,414.40 |
| 250 + | ₩5,376.80 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 515-565
- Distrelec 제품 번호:
- 137-21-034
- 제조사 부품 번호:
- V23079-D2001-B301
- 제조업체:
- TE Connectivity
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Surface Mount | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 220V dc | |
| Series | Axicom P2 | |
| Maximum Switching Power DC | 60 W | |
| Latching | No | |
| Length | 14.5mm | |
| Depth | 7.4mm | |
| Height | 10.4mm | |
| Dimensions | 14.5 x 10.4 x 7.2mm | |
| Terminal Type | Surface Mount | |
| Application | Signal | |
| Switching Current | 2A | |
| Number of Poles | 2 | |
| Coil Power | 140mW | |
| Isolation Coil To Contact | 1.5kV rms | |
| Maximum Switching Power AC | 62.5 VA | |
| Coil Resistance | 178 Ω | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Gold Plated | |
| Minimum Operating Temperature | -40°C | |
| Features | Bifurcated Contacts, Immersion cleanable | |
| Operating Temperature Range | -40 → +85°C | |
모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mounting Type Surface Mount | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 220V dc | ||
Series Axicom P2 | ||
Maximum Switching Power DC 60 W | ||
Latching No | ||
Length 14.5mm | ||
Depth 7.4mm | ||
Height 10.4mm | ||
Dimensions 14.5 x 10.4 x 7.2mm | ||
Terminal Type Surface Mount | ||
Application Signal | ||
Switching Current 2A | ||
Number of Poles 2 | ||
Coil Power 140mW | ||
Isolation Coil To Contact 1.5kV rms | ||
Maximum Switching Power AC 62.5 VA | ||
Coil Resistance 178 Ω | ||
Maximum Operating Temperature +85°C | ||
Contact Material Gold Plated | ||
Minimum Operating Temperature -40°C | ||
Features Bifurcated Contacts, Immersion cleanable | ||
Operating Temperature Range -40 → +85°C | ||
