- RS 제품 번호:
- 239-179
- 제조업체:
- Oxley
477 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩37,568.322
수량 | 한팩당 |
1 - 4 | ₩37,568.322 |
5 - 9 | ₩36,067.659 |
10 + | ₩34,561.821 |
- RS 제품 번호:
- 239-179
- 제조업체:
- Oxley
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항

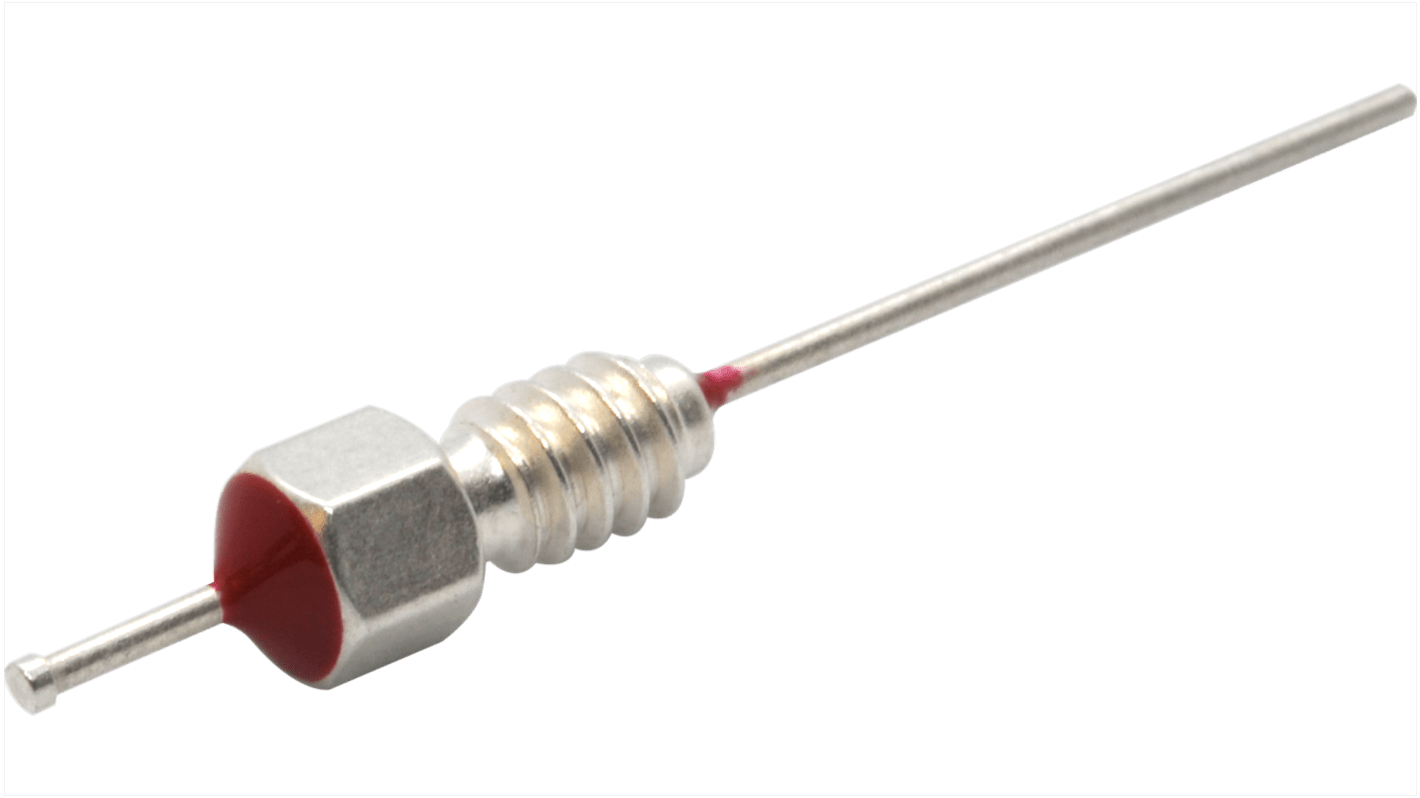

DLT4 Series
Ceramic dielectric RFI suppression filters that combine two reactive filtering elements, a miniature discoidal capacitor and ferrite inductor
The filters are encapsulated in a brass case and are intended for chassis mounting applications where space is at a premium
Ideally suited to low pass filtering applications of d.c. and signal lines
Colour coded on none threaded end for identification
The filters are encapsulated in a brass case and are intended for chassis mounting applications where space is at a premium
Ideally suited to low pass filtering applications of d.c. and signal lines
Colour coded on none threaded end for identification
사양
속성 | 값 |
---|---|
Series | DLT4 |
Maximum Current Rating | 10A |
Maximum Voltage Rating | 200 V dc |
Mounting Type | Panel Mount |
Operating Frequency | 10000MHz |
Dimensions | 36mm |
Height | 22mm |
Length | 36mm |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
Capacitance | 4.7nF |
