Analog Devices DEMO-AD5700D2Z, 4-20mA Output DAC Development Kit
- RS 제품 번호:
- 786-2993
- 제조사 부품 번호:
- DEMO-AD5700D2Z
- 제조업체:
- Analog Devices
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
- RS 제품 번호:
- 786-2993
- 제조사 부품 번호:
- DEMO-AD5700D2Z
- 제조업체:
- Analog Devices
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Analog Devices | |
| Featured Device | AD5700 | |
| Kit Classification | Development Kit | |
| Converter Type | DAC | |
| 모두 선택 | ||
|---|---|---|
브랜드 Analog Devices | ||
Featured Device AD5700 | ||
Kit Classification Development Kit | ||
Converter Type DAC | ||

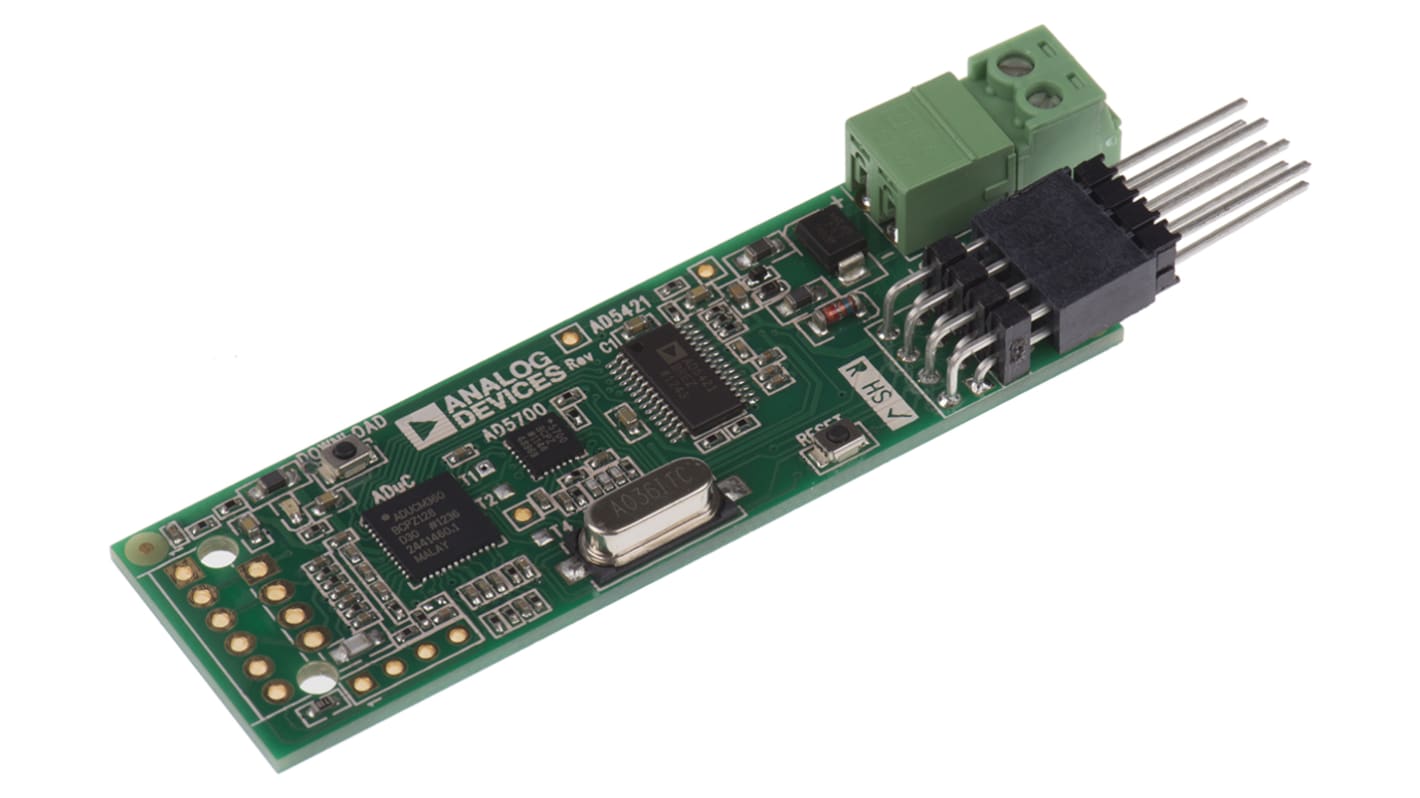

Complete 4mA to 20mA Loop Powered Field Instrument with HART® Interface Evaluation Board
This is a complete smart industrial, loop powered field instrument with 4mA to 20mA analog output and a highway addressable remote transducer (HART®) interface. HART is a digital 2-way communication in which a 1mA peak-to-peak Frequency-Shift-Keyed (FSK) signal is modulated on top of the standard 4mA to 20mA analog current signal.
The circuit uses the ADuCM360, an ultralow power, precision analogue microcontroller, the AD5421, a 16-bit, 4mA to 20mA, loop powered digital-to-analogue converter (DAC), and the AD5700, the industry’s lowest power and smallest footprint HART-compliant IC modem.
The circuit uses the ADuCM360, an ultralow power, precision analogue microcontroller, the AD5421, a 16-bit, 4mA to 20mA, loop powered digital-to-analogue converter (DAC), and the AD5700, the industry’s lowest power and smallest footprint HART-compliant IC modem.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
4mA-to-20mA Current-Loop Communication
Current loop systems are used in electrically noisy industrial environments for sending analogue sensor data over long distances of 300m or more.
