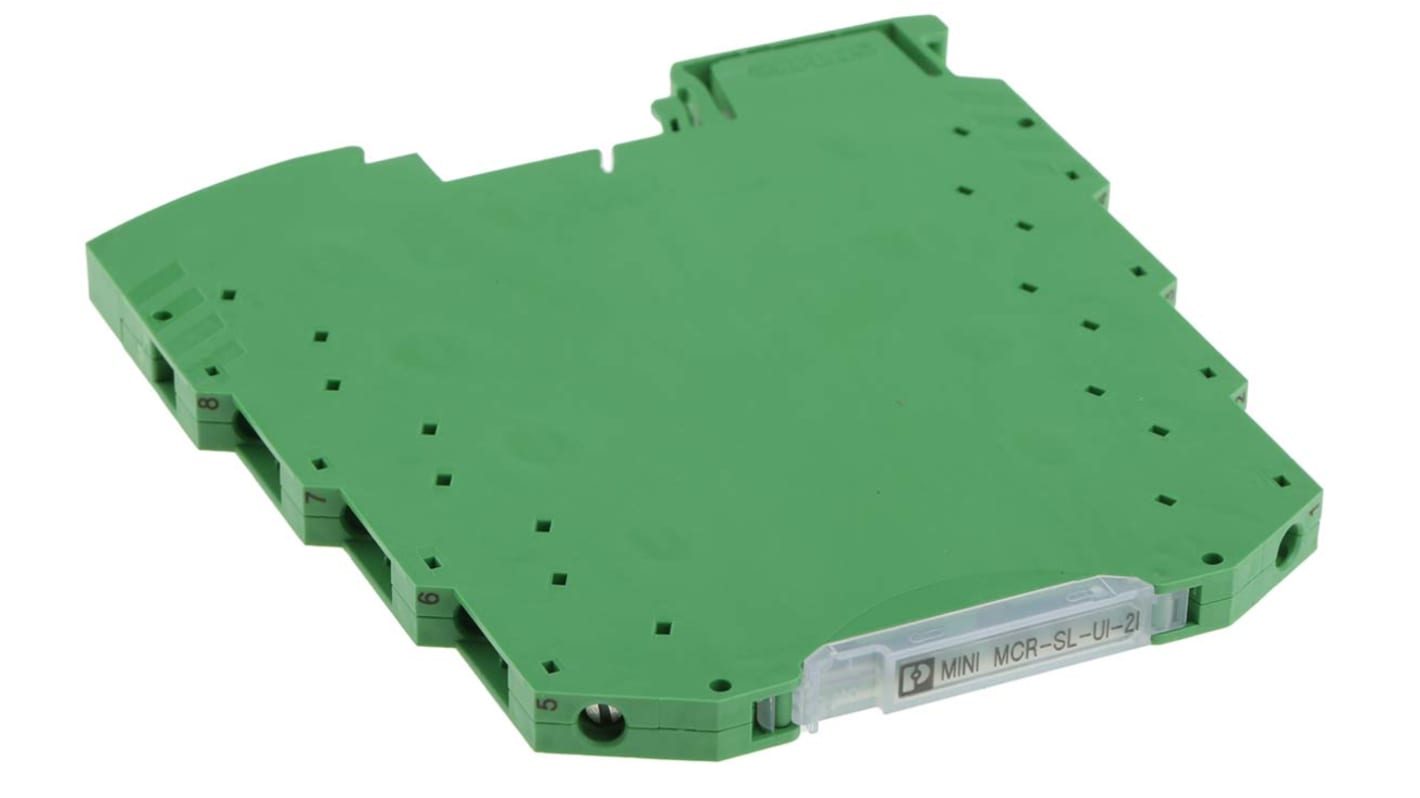

Phoenix Contact 3RS7003 Series Signal Conditioner, 24V dc, Current, Voltage Input, Current Output, ATEX
- RS 제품 번호:
- 489-2881
- 제조사 부품 번호:
- 2864176
- 제조업체:
- Phoenix Contact
모든 Signal Conditioners 열람하기
- RS 제품 번호:
- 489-2881
- 제조사 부품 번호:
- 2864176
- 제조업체:
- Phoenix Contact
- COO (Country of Origin):
- DE
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
4-way Isolated Signal Duplicator
This signal duplicator can be mounted on DIN rail individually, or with other units. The housing is 102.5mm high by 6.2mm. The performance specifications are similar to standard sized MCR products.,The inputs are listed as: 0-20mA, 4-20mA, 1-5V, 0-10V etc, only one input actually exists, and it can be configured to be one of the options listed. The same holds true for outputs.
Features and benefits:
Input, 0-20mA, 4-20mA, 0-10V, 1-5V
Outputs (two), 0-20mA, 4-20mA
Configured using dip switches
Outputs (two), 0-20mA, 4-20mA
Configured using dip switches
ATEX and zone 2:
The ATEX standard is the name given to European directives. 99/92/EC and 94/9/EC. Zone 2 is an area that is classified that an explosion could happen with air or flammable substances, however if it did occur it would only happen for a short time.
Accessories:
사양
| 속성 | 값 |
| Module Type | Isolation Amplifier |
| Input Signal Type | Current, Voltage |
| Output Signal Type | Current |
| Supply Voltage | 24V dc |
| Input Range | 0 → 10 V, 0 → 20mA |
| Output Range | 0 → 20mA |
| Hazardous Area Certification | ATEX |
| Mounting Type | DIN Rail Mount |
| Operating Temperature Range | -20 → +60°C |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Series | 3RS7003 |
