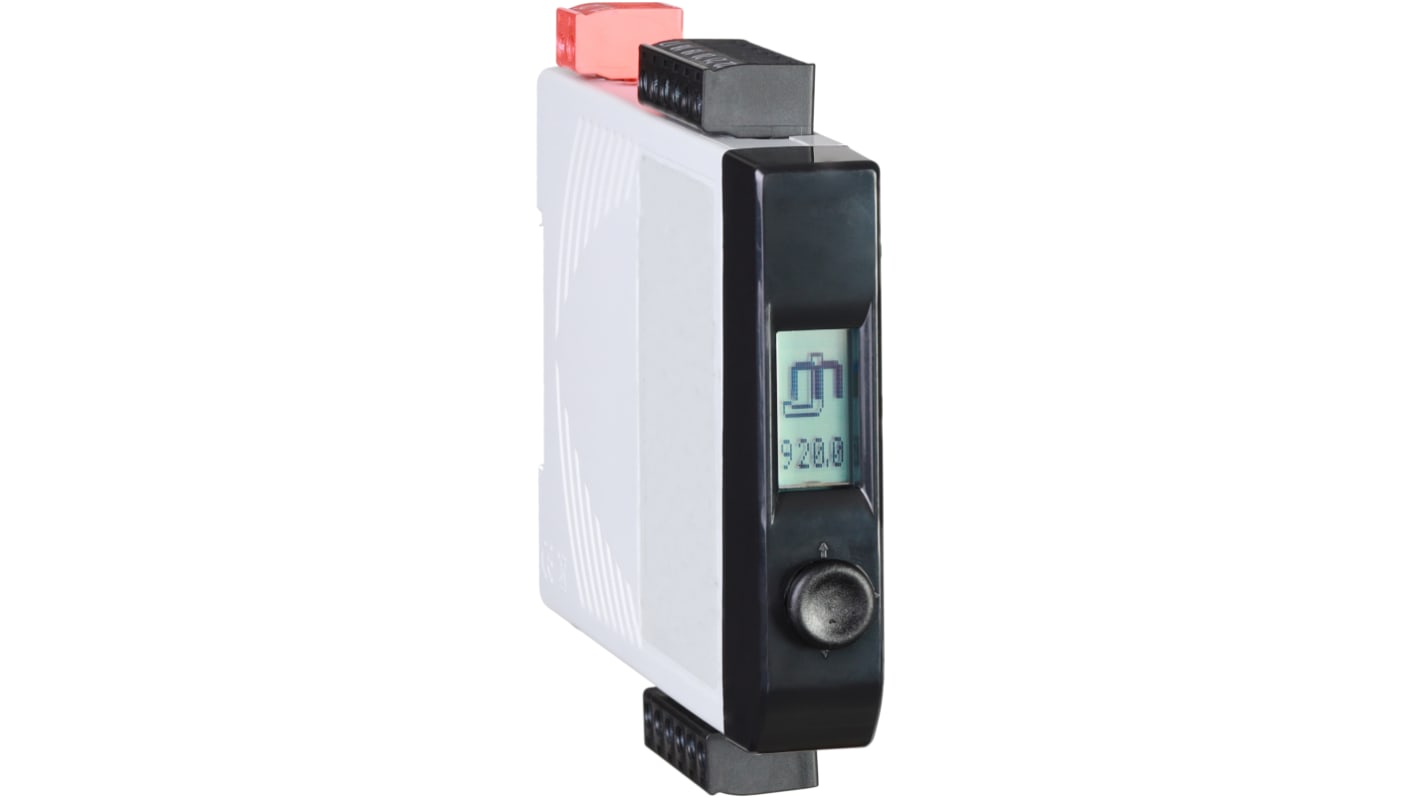

JM CONCEPT ULCOS 900 Series Universal Signal Converter, Current, Voltage, Potentiometer Signal, Resistance,
- RS 제품 번호:
- 232-8257
- 제조사 부품 번호:
- ULCOS920D2
- 제조업체:
- JM CONCEPT
4 <재고있음> 5-9영업일내 홍콩 발송
24 <재고있음> 5-9영업일내 홍콩 발송
단가 개당
₩343,343.07
| 수량 | 한팩당 |
| 1 + | ₩343,343.07 |
- RS 제품 번호:
- 232-8257
- 제조사 부품 번호:
- ULCOS920D2
- 제조업체:
- JM CONCEPT
제정법과 컴플라이언스
- COO (Country of Origin):
- FR
제품 세부 사항
The JM CONCEPT Universal Converter includes direct current, DC voltage, variable resistance probe, thermocouple, potentiometer, 2-wire resistor, special table for NTC / PTC, lined with a sensor power supply, and with 1 or 2 analog outputs and 2 relays.
Precision class 0,1
Input analog/digital conversion 16 bits
Output analog/digital conversion 16 bits
Thermal drift <25ppm
Maximum of consumption <7VA
Input analog/digital conversion 16 bits
Output analog/digital conversion 16 bits
Thermal drift <25ppm
Maximum of consumption <7VA
사양
속성 | 값 |
|---|---|
| Module Type | Universal Signal Converter |
| Input Signal Type | Current, Voltage, Potentiometer Signal, Resistance, Temperature, Thermocouple |
| Output Signal Type | Current, Voltage, Relay |
| Input Range | Mo, P, PT100, PT1000, TC-B, TC-E, TC-J, TC-K, TC-N, TC-R, TC-S, TC-T, W3/D, W5/C, 0 → 100kohm, 0 → 470ohm, 0-10V, 0-100mv, 0 → 22mA |
| Supply Voltage | 22 → 240 V dc, 90 → 230V ac |
| Mounting Type | DIN Rail |
| Operating Temperature Range | -10 → +60°C |
| Series | ULCOS 900 |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -10°C |
