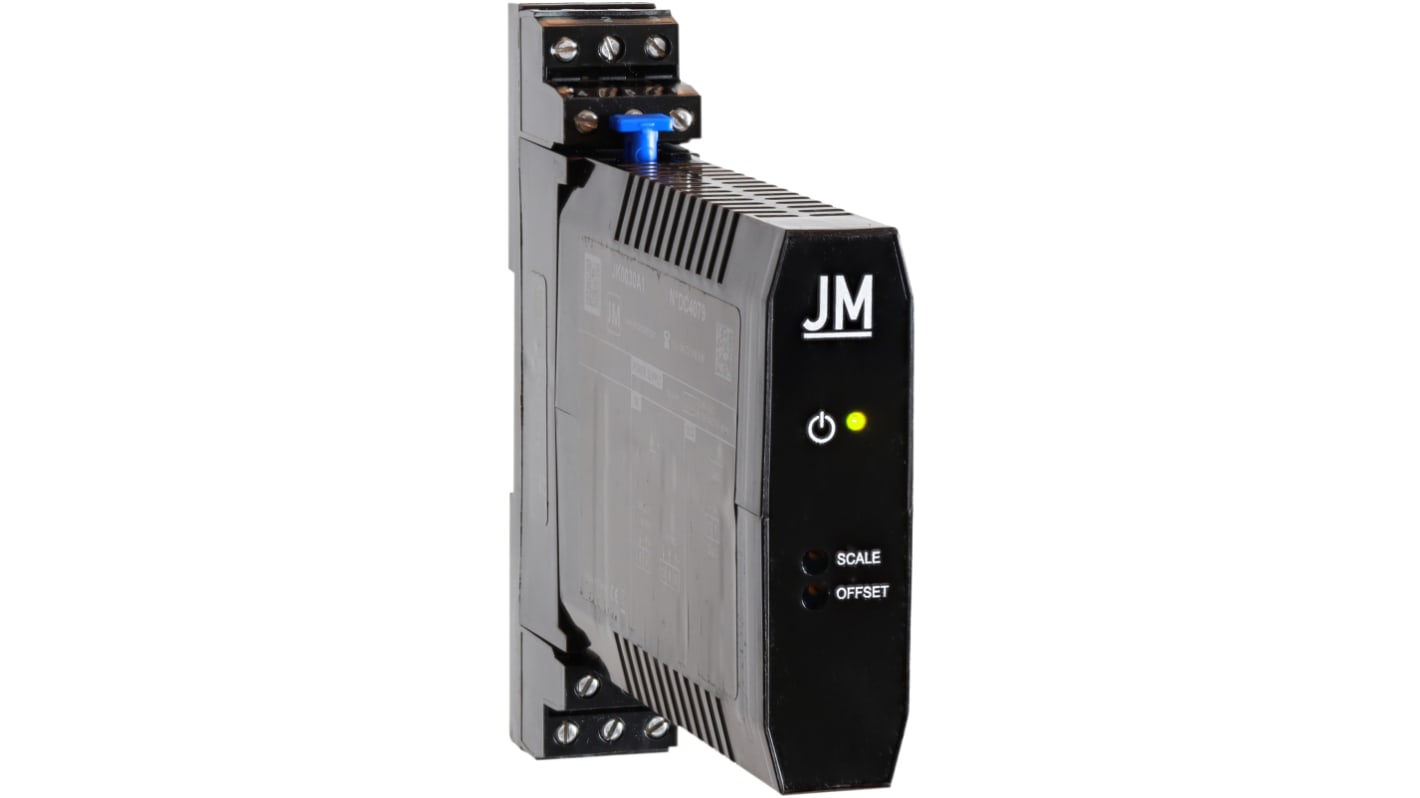

JM CONCEPT JK 7000 Series Isolating Signal Converter, Potentiometer Input, Current, Voltage Output, 22 → 240 V
- RS 제품 번호:
- 232-8231
- 제조사 부품 번호:
- JK7000A1
- 제조업체:
- JM CONCEPT
1 <재고있음> 5-9영업일내 홍콩 발송
단가 개당
₩358,806.798
| 수량 | 한팩당 |
| 1 + | ₩358,806.798 |
- RS 제품 번호:
- 232-8231
- 제조사 부품 번호:
- JK7000A1
- 제조업체:
- JM CONCEPT
제정법과 컴플라이언스
- COO (Country of Origin):
- FR
제품 세부 사항
The JM CONCEPT Potentiometer input converter allows the isolation and transmission of a potentiometric signal. Its response time is less than 0.5ms and has a very low thermal drift of less than 50 ppm.
Precision class 0,1
Response time <100μs
Thermal drift <50ppm
Residual ripple on current output <20μA
Residual ripple on voltage output <20mV
Response time <100μs
Thermal drift <50ppm
Residual ripple on current output <20μA
Residual ripple on voltage output <20mV
사양
속성 | 값 |
|---|---|
| Module Type | Potentiometer Transducer |
| Input Signal Type | Potentiometer |
| Output Signal Type | Current, Voltage |
| Input Range | 0-100K ohms, 0-100 ohms |
| Supply Voltage | 22 → 240 V dc, 90 → 230V ac |
| Operating Temperature Range | -10 → +60°C |
| Series | JK 7000 |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
