ADAFRUIT INDUSTRIES, NeoPixel Shield Warm White
- RS 제품 번호:
- 124-5493
- 제조사 부품 번호:
- 2864
- 제조업체:
- ADAFRUIT INDUSTRIES
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
- RS 제품 번호:
- 124-5493
- 제조사 부품 번호:
- 2864
- 제조업체:
- ADAFRUIT INDUSTRIES
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ADAFRUIT INDUSTRIES | |
| Product Name | NeoPixel Shield Warm White | |
| Kit Classification | Shield | |
| Processor Part Number | 2864 | |
| For Use With | Arduino | |
| 모두 선택 | ||
|---|---|---|
브랜드 ADAFRUIT INDUSTRIES | ||
Product Name NeoPixel Shield Warm White | ||
Kit Classification Shield | ||
Processor Part Number 2864 | ||
For Use With Arduino | ||

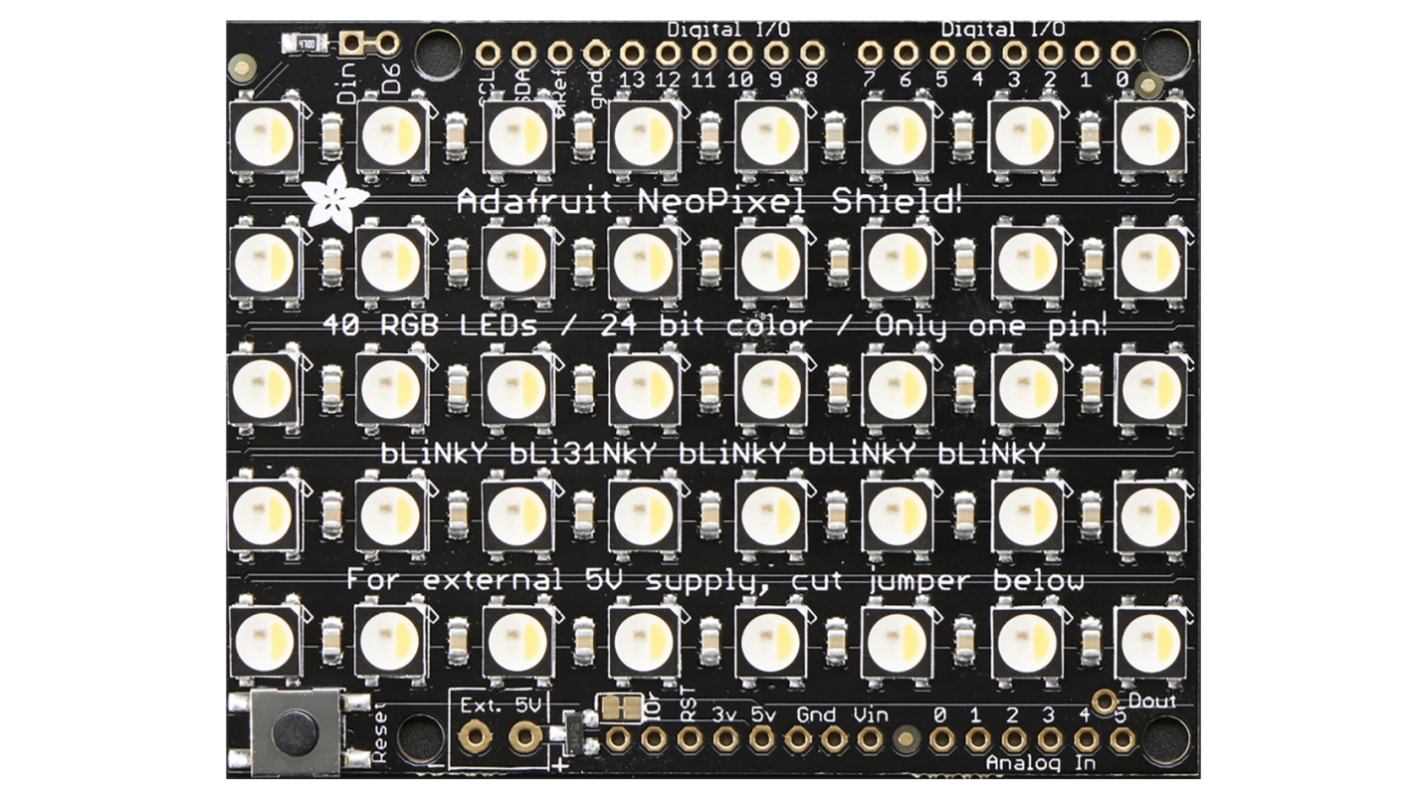

NeoPixel Shield 5 x 8 RGBW LED Matrix
The Adafruit NeoPixel Shield has 40 super bright LEDs in an 5 x 8 matrix. Each NeoPixel is 'split' with one half being RGB and the other is a white LED. This combined LED enables you to choose any colour or illuminate using with white light. Available in 3 colours of white light – warm white (3000K), neutral white (4500K) and warm white (6000K). This LED matrix shield will fit neatly on top of you Arduino board.
If you need more, then you can also daisy chain NeoMatrix together. For the second shield, connect the DIN connection to the first panel DOUT.
There is a single data line with a timing-specific protocol. Since the protocol is sensitive to timing, it requires a real-time microcontroller such as an AVR, Arduino, PIC or mbed.
Adafruit 2864 - NeoMatrix 40 RGBW, Warm White (RS 124-5493)
Adafruit 2865 - NeoMatrix 40 RGBW, Neutral White (RS 124-5494)
Adafruit 2866 - NeoMatrix 40 RGBW, Cool White (RS 124-5495)
Dimensions: 53 x 69 x 3 mm / 2.1" x 2.7" 0.1"
Weight: 27.1 g
Larger 64 RGBW LED versions in an 8 x 8 matrix are also available with the same colour temperature options (RS 124-5496, 124-5497, 124-5498).
If you need more, then you can also daisy chain NeoMatrix together. For the second shield, connect the DIN connection to the first panel DOUT.
There is a single data line with a timing-specific protocol. Since the protocol is sensitive to timing, it requires a real-time microcontroller such as an AVR, Arduino, PIC or mbed.
Adafruit 2864 - NeoMatrix 40 RGBW, Warm White (RS 124-5493)
Adafruit 2865 - NeoMatrix 40 RGBW, Neutral White (RS 124-5494)
Adafruit 2866 - NeoMatrix 40 RGBW, Cool White (RS 124-5495)
Dimensions: 53 x 69 x 3 mm / 2.1" x 2.7" 0.1"
Weight: 27.1 g
Larger 64 RGBW LED versions in an 8 x 8 matrix are also available with the same colour temperature options (RS 124-5496, 124-5497, 124-5498).
