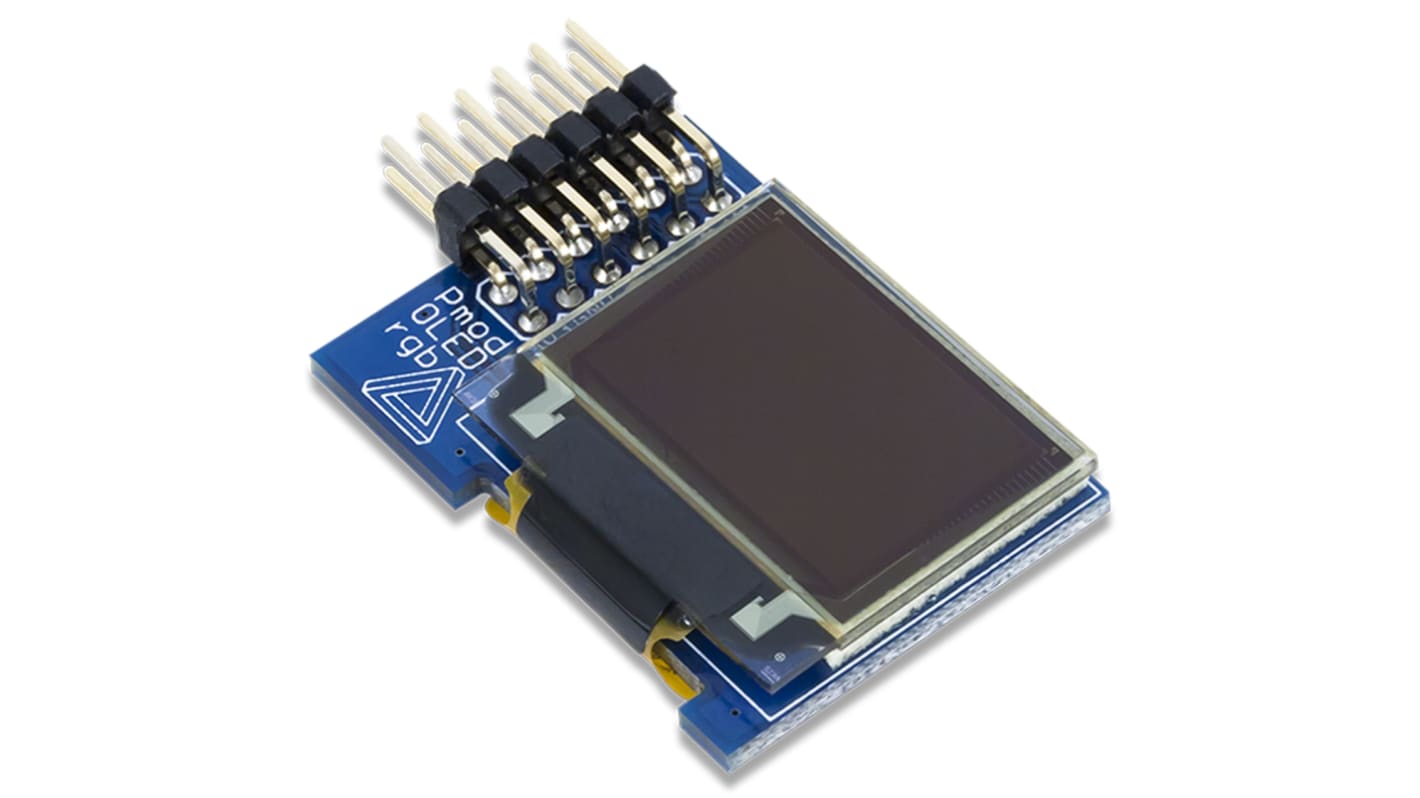

Digilent’s Pmod OLEDrgb (Revision B) is an organic RGB LED module with a 96 x 64 pixel display capable of 16-bit colour resolution. Designed to work in conjunction with a host board, communicating via the SPI protocol, the Pmod OLEDrgb is a graphical display that allows users the option to light up any individual pixel on the OLED screen.
Utilising a Solomon Systech SSD1331 display controller, the PmodOLEDrgb receives information from the host board to be displayed on the OLED screen. Ideal for displaying a range of information including graphs and text as well as full colour pictures.
What’s on-board? • 20 x 13mm RGB OLED display • 96 x 64 pixels • 16-bit colour resolution • 12-pin Pmod connector w/SPI interface • Serial SPI host communication • 2x low-power display shutdown modes • 35 x 25mm overall size
속성
값
Kit Classification
Expansion Module
Kit Name
Pmod OLEDrgb: 96 x 64 RGB OLED Display with 16-bit Color Resolution
