- RS 제품 번호:
- 124-5451
- 제조사 부품 번호:
- 985
- 제조업체:
- ADAFRUIT INDUSTRIES
14 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩46,222.145
수량 | 한팩당 |
1 - 4 | ₩46,222.145 |
5 - 9 | ₩45,442.491 |
10 + | ₩44,586.94 |
- RS 제품 번호:
- 124-5451
- 제조사 부품 번호:
- 985
- 제조업체:
- ADAFRUIT INDUSTRIES
제정법과 컴플라이언스
제품 세부 사항

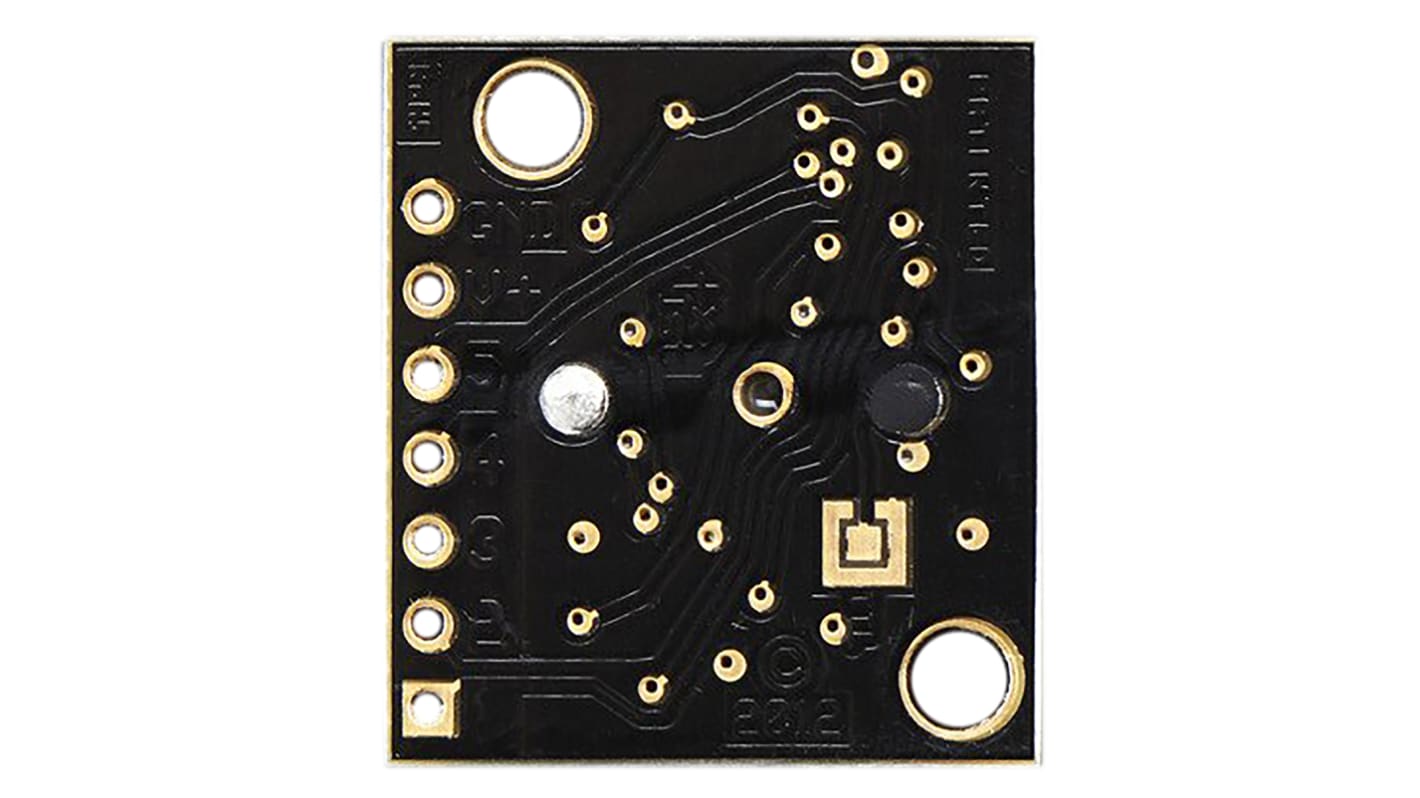

HRLV-EZx Series Maxbotix Ultrasonic Rangefinder Sensors
HRLV-EZ Series Maxbotix Ultrasonic Rangefinders are high performance sensors with high resolution, excellent noise rejection, automatic calibration and factory set beam patterns. These small, lightweight sensor modules have three outputs: analogue voltage, digital PWM, and RS232 or TTL serial data. Typical applications include proximity zone detection, people detection, robotics ranging sensors, motion detectors and long range object detection.
Three beam patterns are available, with the wide beam type being most suitable for small object and people detection, and the narrow beam width for large object detection.
124-5449 HRLV-MaxSonar-EZ0 Wide beam width
124-5450 HRLV-MaxSonar-EZ1 Intermediate beam width
124-5451 HRLV-MaxSonar-EZ4 Narrow beam width
Three beam patterns are available, with the wide beam type being most suitable for small object and people detection, and the narrow beam width for large object detection.
124-5449 HRLV-MaxSonar-EZ0 Wide beam width
124-5450 HRLV-MaxSonar-EZ1 Intermediate beam width
124-5451 HRLV-MaxSonar-EZ4 Narrow beam width
Features:
Resolution of 1 mm
10 Hz reading rate
Maximum range of 5000 mm
Internal temperature compensation
Cost-effective solution where precision range-findings are needed
Operates from 2.5V-5.5V
Low 3.1 mA average current requirement
Operational Temperature from 0C to +65C
Real-time automatic calibration (voltage, humidity, ambient noise)
Firmware filtering for better noise tolerance and clutter rejection
RoHS compliant
10 Hz reading rate
Maximum range of 5000 mm
Internal temperature compensation
Cost-effective solution where precision range-findings are needed
Operates from 2.5V-5.5V
Low 3.1 mA average current requirement
Operational Temperature from 0C to +65C
Real-time automatic calibration (voltage, humidity, ambient noise)
Firmware filtering for better noise tolerance and clutter rejection
RoHS compliant
Sensors
사양
속성 | 값 |
---|---|
Sensor Technology | Ultrasonic Distance Sensor |
Featured Device | HRLV-EZ4 |
Kit Classification | Module |
Kit Name | Maxbotix |
