RS PRO Straight Female M12 to Straight Male M12 Sensor Actuator Cable, 10m
- RS 제품 번호:
- 250-0709
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
단가 개당**
₩108,326.40
57 <재고있음> 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩108,326.40 |
| 10 - 24 | ₩106,142.40 |
| 25 - 99 | ₩102,975.60 |
| 100 + | ₩92,674.40 |
**다른 단위에 대한 가격 표시
- RS 제품 번호:
- 250-0709
- 제조업체:
- RS PRO

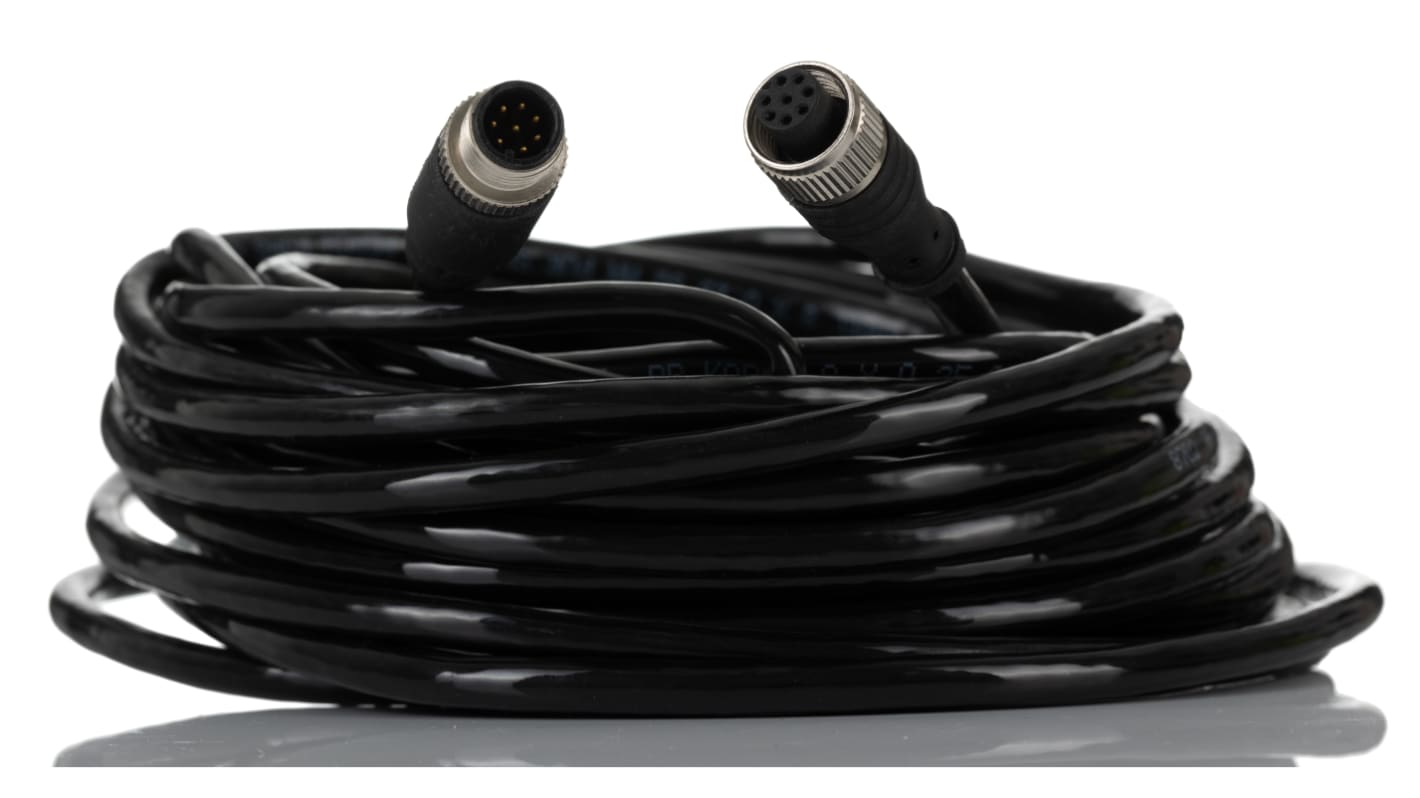

RS PRO 8 Core Shielded Straight Female M12 to Male M12 Connector Cable
The RS PRO M12 multicore cable assembly features a tough and durable design for the safe and reliable transmission of data in harsh industrial settings.
Featuring braided shielding for a high level of protection, a Brass Nickel plated coupling nut for a secure fit and a Neoprene O-ring for peace of mind from moisture and liquid penetration. Finally, its wrapped in a sturdy, flexible chemical resistant Polyurethane (PUR) jacket, the RS PRO multicore cable is built for the industrial environment.
The RS PRO M12 cable is a straight Female to Male connector cable with Brass contacts complete with a Gold Flash plating, ideal for industrial use in a wide range of automation and sensor equipment.
Features and benefits
- Female to Male connector cable
- Shielded A coded cable
- High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
- Neoprene O-ring to keep out liquid and moisture
- Nickel-plated brass coupling nut secures the connection and resists corrosion
- 8 Core cable
- Length 10m
- Operating temperature range from -25°C to +75˚C
- Voltage rating of 30V
- Brass contacts with Gold Flash plating
- Current rating of 2A
- Polyurethane (PUR) sheath
- IP67 rating
Approvals and Standards: IEC 61076-2-101
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS
속성 | 값 |
|---|---|
| Series | CDF12S |
| Cross Sectional Area | 0.25mm² |
| Number of Cores | 8 |
| Sheath Colour | Black |
| Length | 10m |
| Sheath Material | PUR |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Straight |
| Connector 1 | M12 |
| Connector 2 Orientation | Straight |
| Connector 2 Gender | Male |
| Connector 2 | M12 |
| Coding | A |
| Shielded/Unshielded | Shielded |
| Shielding | Braid |
| Voltage Rating | 30 V |
| Current Rating | 2 A |
| IP Rating | IP67 |
| Outer Diameter | 5.9mm |
| Minimum Operating Temperature | -25°C |
| Cable Shape | Multicore |
| Maximum Operating Temperature | +75°C |
- COO (Country of Origin):
- IN
