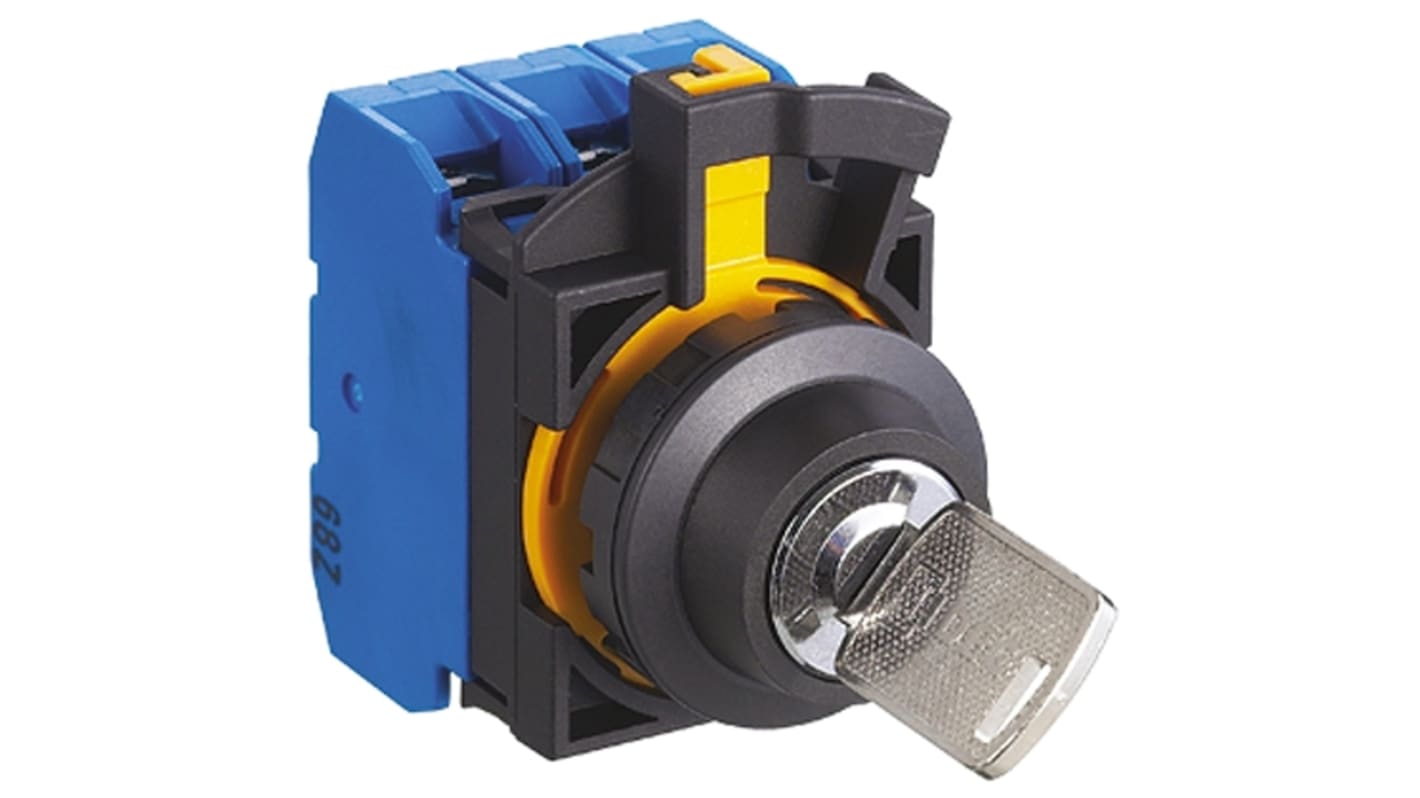

Idec 3 Position Key Key Switch - (2NO) 22mm Cutout Diameter
- RS 제품 번호:
- 813-5325
- 제조사 부품 번호:
- CW1K-3BE20
- 제조업체:
- Idec
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
모든 Selector Switches 열람하기
- RS 제품 번호:
- 813-5325
- 제조사 부품 번호:
- CW1K-3BE20
- 제조업체:
- Idec
- COO (Country of Origin):
- JP
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항
IDEC CW 22mm Key Switches
The CW series of key switches from IDEC are designed to offer a heavy-duty rugged solution to panel mount control applications perfect for use with in harsh wearing industrial environments. The aesthetics of the key switches have also been deeply considered leading to a sleek, stylish and low profile product when panel mounted. The key switches feature an IP65 level of ingress protection for the front of panel components and IP20 level of ingress protection for the terminal covers. A protected locking lever provides the ability to visually check the contact block is installed correctly along with preventing unexpected release.
Innovative protected plastic locking lever
Compact and light-weight
Two action removable contact blocks
Sleek, stylish and low profile
Compact and light-weight
Two action removable contact blocks
Sleek, stylish and low profile
사양
| 속성 | 값 |
| Number of Positions | 3 |
| Actuator Type | Key |
| Contact Configuration | 2NO |
| Angle of Throw | 45° |
| Series | IDEC CW |
| Cutout Diameter | 22mm |
| Terminal Type | Screw |
| Illuminated | No |
| Switch Actuation | Latching |
| Number of Keys | 2 |
