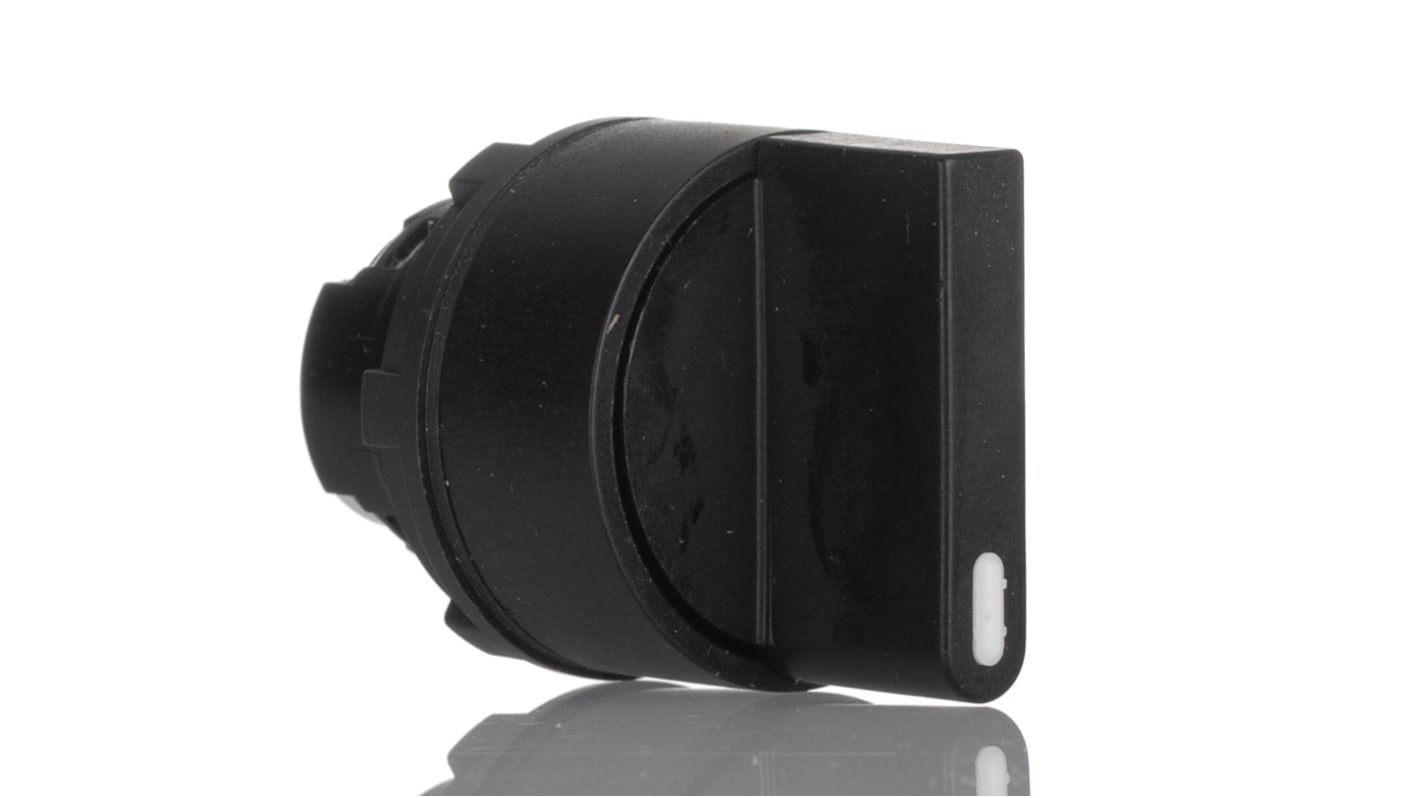

RS PRO 3 Position Short Lever Black Selector Switch Head
A hardwearing and reliable black 3 position selector switch head constructed with a robust Thermoplastic casing for impact resistance and an IP rating of IP65 at the front providing protection from dust and water. The selector switch head has an outer diameter of 30mm and features a fixing ring for easy and fast assembly for a secure fit free from movement.
The switch head features spring actuation a wide operating temperature of -25 to 70°C and a long mechanical life of 300,000 operations. A tough and hardwearing selector switch head perfect for industrial assemblies.
The switch head features spring actuation a wide operating temperature of -25 to 70°C and a long mechanical life of 300,000 operations. A tough and hardwearing selector switch head perfect for industrial assemblies.
Features and Benefits
Selector switch head
3 positions
Spring actuator
Return from left and right
30mm outer diameter
Cut out diameter of 22.5mm
IP65 rated (IP20 back)
Fixing ring
Operating temperature of -25 to +70°C
300,000 operations
Thermoplastic case
3 positions
Spring actuator
Return from left and right
30mm outer diameter
Cut out diameter of 22.5mm
IP65 rated (IP20 back)
Fixing ring
Operating temperature of -25 to +70°C
300,000 operations
Thermoplastic case
Approvals and Standards: CE/ UKCA, EN60947-5-1, UL508
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
속성 | 값 |
---|---|
Actuator Colour | Black |
Illuminated | No |
Number of Positions | 3 |
Cutout Diameter | 22.5mm |
Actuator Type | Spring Return |
Switch Actuation | Spring Return |
IP Rating | IP65 |
