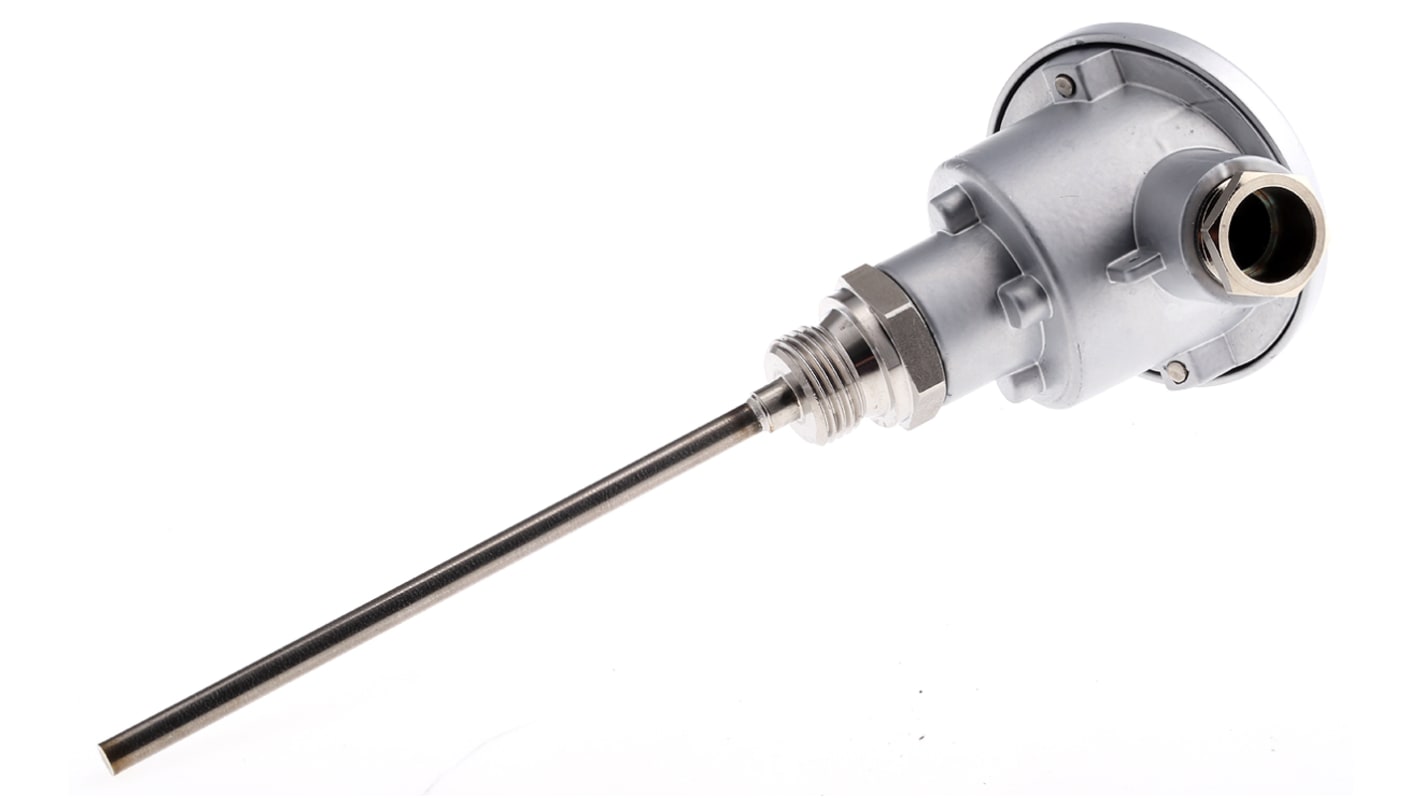

Jumo PT100 Temperature Sensor, 6mm Dia, 150mm Long, +200°C Max

모든 RTD Sensors 열람하기

Subtotal (1 unit)*

₩221,971.60

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보
수량
한팩당
1 +₩221,971.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
764-5385
Distrelec 제품 번호:
301-42-427
제조사 부품 번호:
902023/10-380-1003-1-6-150-104/000
제조업체:
Jumo
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Jumo

Sensor Type

PT100

Probe Length

150mm

Probe Diameter

6mm

Maximum Temperature Sensed

+200°C

Response Time

14 (Water) s

COO (Country of Origin):
DE

RTD Temperature Probes with Connection Head Form B


Screw in RTD temperature probes from Jumo are ideal for standard applications and are used for measuring temperatures in liquids and gases. A key feature of these temperature probes is the reliable sealing feature of this installation type with vacuum and with overpressure. Typical application areas are in the air conditioning technology, refrigeration engineering and HVAC.

Screw in RTD temperature probes with terminal head form B and with continuous sheath
Built-in measuring insert
Stainless steel sheath material


PT100 Probes with Industrial Terminal Heads
