- RS 제품 번호:
- 548-8269
- 제조사 부품 번호:
- 902520/10-572-1001-1/000
- 제조업체:
- Jumo
- RS 제품 번호:
- 548-8269
- 제조사 부품 번호:
- 902520/10-572-1001-1/000
- 제조업체:
- Jumo
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- FR
제품 세부 사항

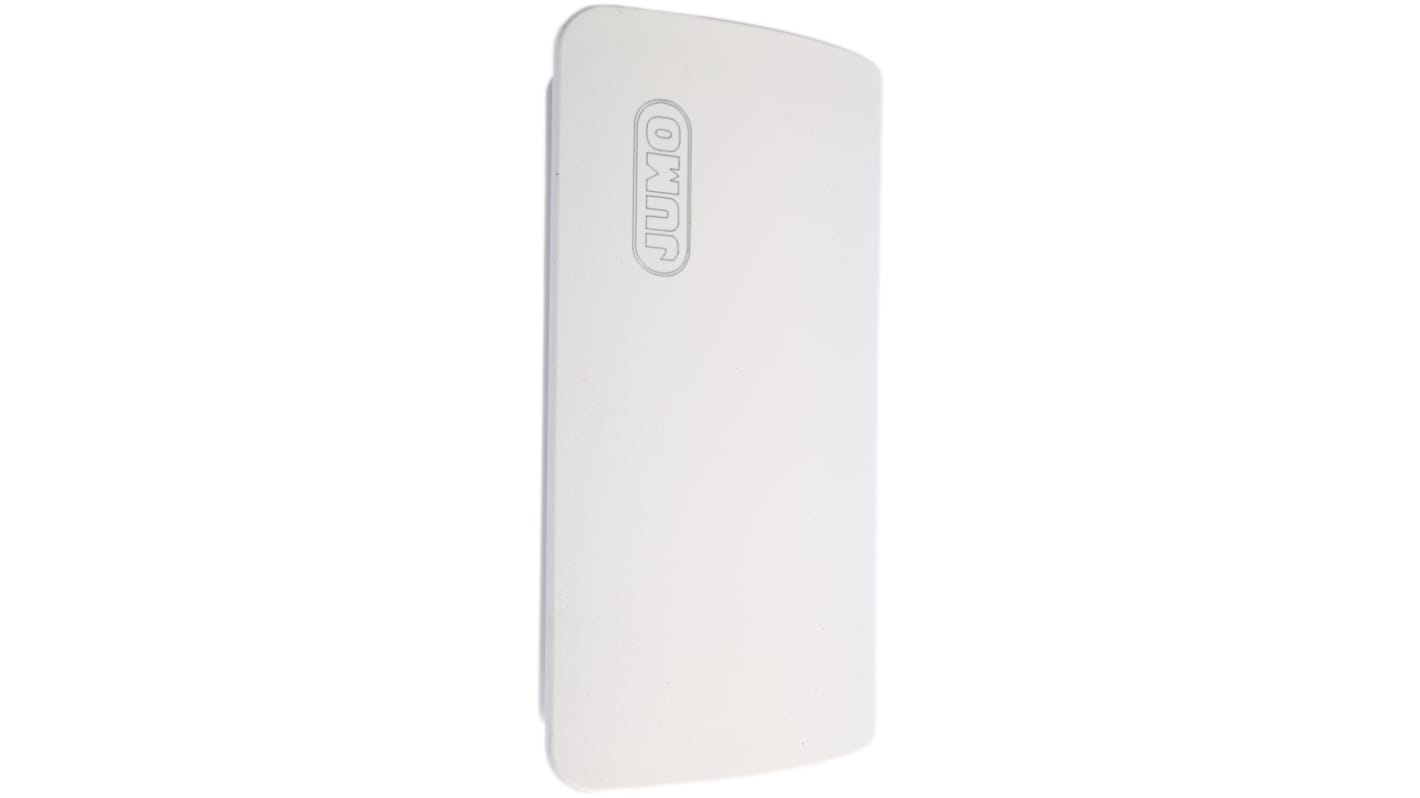

Room / External Temperature Sensor
For temperatures between -30 and +80 °C
For use in climate technology
Quick and easy assembly
Can be connected in 2, 3 or 4-conductor circuit
Protection rating IP20 for room resistance thermometer
Protection rating IP54 for room / external thermometer
Dimensions (IP20): 54 x 84 x 31 (IP54): 75 x 75 x 65
For use in climate technology
Quick and easy assembly
Can be connected in 2, 3 or 4-conductor circuit
Protection rating IP20 for room resistance thermometer
Protection rating IP54 for room / external thermometer
Dimensions (IP20): 54 x 84 x 31 (IP54): 75 x 75 x 65
사양
속성 | 값 |
---|---|
Sensor Type | PT100 |
Minimum Temperature Sensed | -30°C |
Maximum Temperature Sensed | +80°C |
Termination Type | Cable Gland |
Process Connection | Wall |
Number Of Wires | 3 |
Accuracy | Class B |
