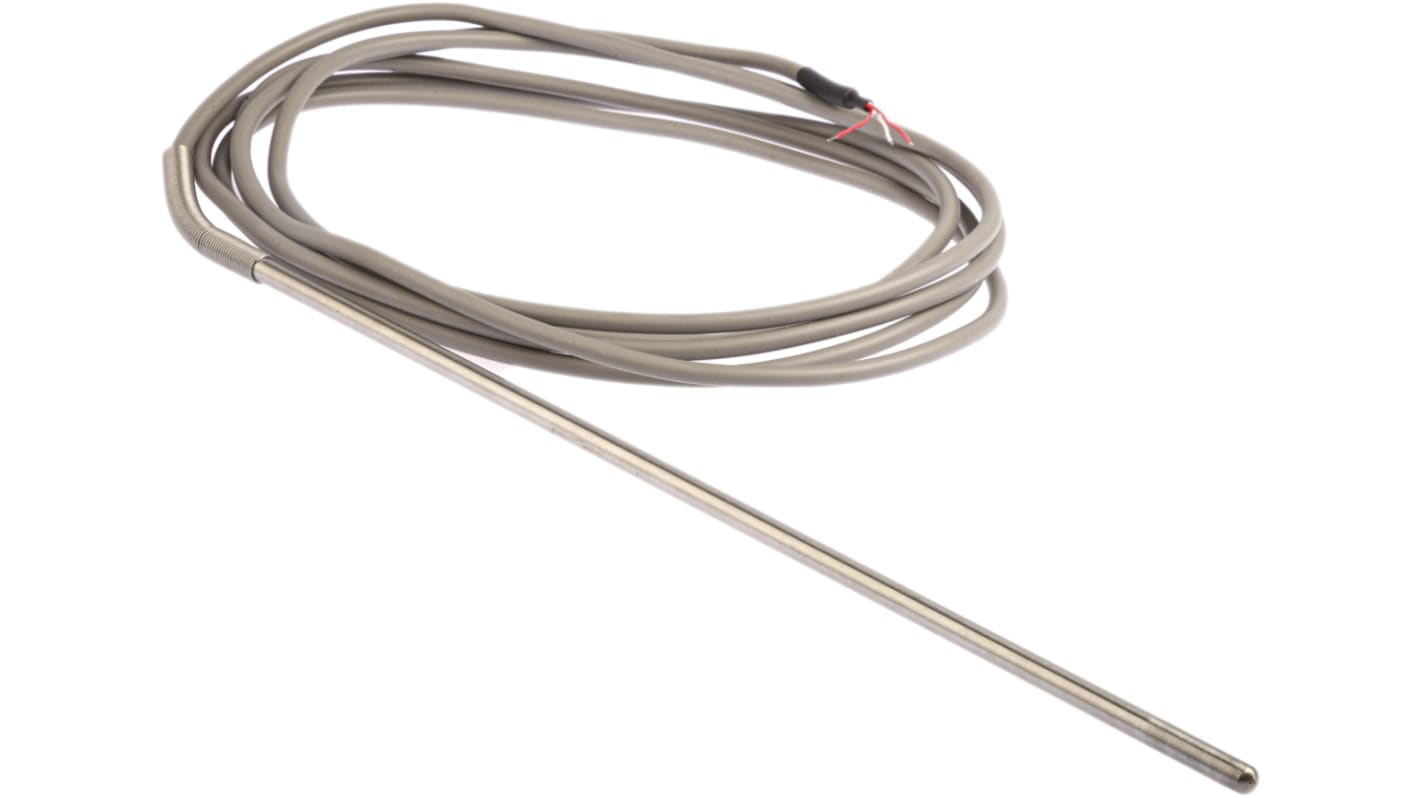

Correge PT100 RTD Sensor, 6mm Dia, 300mm Long, 3 Wire, Probe, Class B +250°C Max
- RS 제품 번호:
- 547-7758
- 제조사 부품 번호:
- PS6/300/3000/316/SILICONE
- 제조업체:
- Correge
- RS 제품 번호:
- 547-7758
- 제조사 부품 번호:
- PS6/300/3000/316/SILICONE
- 제조업체:
- Correge
제정법과 컴플라이언스
- COO (Country of Origin):
- FR
제품 세부 사항
Pt100 probes with connection cable
DIN IEC 751 Class B ceramic Pt100 probes, 3-wire assembly.
316L stainless steel protective sheath.
PTFE-silicone cable.
Output protected by bending spring.
316L stainless steel protective sheath.
PTFE-silicone cable.
Output protected by bending spring.
사양
속성 | 값 |
|---|---|
| Sensor Type | PT100 |
| Probe Length | 300mm |
| Probe Diameter | 6mm |
| Minimum Temperature Sensed | -50°C |
| Maximum Temperature Sensed | +250°C |
| Termination Type | Cable |
| Cable Length | 3m |
| Probe Material | Stainless Steel |
| Process Connection | Probe |
| Number Of Wires | 3 |
| Accuracy | Class B |
