- RS 제품 번호:
- 373-6774
- 제조사 부품 번호:
- 308-E-3LS
- 제조업체:
- Electrotherm
- RS 제품 번호:
- 373-6774
- 제조사 부품 번호:
- 308-E-3LS
- 제조업체:
- Electrotherm
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항

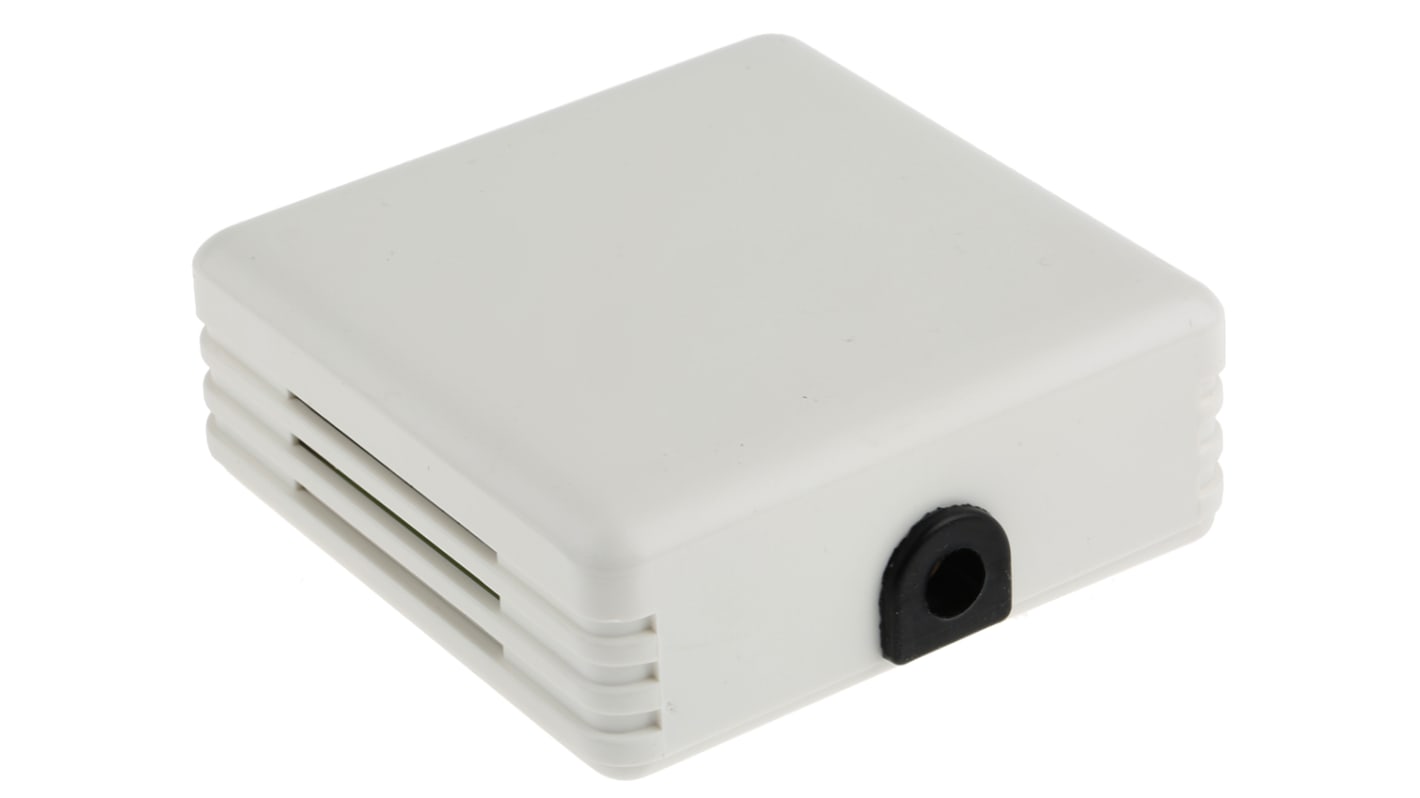

Room Temperature Sensor, type 308, PT100
Wall-mount room resistance thermometer
Dimensions 70 x 70 x 27
Temperature measurement and monitoring in rooms
Slotted plastic housing
1x PT100 (308-E-3LS) or 2x PT100 (308-D-3LS)
Three-conductor circuit
Accuracy class B
Base values and limit deviations according to DIN EN 60751
Working temperature range 0 °C → +80 °C
Protection system IP20
Dimensions 70 x 70 x 27
Temperature measurement and monitoring in rooms
Slotted plastic housing
1x PT100 (308-E-3LS) or 2x PT100 (308-D-3LS)
Three-conductor circuit
Accuracy class B
Base values and limit deviations according to DIN EN 60751
Working temperature range 0 °C → +80 °C
Protection system IP20
사양
속성 | 값 |
---|---|
Sensor Type | PT100 |
Minimum Temperature Sensed | -40°C |
Maximum Temperature Sensed | +85°C |
Termination Type | Cable Gland |
Process Connection | Wall |
Accuracy | F0.3 |
