Electrotherm PT100 RTD Sensor, 6mm Dia, 60mm Long, Probe, F0.3 +400°C Max
- RS 제품 번호:
- 373-6768
- 제조사 부품 번호:
- K2-E-2LS-400
- 제조업체:
- Electrotherm
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩149,723.20
재고있음
- 5 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩149,723.20 |
| 5 + | ₩145,530.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 373-6768
- 제조사 부품 번호:
- K2-E-2LS-400
- 제조업체:
- Electrotherm
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Electrotherm | |
| Sensor Type | PT100 | |
| Probe Length | 60mm | |
| Probe Diameter | 6mm | |
| Minimum Temperature Sensed | -50°C | |
| Maximum Temperature Sensed | +400°C | |
| Termination Type | Cable | |
| Cable Length | 2.5m | |
| Process Connection | Probe | |
| Accuracy | F0.3 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Electrotherm | ||
Sensor Type PT100 | ||
Probe Length 60mm | ||
Probe Diameter 6mm | ||
Minimum Temperature Sensed -50°C | ||
Maximum Temperature Sensed +400°C | ||
Termination Type Cable | ||
Cable Length 2.5m | ||
Process Connection Probe | ||
Accuracy F0.3 | ||
- COO (Country of Origin):
- DE

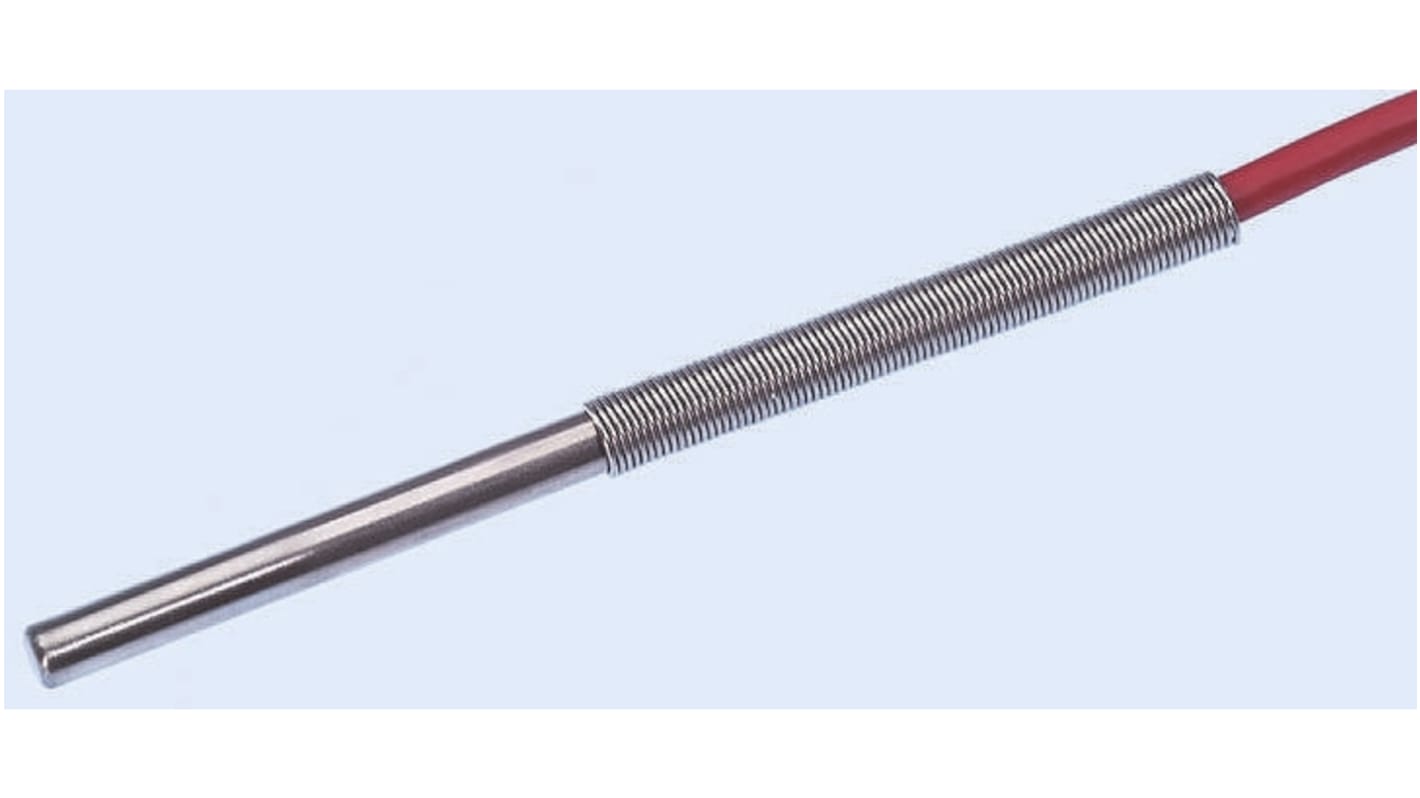

Type K2 — High-Temperature Cable Sensor, PT100
Resistance thermometer without fastening element
Temperature measurement and monitoring on diverse application sites
Temperature range: -50 °C → +200 °C or +400 °C
Anti-kink spring
Two or three-conductor circuit
Accuracy class B
2.5 m connection lead
Stainless steel sleeve Ø 6 x 60 mm
400 °C version with cable sheathing reinforced with fibre glass
Temperature measurement and monitoring on diverse application sites
Temperature range: -50 °C → +200 °C or +400 °C
Anti-kink spring
Two or three-conductor circuit
Accuracy class B
2.5 m connection lead
Stainless steel sleeve Ø 6 x 60 mm
400 °C version with cable sheathing reinforced with fibre glass
Standards
Base values and limit deviations according to DIN EN 60751
