수량

수량 선택 또는 입력

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SICK
	Sensor Type	PT100
	Probe Length	350mm
	Probe Diameter	6mm
	Minimum Temperature Sensed	-20°C
	Maximum Temperature Sensed	+80°C
	Termination Type	M12 Round Plug Connector
	Series	TBS
	Process Connection	G 1/2
	Cable Entry Size	M12
	Number Of Wires	2
	Accuracy	= ± 0.15 °C
	Response Time	5 s

	모두 선택
	브랜드 SICK
	Sensor Type PT100
	Probe Length 350mm
	Probe Diameter 6mm
	Minimum Temperature Sensed -20°C
	Maximum Temperature Sensed +80°C
	Termination Type M12 Round Plug Connector
	Series TBS
	Process Connection G 1/2
	Cable Entry Size M12
	Number Of Wires 2
	Accuracy = ± 0.15 °C
	Response Time 5 s

COO (Country of Origin):: DE

Overview

The TBS temperature switch is easy to use and has a rugged design. It is designed for temperature measurement and monitoring of operating liquids, such as hydraulic oils, coolant lubricants and cleaning liquids in machine building and manufacturing. With

The switching state of the binary outputs is displayed by highly visible LEDs. During installation, the TBS is uniquely flexible due to its two rotation locations. It is possible to rotate the display and the process connection independently of the sensor

At a glance

Large display, IO-Link 1.1
Individually programmable transistor outputs PNP or NPN, optional analogue output 4 mA ... 20 mA or 0 V ... 10 V
Round connector M12 x 1
Measuring ranges –20 °C ... +120 °C
Pt1000 element, accuracy class A (IEC 60751)
Various in

Your Benefit

Quick and safe set-up through superior ease of use
Compact dimensions and rotatable housing facilitate integration
Very reliable: splash-proof housing, high-grade materials, rugged design, and field-proven technology
Very good long-term stability, accurac

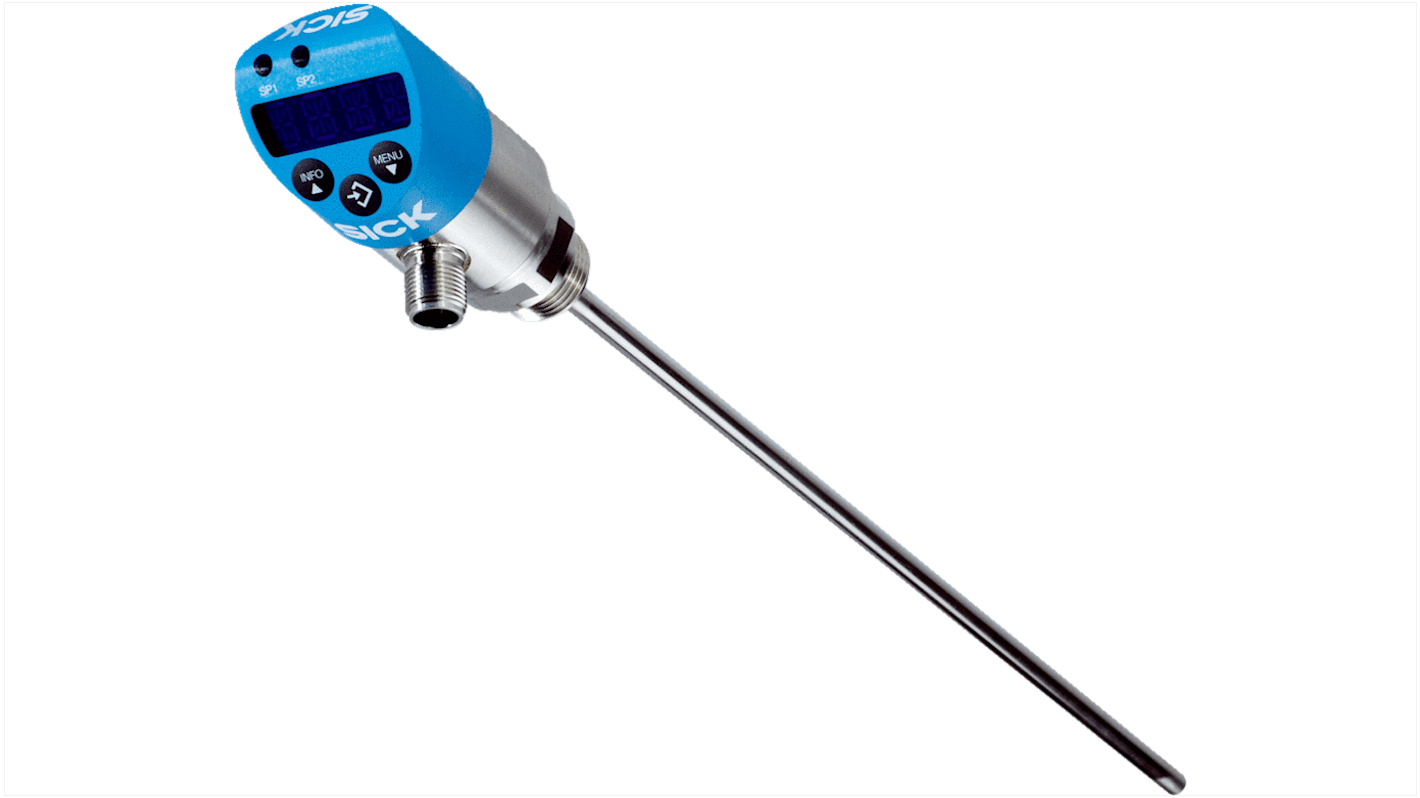

SICK PT100 RTD Sensor, 6mm Dia, 350mm Long, 2 Wire, G 1/2, = ± 0.15 °C +80°C Max

Overview

At a glance

Your Benefit

Applications

Note
