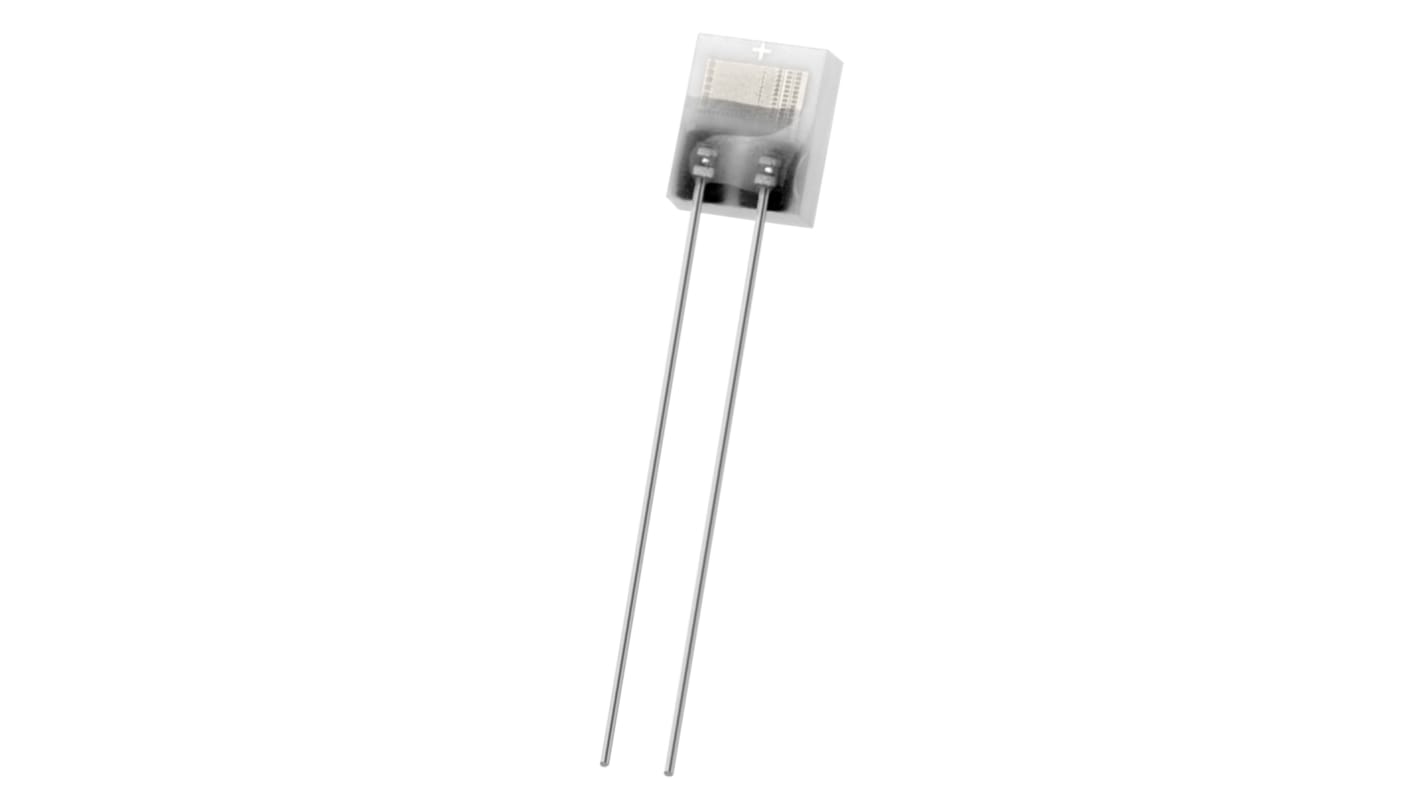

IST INNOVATIVE SENSOR TECHNOLOGY PT1000 RTD Sensor, 1.2mm Dia, 1.6mm Long, 2 Wire, Chip, Class A +600°C Max
- RS 제품 번호:
- 121-8018
- 제조사 부품 번호:
- P1K0.161.6W.A.010
- 제조업체:
- IST INNOVATIVE SENSOR TECHNOLOGY
46 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩8,991.904
| 수량 | 한팩당 |
| 1 - 12 | ₩8,991.904 |
| 13 - 24 | ₩8,793.54 |
| 25 + | ₩8,607.251 |
- RS 제품 번호:
- 121-8018
- 제조사 부품 번호:
- P1K0.161.6W.A.010
- 제조업체:
- IST INNOVATIVE SENSOR TECHNOLOGY
제정법과 컴플라이언스
제품 세부 사항
Platinum Resistance Temperature Sensors, IST Innovative Sensor Technology
The range of Platinum thin-film RTD (resistance temperature detectors) temperature sensors by IST Innovative Sensor Technology operate in extreme temperature conditions. Also they are available in different classes of accuracies and various package options.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Sensor Type | PT1000 |
| Probe Length | 1.6mm |
| Probe Diameter | 1.2mm |
| Minimum Temperature Sensed | -200°C |
| Maximum Temperature Sensed | +600°C |
| Termination Type | Solder |
| Process Connection | Chip |
| Number Of Wires | 2 |
| Accuracy | Class A |
| Response Time | 0.18 (Water) ms, 2.5 (Air) ms |
