TE Connectivity PT100 RTD Sensor, 2mm Dia, 5mm Long, Chip, ±0.15 °C +300°C Max

모든 RTD Sensors 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
100-5973
제조사 부품 번호:
NB-PTCO-037
제조업체:
TE Connectivity
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

TE Connectivity

Sensor Type

PT100

Probe Length

5mm

Probe Diameter

2mm

Minimum Temperature Sensed

-30°C

Maximum Temperature Sensed

+300°C

Termination Type

Solder

Process Connection

Chip

Accuracy

±0.15 °C

Response Time

0.35 (Water) s, 17 (Air) s

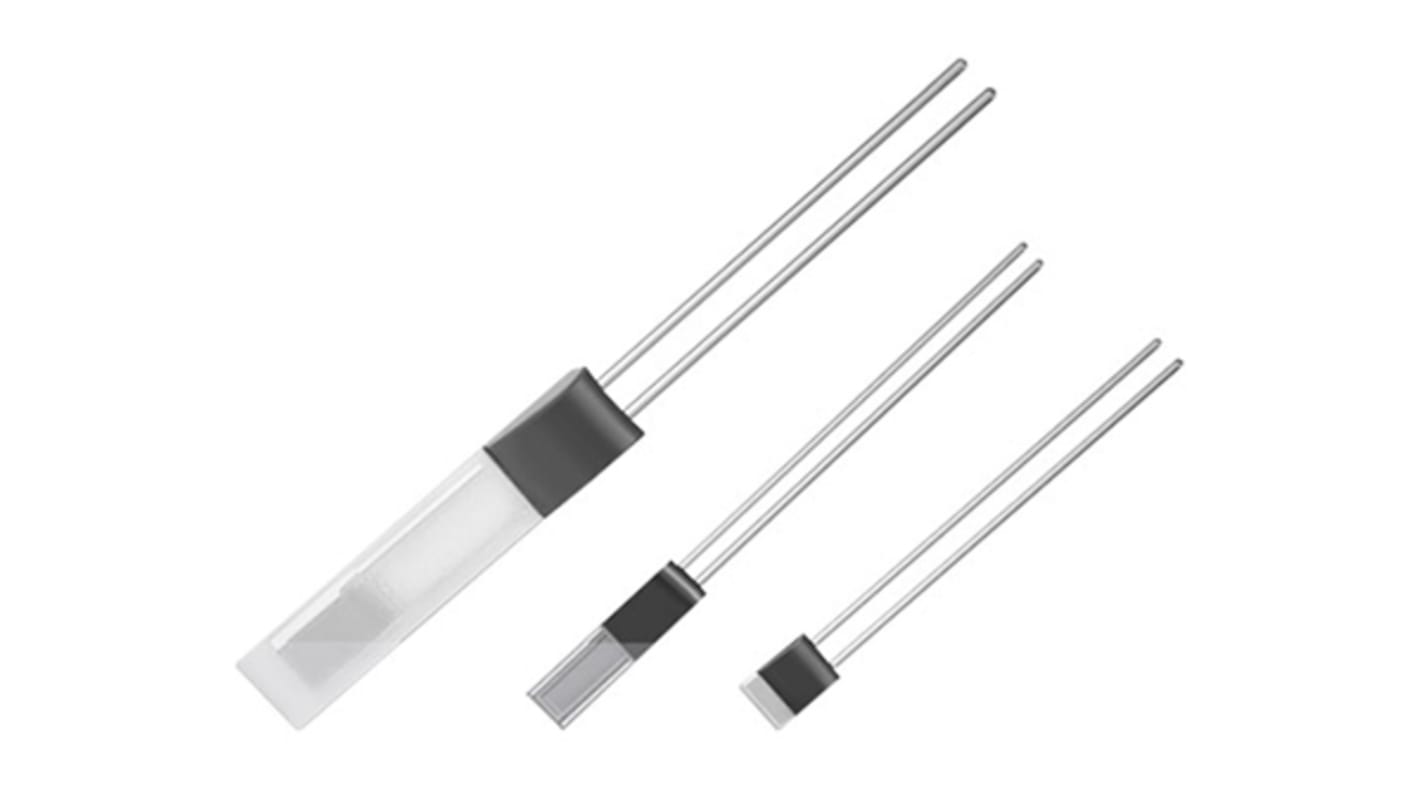

PTF Family - PT100


Professional range of TE Connectivity temperature sensors from the PTF family. The sensors incorporate a structured platinum film on a ceramic substrate, passivated by glass coating. The sensors are a suitable solution for fast and precise feedback due to the small outline and low mass. Ideal for use with temperature feedback control, industrial applications and medical equipment.

Wide temperature range
Global interchangeability
