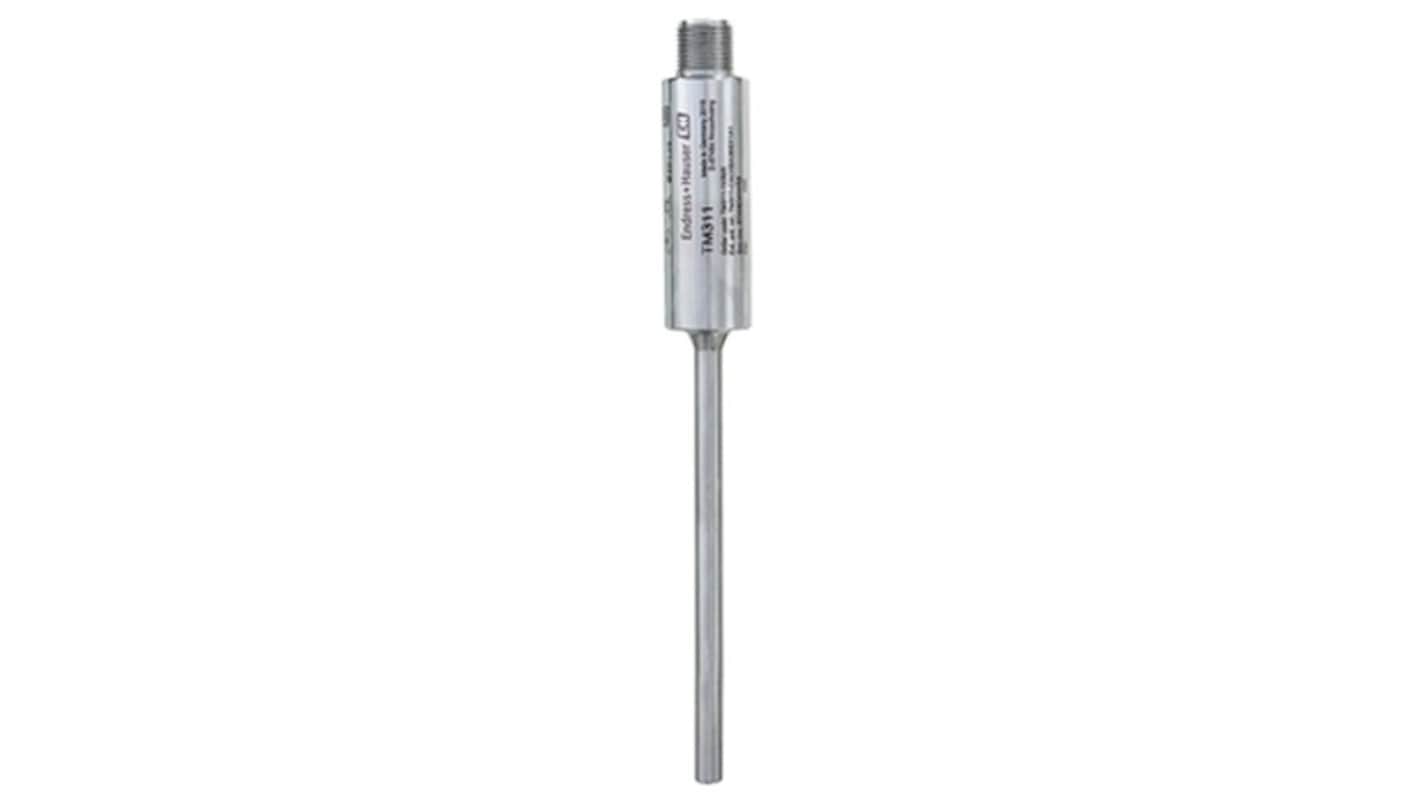

Endress+Hauser RTD RTD Sensor, 6mm Dia, 300mm Long, 4 Wire, G1/2, ±0.15 % +200°C Max
- RS 제품 번호:
- 317-751
- 제조사 부품 번호:
- TM311-AAC0BD2BBX1A1
- 제조업체:
- Endress+Hauser
Subtotal (1 unit)*
₩312,343.20
재고있음
- 7 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩312,343.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 317-751
- 제조사 부품 번호:
- TM311-AAC0BD2BBX1A1
- 제조업체:
- Endress+Hauser
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Endress+Hauser | |
| Sensor Type | RTD | |
| Probe Length | 300mm | |
| Probe Diameter | 6mm | |
| Minimum Temperature Sensed | -50°C | |
| Maximum Temperature Sensed | +200°C | |
| Process Connection | G1/2 | |
| Number Of Wires | 4 | |
| Accuracy | ±0.15 % | |
| 모두 선택 | ||
|---|---|---|
브랜드 Endress+Hauser | ||
Sensor Type RTD | ||
Probe Length 300mm | ||
Probe Diameter 6mm | ||
Minimum Temperature Sensed -50°C | ||
Maximum Temperature Sensed +200°C | ||
Process Connection G1/2 | ||
Number Of Wires 4 | ||
Accuracy ±0.15 % | ||
- COO (Country of Origin):
- DE
The Endress+Hauser iTHERM CompactLine TM311 sanitary thermometer provides accurate and fast process temperature measurements in hygienic and aseptic applications. Its temperature sensor offers a 4 wire connection or feeds into a smart temperature transmitter with 4 to 20 mA, IO-Link or switch output. Featuring TipSens technology, the RTD delivers response times as low as 1.5 s for optimum process control.
Fast installation and easy commissioning
Compact dimensions for installation in tight spaces
Excellent temperature measurement performance
Short response times as low as 1.5 s
High sensor accuracy even with short immersion lengths
Compact dimensions for installation in tight spaces
Excellent temperature measurement performance
Short response times as low as 1.5 s
High sensor accuracy even with short immersion lengths
