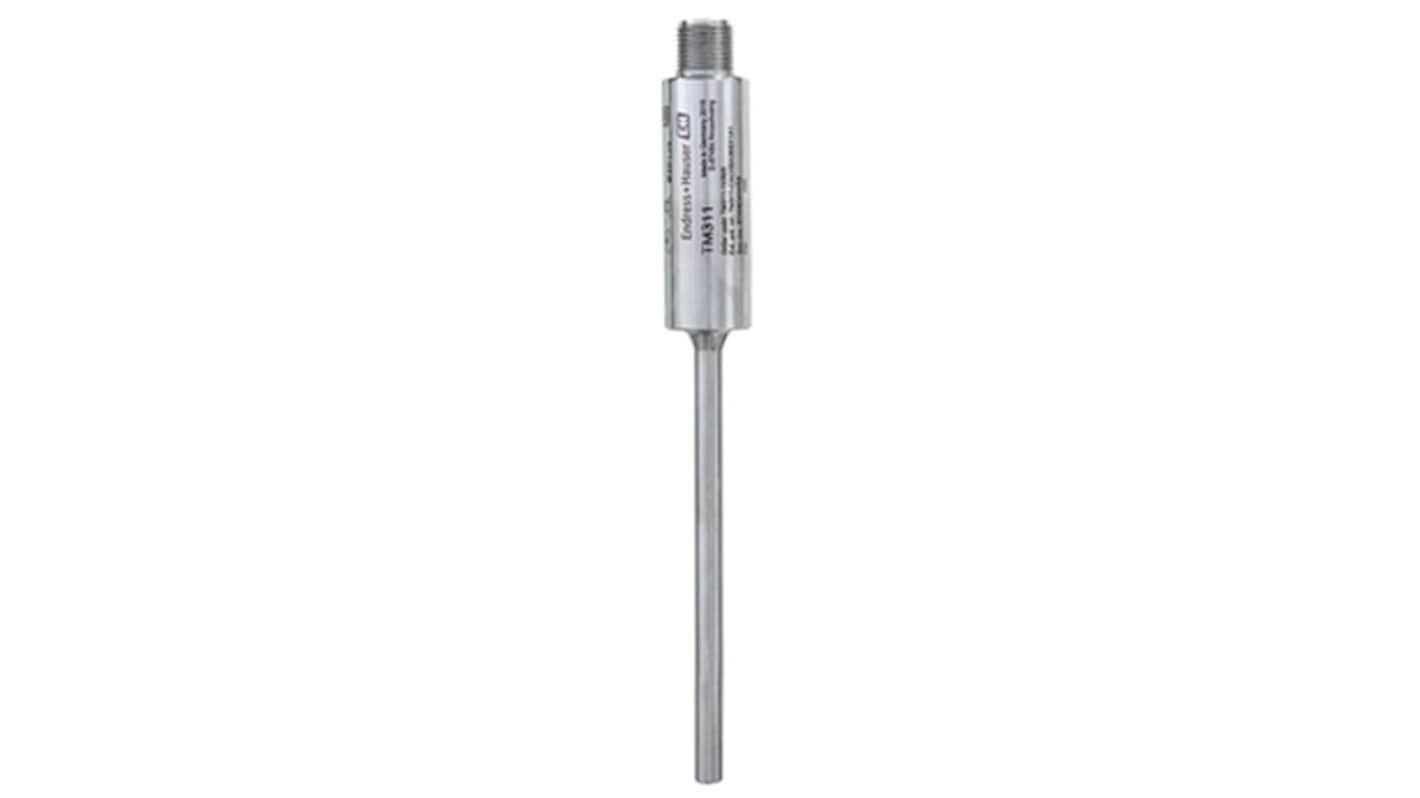

Endress+Hauser RTD RTD Sensor, 4 Wire, +200°C Max

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 RTD Sensors 열람하기

Subtotal (1 unit)*

₩655,932.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩655,932.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
316-260
제조사 부품 번호:
TM311-AAC1AA0ABC1B1SATB
제조업체:
Endress+Hauser
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Endress+Hauser

Sensor Type

RTD

Minimum Temperature Sensed

-50°C

Maximum Temperature Sensed

+200°C

Number Of Wires

4

COO (Country of Origin):
DE

Endress+Hauser TM311 Itherm Compact Line


Compact Pt100 temperature sensor with IO-Link and 4 to 20 mA for general and sterile applications

The iTHERM CompactLine TM311 is a thermometer that provides accurate and fast process temperature measurements in hygienic and aseptic applications. It is available with a common Pt100 RTD or a Pt100 RTD with TipSens technology reaching response times as low as 1.5 s (t90) for optimum process control. The sensor is very accurate even with short immersion lengths.

IP69 protection rated
Marine approval according to DNV GL

Features & Benefits


Version with iTHERM TipSens offers best-in-class response times with a T90 time of 1.5 seconds
Version with iTHERM TipSens ensures a highly accurate measurement for short immersion lengths for example in small pipelines in the food and beverages industry
Fast installation and easy commissioning thanks to compact dimensions for installation in tight spaces
4…20mA and IO-Link in one device. Perfect to save costs for stock
