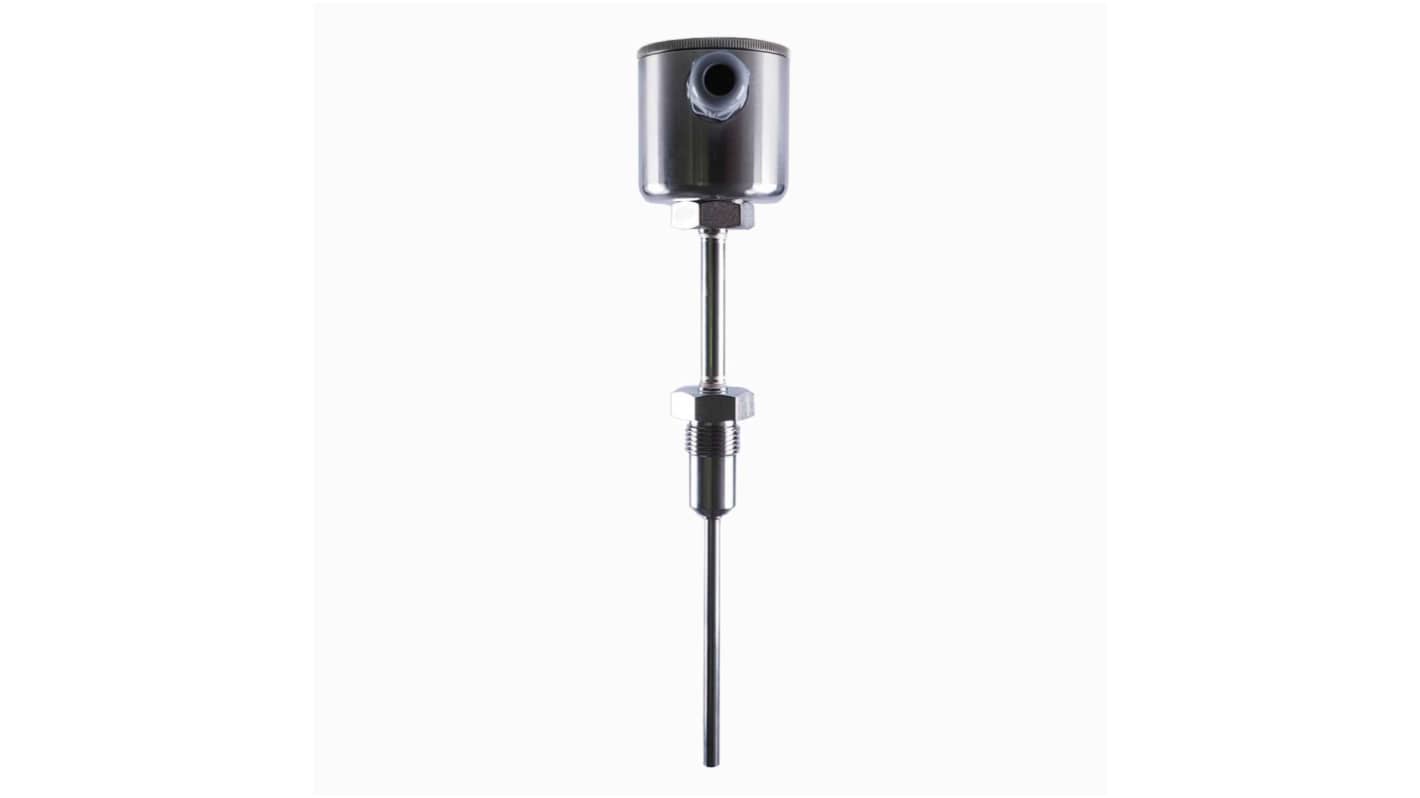

Jumo PT100 Temperature Probe, 6mm Dia, 100mm Long, 3 Wire, Class B

모든 RTD Sensors 열람하기

Subtotal (1 unit)*

₩411,964.40

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 1월 02일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩411,964.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
279-713
제조사 부품 번호:
902810/20-1001-2-6-100-380-24/452
제조업체:
Jumo
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Jumo

Sensor Type

PT100

Probe Length

100mm

Probe Diameter

6mm

Number Of Wires

3

Accuracy

Class B

COO (Country of Origin):
DE
The Jumo Screw in resistance thermometer allows, due to the temperature dependence of the electrical resistance of its built-in platinum sensor, temperature measurements in gaseous and liquid media. The part in contact with the medium is electrolytically polished. The process connection is a stainless steel screw connection with G 1/2 inch thread with CIP-compliant sealing cone with EHEDG certification. The resistance thermometer is therefore particularly suitable for the most diverse requirements of the food and pharmaceutical industries. The 1x P100 resistance thermometer in 3-wire circuit according to DIN EN 60751 is designed for temperatures from -50 to +250 °C and corresponds to tolerance class A.

The connection head is made of stainless steel 1.4571 and withstands temperatures from -20 to +100 °C
The protection tube with the dimensions 6 x 100 mm is made of stainless steel 316Ti
